Toyota CROWN (CHINA) — WINDSHIELD WASHER

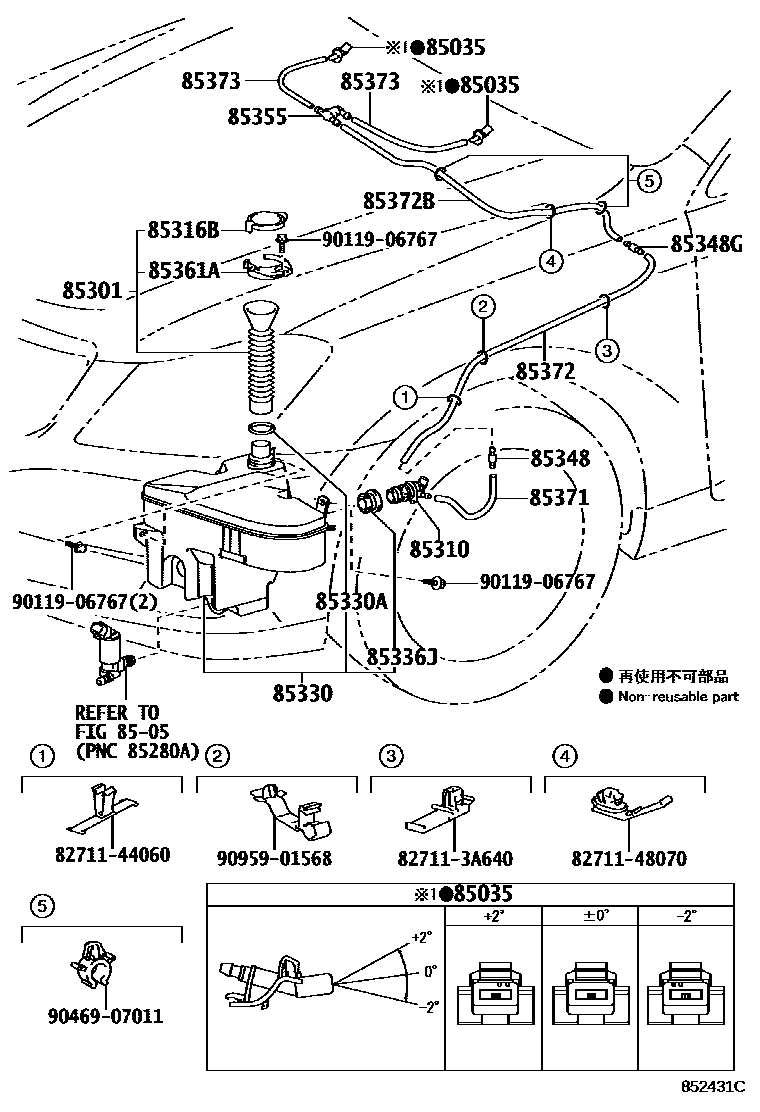

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-12300×2i201207
ANGLE 0
main85381-12310×2i200912-201207
ANGLE -2
main85381-12320×2i201207
ANGLE +2
8505HEADLAMP CLEANER
→ Go to FIG 85-05
85301INLET SUB-ASSY, WASHER
main85318-0N010i201207
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-21010i200912-201207
85316BCAP, WASHER, INLET
main85316-0N010i200912-201207
85330JAR ASSY, WINDSHIELD WASHER
main85315-0N010i200912-201207
85330ABUSH, WINDSHIELD WASHER JAR
main90068-14028i200912-201207
85336JPROTECTOR, WASHER JAR
main85336-0N010i201207
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-89122i200912-201207
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85349-89122i200912-201207
85355VALVE, WINDSHIELD WASHER HOSE
main85321-28020i200912-201207
85361ABRACKET, WINDSHIELD WASHER, NO.1
main85337-0N010i200912-201207
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-62028i200912-201207
L=150
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90068-33128i200912-201207
L=1516
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90068-33129i200912-201207
L=640
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90068-33130×2i200912-201207
L=330
827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A640
8271144060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-44060
8271148070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48070
9011906767
main90119-06767
9046907011
main90469-07011
9095901568
main90959-01568

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CROWN (CHINA)

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CROWN (CHINA). Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, CAP, WASHER, INLET.
