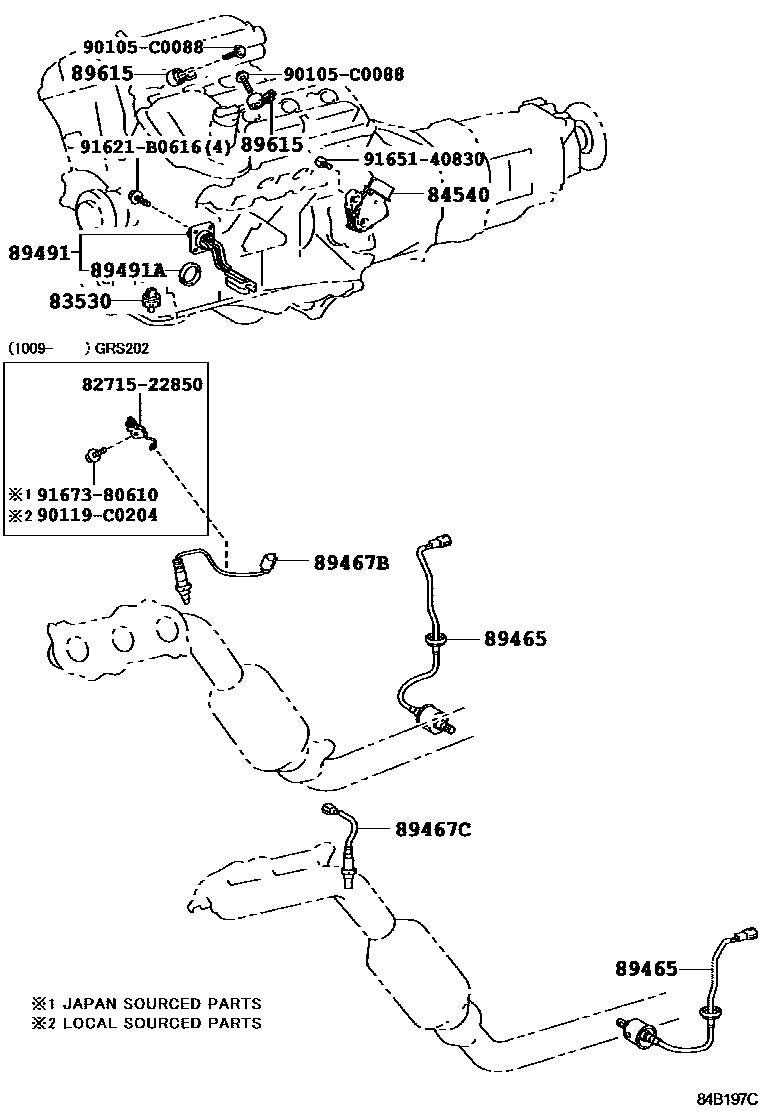

Toyota CROWN (CHINA) — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 1/2 0007 1INSTRUMENT PANEL 2/2 0008 1STEERING 0009 1FRONT SEAT 0010 1REAR SEAT 0011 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iUZS200200912-201104

main83530-60020iGRS20#200912-201207

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-71010iGRS20#,UZS200200912-201207

89465SENSOR, OXYGEN

main89465-0P010×2iGRS20#200912-201009

main89465-0P020×2iGRS20#201009-201207

main89465-30A40iUZS200200912-201207

89467BSENSOR, AIR FUEL RATIO

main89467-22040iGRS208201207

main89467-22050iGRS202201207

main89467-30030iGRS208200912-201009

main89467-30040iGRS202200912-201009

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-22040iGRS20#201009-201207

main89467-30030iGRS20#200912-201009

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGRS20#200912-201110

main89491-30061iGRS20#201111-201207

main89491-50030iUZS200200912-201207

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGRS20#,UZS200200912-201207

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRS20#,UZS200200912-201207

8271522850BRACKET,WIRING HARNESS CLAMP

main82715-22850

90105C0088

main90105-C0088

90119C0204

main90119-C0204

91621B0616

main91621-B0616

9165140830

main91651-40830

9167380610

main91673-80610

14 parts on this diagram · 11 diagrams in section
