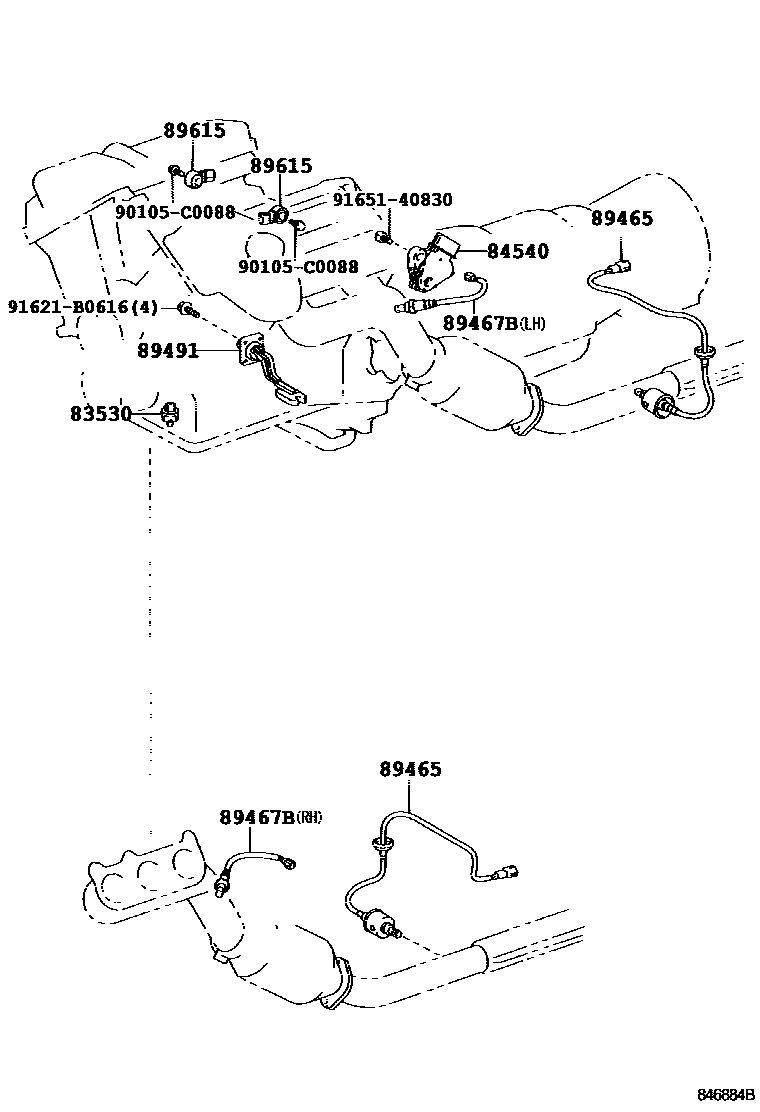

Toyota CROWN (CHINA) — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 1/2 0006 1INSTRUMENT PANEL 2/2 0007 1IGNITION & COMBINATION SWITCH0008 1SEAT & REAR ARM REST 0009 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRS18#200502

84540SWITCH ASSY, NEUTRAL START

main84540-30320iGRS182200502-200911

main84540-71010iGRS188200510-200911

89465SENSOR, OXYGEN

main89465-0N020×2iGRS182200502-200510

main89465-0N040×2iGRS18#200510-200710

main89465-0P010×2iGRS18#200710

89467BSENSOR, AIR FUEL RATIO

main89467-22020×2iGRS188200706-200710

RH & LH

main89467-30010×2iGRS188200502-200706

RH & LH

main89467-30030×2iGRS182200710

RH & LH

main89467-30040iGRS182200710

RH

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGRS18#200502

sub89491-30061

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRS18#200502

90105C0088

main90105-C0088

91621B0616

main91621-B0616

9165140830

main91651-40830

9 parts on this diagram · 9 diagrams in section
