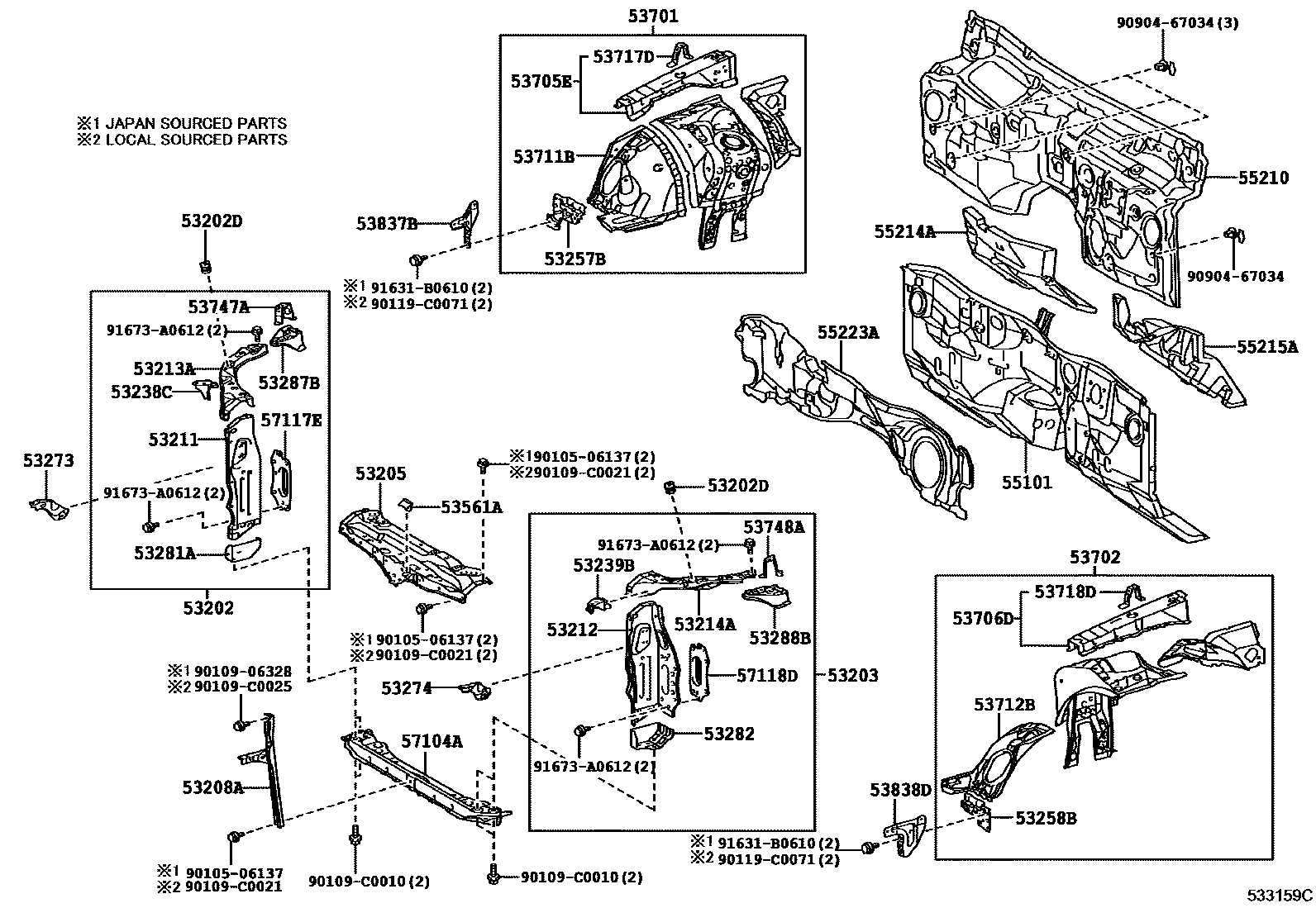

Toyota CROWN (CHINA) — FRONT FENDER APRON & DASH PANEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0N020i200912-201207

53202DCUSHION, RADIATOR SUPPORT

main53384-50010×2i200912-201207

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0N020i200912-201207

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0N010i200912-201207

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0N030i200912-201207

main53208-0N050i201207

53211SUPPORT, RADIATOR, RH

main53211-0N010i200912-201207

53212SUPPORT, RADIATOR, LH

main53212-0N010i200912-201207

53213ASUPPORT, RADIATOR, UPPER RH

main53213-0N010i200912-201207

53214ASUPPORT, RADIATOR, UPPER LH

main53214-0N010i200912-201207

53238CBRACKET, HOOD BUMPER MOUNTING, RH

main53238-0N010i200912-201207

53239BBRACKET, HOOD BUMPER MOUNTING, LH

main53239-0N010i200912-201207

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-0N010i200912-201207

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-0N010i200912-201207

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-0N010i200912-201207

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-0N010i200912-201207

53281AREINFORCEMENT, FRONT BODY MOUNTING, RH

main53281-0N010i200912-201207

53282REINFORCEMENT, FRONT BODY MOUNTING, LH

main53282-0N010i200912-201207

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-0N010i200912-201207

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-0N010i200912-201207

53561AGUIDE, HOOD AUXILIARY CATCH HOOK

main53561-30010i200912-201207

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0N030i200912-201207

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0N030i200912-201207

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-0N020i200912-201207

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-0N020i200912-201207

53711BAPRON, FRONT FENDER, FRONT RH

main53711-0N010i200912-201207

53712BAPRON, FRONT FENDER, FRONT LH

main53712-0N010i200912-201207

53717DGUSSET, FENDER APRON, RH

main53717-0N010i200912-201207

53718DGUSSET, FENDER APRON, LH

main53717-0N010i200912-201207

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-0N010i200912-201207

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-0N010i200912-201207

53837BBRACKET, FRONT SIDE PANEL, NO.2

main53837-0N010i200912-201207

53838DBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-0N010i200912-201207

55101PANEL SUB-ASSY, DASH

main55101-0P010i200912-201008

main55101-0P020i201009-201207

55210INSULATOR ASSY, DASH PANEL

main55210-0N020i200912-201207

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-0N011i200912-201207

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-0P010i200912-201207

55223AINSULATOR, DASH PANEL, OUTER

main55223-0N010i200912-201207

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-0P010i200912-201207

57117ERETAINER, FRONT BUMPER ARM, RH

main57117-0P010i200912-201207

57118DRETAINER, FRONT BUMPER ARM, LH

main57118-0P010i200912-201207

9010506137

main90105-06137

9010906328

main90109-06328

90109C0010

main90109-C0010

90109C0021

main90109-C0021

90109C0025

main90109-C0025

90119C0071

main90119-C0071

9090467034

main90904-67034

91631B0610

main91631-B0610

91673A0612

main91673-A0612

49 parts on this diagram · 2 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota CROWN (CHINA)

This section contains 65 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CROWN (CHINA). Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, GUIDE, RADIATOR GRILLE SIDE AIR, RH, GUIDE, RADIATOR GRILLE SIDE AIR, LH, SUPPORT SUB-ASSY, RADIATOR, RH, CUSHION, RADIATOR SUPPORT.
