Toyota CROWN (CHINA) — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55355DCUSHION, INSTRUMENT PANEL, NO.1
55356DCUSHION, INSTRUMENT PANEL, NO.2
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
MARK=FY
MARK=ASAHI
MARK=FY
MARK=ASAHI
MARK=CCC E000970
MARK=CCC E000011
MARK=CCC E000970
MARK=CCC E000011
MARK=CCC E006888
MARK=CCC E006888
MARK=CCC E006888
MARK=CCC E000011
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
L=2830
56118CRETAINER, WINDSHIELD GLASS, NO.2
56119SEAL, WINDSHIELD GLASS
56165COVER, FRONT WINDOW INNER MOULDING, LH
GLASS MARK=ASAHI
GLASS MARK=FY
5701HOLE PLUG
75533GMOULDING, WINDSHIELD, OUTSIDE
GLASS MARK=FY
GLASS MARK=ASAHI
90467C0040
main90467-C0040

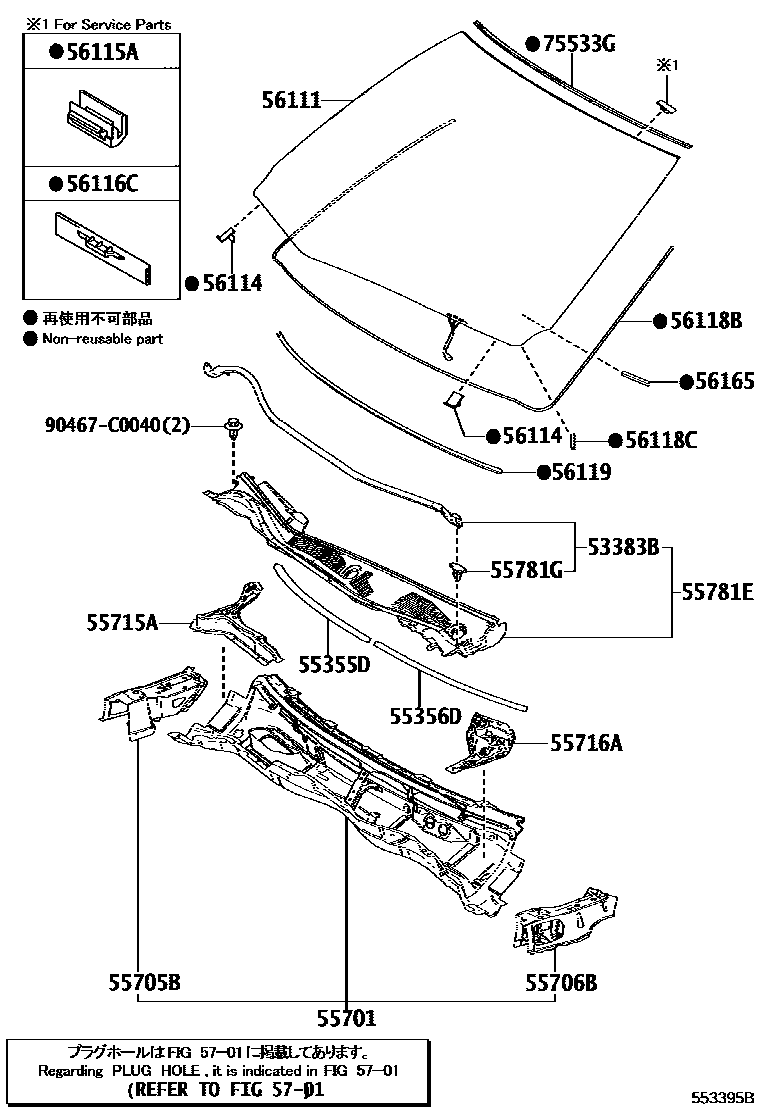

21 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota CROWN (CHINA)
This section contains 21 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CROWN (CHINA). Key components include: SEAL, HOOD TO COWL TOP, CUSHION, INSTRUMENT PANEL, NO.1, CUSHION, INSTRUMENT PANEL, NO.2, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH.
