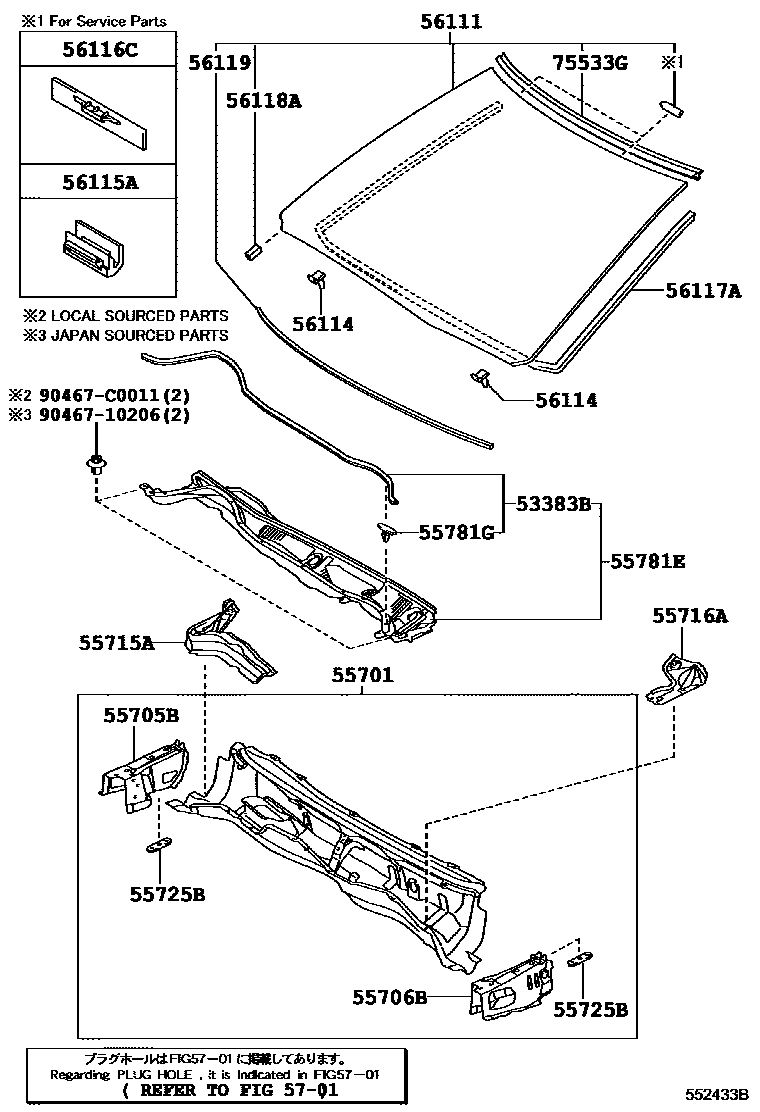

Toyota CROWN (CHINA) — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0N030i201207

55701PANEL SUB-ASSY, COWL

main55700-0N020i200912-201207

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0N020i200912-201207

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0N020i200912-201207

55715ABRACE, COWL TOP TO APRON, RH

main55715-0N020i200912-201207

55716ABRACE, COWL TOP TO APRON, LH

main55716-0N020i200912-201207

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2i200912-201207

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0N020i200912-201207

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×12i200912-201207

56111GLASS, WINDSHIELD

main56101-0N050i201207

*LAM,T=5.36,GREEN

main56101-0N060i200912-201207

*LAM,T=5.36,GREEN

main56101-0N080i200912-201207

*LAM,T=5.36,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-0N010×2i201110-201207

main56114-22050×2i200912-201109

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-0N010i201110-201207

main56115-30110i200912-201109

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i201207

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0N020i200912-201207

L=2894

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-30100i200912-201207

L=25

56119SEAL, WINDSHIELD GLASS

main56119-0N010i200912-201207

5701HOLE PLUG

→ Go to FIG 57-01

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-30380i200912-201207

9046710206

main90467-10206

90467C0011

main90467-C0011

20 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CROWN (CHINA)

This section contains 20 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CROWN (CHINA). Key components include: SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH, BRACE, COWL TOP TO APRON, RH.
