Toyota CROWN (CHINA) — COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-0N011i200502

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90080-46318×17i200502

55700PANEL ASSY, FRONT

main55700-0N010i200502-200911

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0N010i200502

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0N010i200502

55715ABRACE, COWL TOP TO APRON, RH

main55715-0N010i200502-200911

55716ABRACE, COWL TOP TO APRON, LH

main55716-0N010i200502-200911

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2i200502

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0N010i200502

56111GLASS, WINDSHIELD

main56101-0N010i200502-200911

*LAM,T=5.36,GREEN

56112DAM, WINDOW GLASS ADHESIVE, NO.2

main56112-0N010i200502

56114RETAINER, WINDSHIELD GLASS

main56114-50020×2i200502

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110×2i200502

56116SPACER, WINDSHIELD GLASS

main56116-22050×2i200502

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-0N010i200502

L=3309

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-30080i200502

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9026903037

main90269-03037

9046710206

main90467-10206

19 parts on this diagram · 1 diagram in section

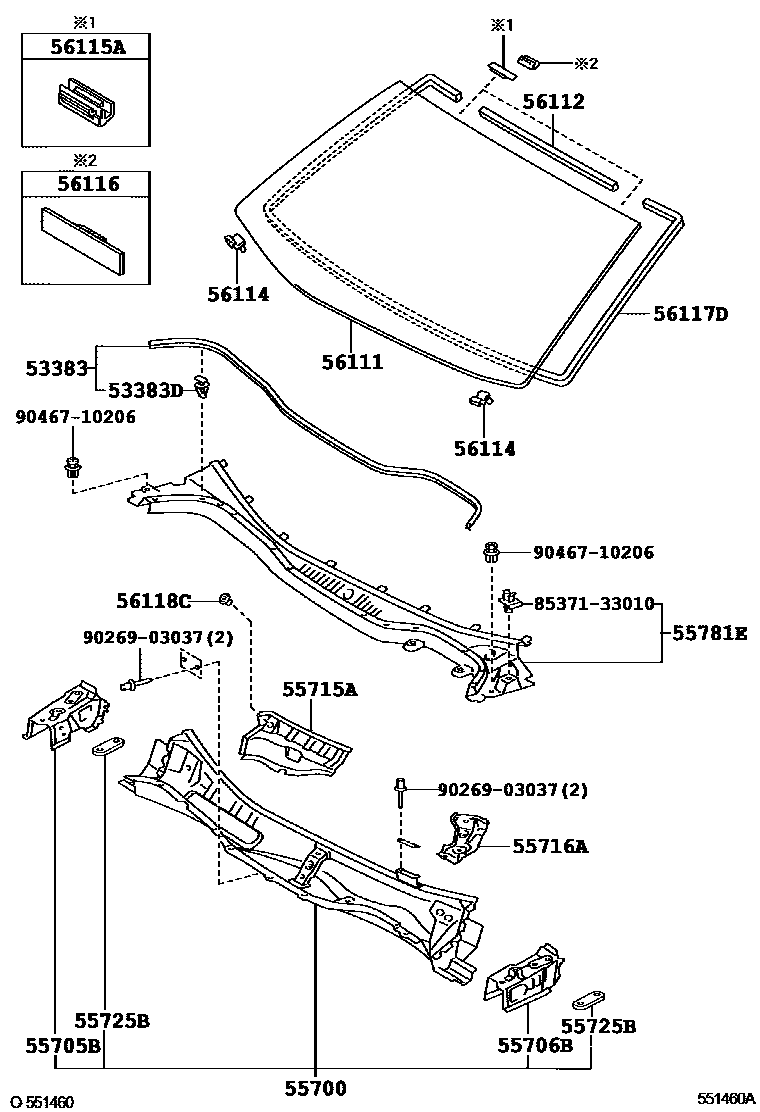

COWL PANEL & WINDSHIELD GLASS for Toyota CROWN (CHINA)

This section contains 19 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CROWN (CHINA). Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), PANEL ASSY, FRONT, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH.
