Toyota CROWN (CHINA) — CONSOLE BOX & BRACKET

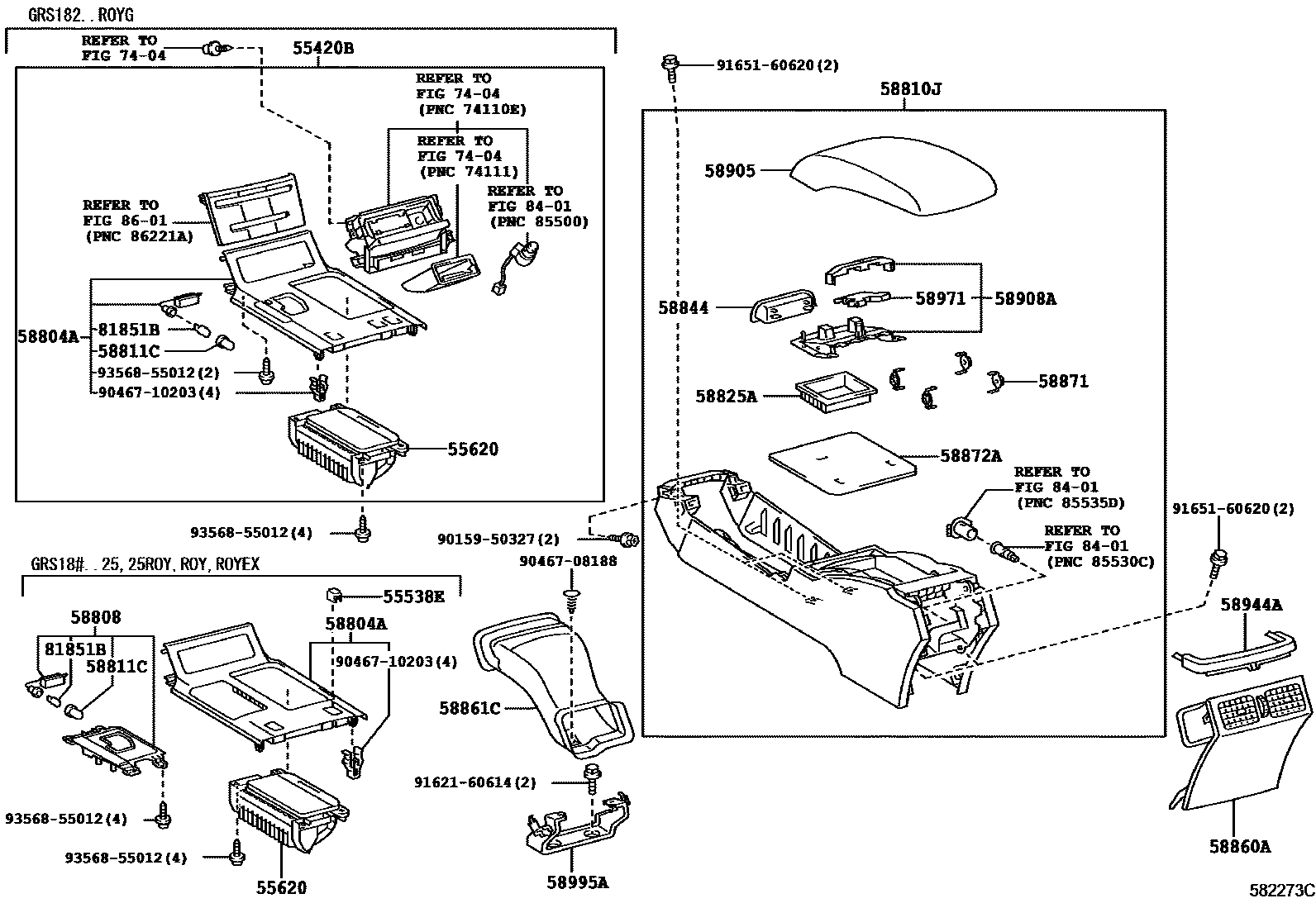

Parts diagram
55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1
main55420-0N010-B0i200502-200911
DK.GRAY,TRIM2#
main55420-0N010-E0i200502-200911
LT.BROWN,TRIM0#
55538ECOVER, SPARE SWITCH HOLE
main55539-0N020-B0i200510-200911
GRAY,TRIM2#
main55539-0N020-E0i200510-200911
LT.BROWN,TRIM0#
55620HOLDER ASSY, INSTRUMENT PANEL CUP
main55620-0N010-B0i200502-200911
GRAY,TRIM2#
main55620-0N010-E0i200502-200911
LT.BROWN,TRIM0#
main55620-0N010-J0i200710-200911
BLUE GRAY,TRIM20,TRIM = LB**
main55620-0N020-B0i200502-200911
DK.GRAY,TRIM2#
main55620-0N020-E0i200502-200911
LT.BROWN,TRIM0#
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-0N010-B0i200502-200911
GRAY,TRIM2#
main58804-0N010-E0i200502-200911
LT.BROWN,TRIM0#
main58804-0N010-J0i200710-200911
BLUE GRAY,TRIM20,TRIM = LB**
main58804-0N020-B0i200502-200911
DK.GRAY,TRIM2#
main58804-0N020-E0i200502-200911
LT.BROWN,TRIM0#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-0N010-B0i200710-200911
GRAY,TRIM20,TRIM = FA**,LA**
main58808-0N010-E0i200502-200911
LT.BROWN,TRIM0#
main58808-0N010-J0i200710-200911
BLUE GRAY,TRIM20,TRIM = LB**
58810JBOX ASSY, CONSOLE
main58810-0N010-A0i200502-200911
IVORY,TRIM0#
main58810-0N010-C0i200502-200911
BLACK,TRIM2#
58811CCAP(FOR CONSOLE)
main90339-04055i200502
58825APOCKET, CONSOLE BOX
main58825-0N010i200502
58844BEZEL, CONSOLE BOX
main58844-0N010-A0i200502-200911
IVORY,TRIM0#
main58844-0N010-C0i200502-200911
BLACK,TRIM2#
58860AREGISTER ASSY, CONSOLE BOX
main58860-0N010-A0i200502-200911
IVORY,TRIM0#
main58860-0N010-C0i200502-200911
BLACK,TRIM2#
58861CDUCT, CONSOLE BOX, NO.1
main58861-0N010i200502
58871CUSHION, CONSOLE BOX
main58871-0N010×4i200502
58872ACUSHION, CONSOLE BOX, NO.2
main58872-30040i200502
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-0N010-A0i200502-200911
IVORY,TRIM0#
main58905-0N010-C0i200502-200911
BLACK,TRIM2#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-0N010-A0i200502-200911
IVORY,TRIM0#
main58908-0N010-C0i200502-200911
BLACK,TRIM2#
58944ACOVER, CONSOLE, REAR
main58944-0N010-B0i200502-200710
GRAY,TRIM2#
main58944-0N010-E0i200502-200911
LT.BROWN,TRIM0#
main58944-0N010-J0i200710-200911
BLUE GRAY,TRIM20,TRIM = LB**
main58944-0N020-B0i200502-200911
DK.GRAY,TRIM2#
main58944-0N020-E0i200502-200911
LT.BROWN,TRIM0#
58971LOCK, CONSOLE COMPARTMENT DOOR
main58971-0N010-A0i200502-200911
IVORY,TRIM0#
main58971-0N010-C0i200502-200911
BLACK,TRIM2#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-30200i200502
7404ASH RECEPTACLE
→ Go to FIG 74-04
81851BBULB (FOR INDICATOR LAMP)
main90981-11014i200502
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
→ Go to FIG 86-01
9015950327
main90159-50327
9046708188
main90467-08188
9046710203
main90467-10203
9162160614
main91621-60614
9165160620
main91651-60620
9356855012
main93568-55012

28 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota CROWN (CHINA)

This section contains 28 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CROWN (CHINA). Key components include: PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1, COVER, SPARE SWITCH HOLE, HOLDER ASSY, INSTRUMENT PANEL CUP, PANEL SUB-ASSY, CONSOLE, UPPER, COVER SUB-ASSY, SHIFTING HOLE.
