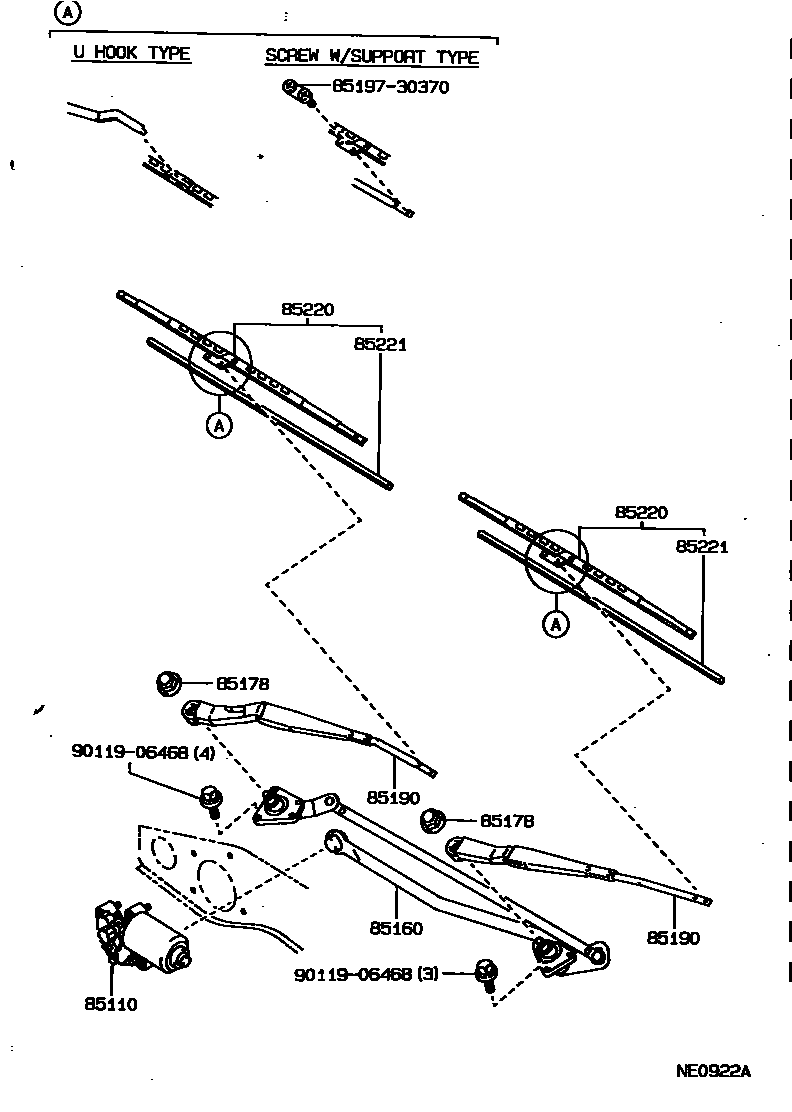

Toyota CRESTA — WINDSHIELD WIPER

0001 1 0002 1WINTER BLADE

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-22420iLX80,SX80,YX80..KYO198808-198909

main85110-22421iLX80,SX80,YX80..KYO198909-199210

main85110-22430iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-198909

main85110-22431iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198909-199210

main85110-22490iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-198909

main85110-22491iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198909-199008

main85110-22510iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

85160LINK ASSY, WINDSHIELD WIPER

main85160-22400iLX80,SX80,YX80..KYO198808-199210

main85160-22410iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-198909

main85160-22411iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198909-199210

main85160-22430iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-198909

main85160-22431iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198909-198911

main85160-22432iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198911-199210

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08040×2iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub90176-08051

85190ARM ASSY, WINDSHIELD WIPER

main85190-22660iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198812-199006

RH,SCREW TYPE

main85190-22661iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199006-199008

RH,U HOOK TYPE

main85190-22670iGX81,LX80,SX80..GT,SCM,SDX,SLT,SLTG198808-198812

RH,SCREW TYPE

main85190-22690iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199008

main85190-91606iLX80,SX80,YX80..KYO198808-199008

sub85211-22360

main85210-22260iLX80,SX80,YX80..KYO198808-199008

main85210-22270iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199006

LH,SCREW TYPE

sub85210-22290

main85210-22271iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199006-199008

LH,U HOOK TYPE

main85210-22280iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199005

main85211-22370iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

main85211-22390iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199009

main85211-22391iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199009-199210

main85211-23060iLX80,SX80,YX80..KYO199008-199210

sub85211-22360

main85211-23070iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

sub85211-22360

main85221-22230iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199005-199008

sub85221-22280

main85221-22231iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

main85221-22240iLX80,SX80,YX80..KYO199008-199210

main85221-22250iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

sub85221-22300

main85221-22290iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

85220BLADE ASSY, WINDSHIELD WIPER

main85212-22360iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199006-199008

RH,U HOOK TYPE

main85212-22380iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

sub85212-32241

main85212-23060iLX80,SX80,YX80..KYO199008-199210

sub85212-22370

main85220-16580iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199003

main85220-16800iLX80,SX80,YX80..KYO198808-198909

main85220-16801iLX80,SX80,YX80..KYO198909-199008

main85220-16870iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-198909

main85220-16871iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198909-199008

sub85222-23040

main85220-1A010iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-198909

LH,SCREW TYPE

main85220-1A011iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198909-199006

LH,SCREW TYPE

sub85222-23060

main85220-1A030iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

sub85291-33010

main85220-1A040iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

main85220-32720iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199003

main85220-32770iLX80,SX80,YX80..KYO198808-198909

main85220-32771iLX80,SX80,YX80..KYO198909-199008

main85220-32830iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-198909

main85220-32831iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198909-199008

sub85212-22370

main85220-32880iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

sub85291-22050

sub85291-22070

main85220-3A020iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-198909

RH,SCREW TYPE

main85220-3A021iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198909-199006

RH,SCREW TYPE

main85220-3A040iLX80,SX80,YX80..KYO199008-199210

sub85291-22050

main85222-22690iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199006-199008

LH,U HOOK TYPE

main85222-22710iLX80,SX80,YX80..KYO199008-199210

main85222-22720iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199112

sub85222-23070

main85222-22730iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199112-199210

sub85222-23070

main85291-16010iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199003-199008

main85291-30030iLX80,SX80,YX80..KYO199205-199210

sub85291-22080

main85291-32040iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199003-199008

85221BLADE, WINDSHIELD WIPER

main85213-18010iGX81,LX80,MX83,SX80,YX80198912-199006

sub85214-27H90

main85213-22360iGX81,LX80,MX83,SX80,YX80198909-198912

main85213-32080iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199006-199112

main85213-32240iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199112-199210

sub85213-20310

main85221-22130iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-198909

main85221-22131iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198909-198912

main85221-22140iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-198909

main85221-22141iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198909-198912

main85221-22210iGX81,LX80,MX83,SX80,YX80198808-198909

main85221-22220iGX81,LX80,MX83,SX80,YX80198808-198909

main85223-22690iGX81,LX80,MX83,SX80,YX80198909-198912

main85223-22700iGX81,LX80,MX83,SX80,YX80198912-199006

sub85221-40040

main85223-22710iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199006-199112

main85223-22730iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199112-199210

sub85214-20320

8519730370

main85197-30370

9011906468

main90119-06468

8 parts on this diagram · 2 diagrams in section
