Toyota CRESTA — WINDSHIELD WASHER

0001 1 0002 1 0003 1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100iGX5#,TX50198003-198105

main85310-22080iGX5#,61,LX60,MX51,61,SX60,TX50198105-198407

85345NOZZLE, WINDSHIELD WASHER

main85341-22130×2iGX5#,MX51,TX50198003-198208

main85341-22131×2iGX61,LX60,MX61,SX60198208-198407

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85031-14080iLX60..5F..CTM198308-198407

2 WAY,W/NX120-7L BATTERY

sub85031-12250

main85355-14010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

3WAY

sub85348-12250

main85355-87201iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

2WAY

sub85349-89122

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main90446-07001iLX60..5F..CTM198308-198407

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iLX60..5F..CTM198308-198407

main90446-07001iGX5#,MX51,TX50198003-198208

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299iLX60..5F..CTM198308-198407

main90445-07073iMX51198110-198208

L=650

main90446-06013iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

8537222010HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-22010

9046400248

main90464-00248

9161160610

main91611-60610

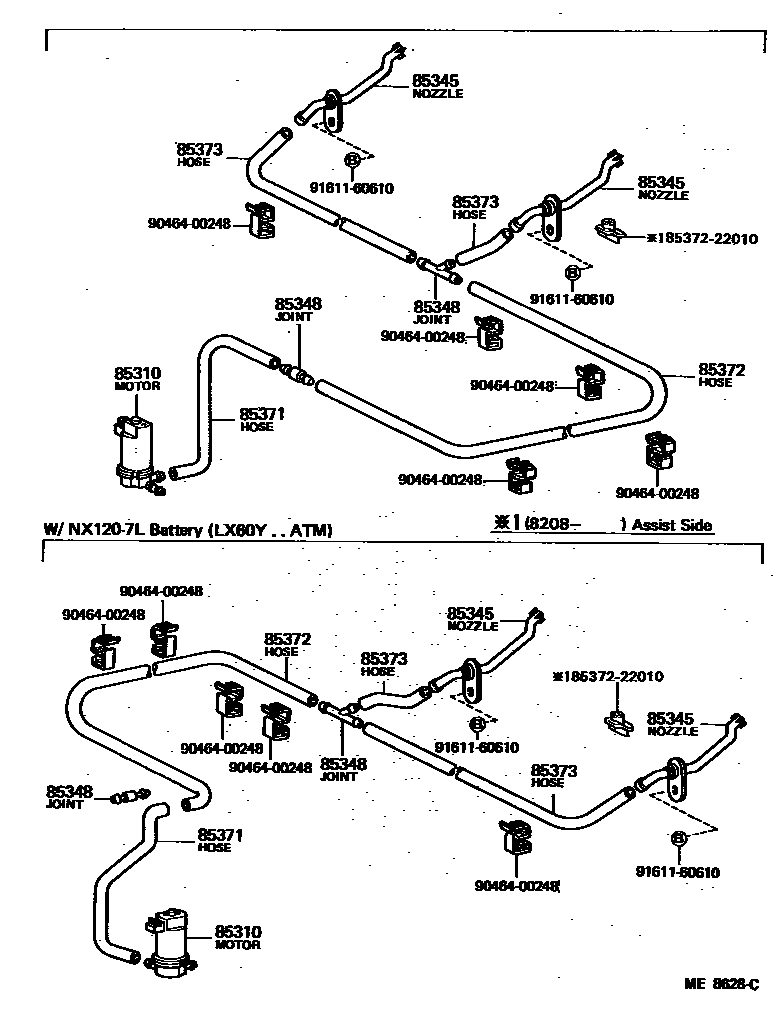

9 parts on this diagram · 3 diagrams in section
