Toyota CRESTA — VENTURI

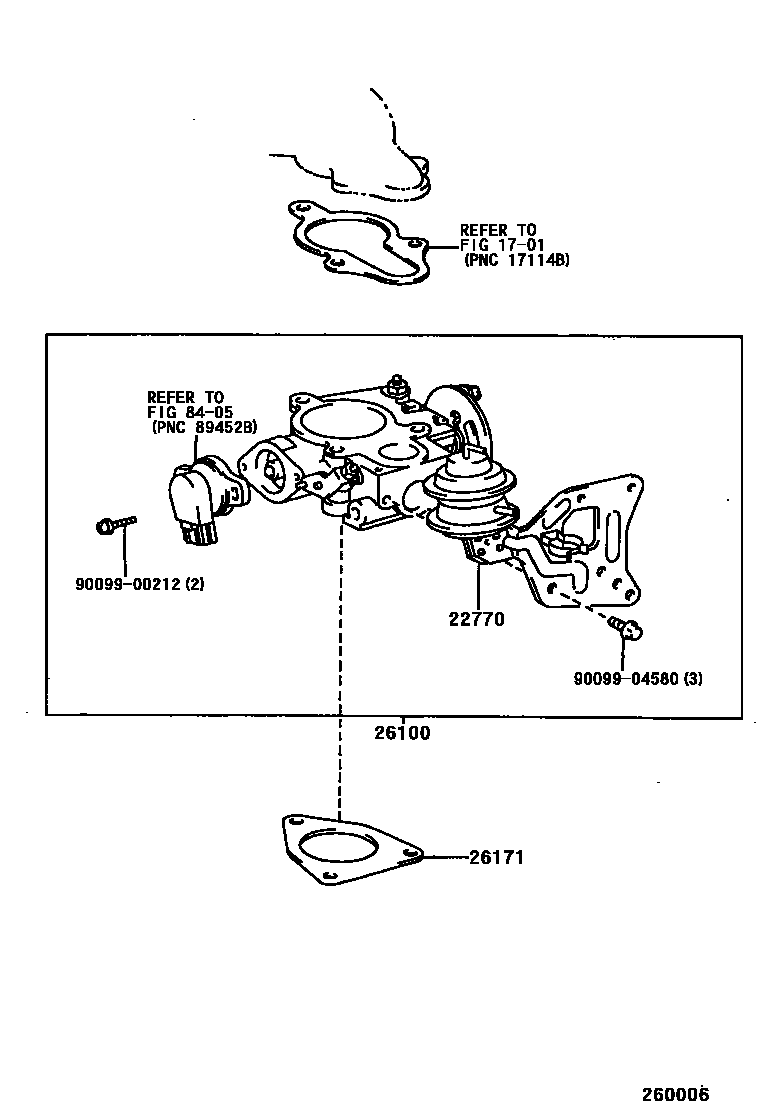

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

22770ACTUATOR, IDEL UP

main26133-54220i199609-199908

26100VENTURI ASSY

main26100-54220i199609-199708

main26100-54221i199708-199908

26171GASKET, VENTURI

main17116-54021i199609-199908

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9009900212

main90099-00212

9009904580

main90099-04580

7 parts on this diagram · 2 diagrams in section

VENTURI for Toyota CRESTA

This section contains 9 genuine Toyota parts for the VENTURI system of the Toyota CRESTA. Key components include: MANIFOLD, VACUUM PIPING, ACTUATOR, IDEL UP, VENTURI ASSY, GASKET, VENTURI.
