Toyota CRESTA — VENTURI

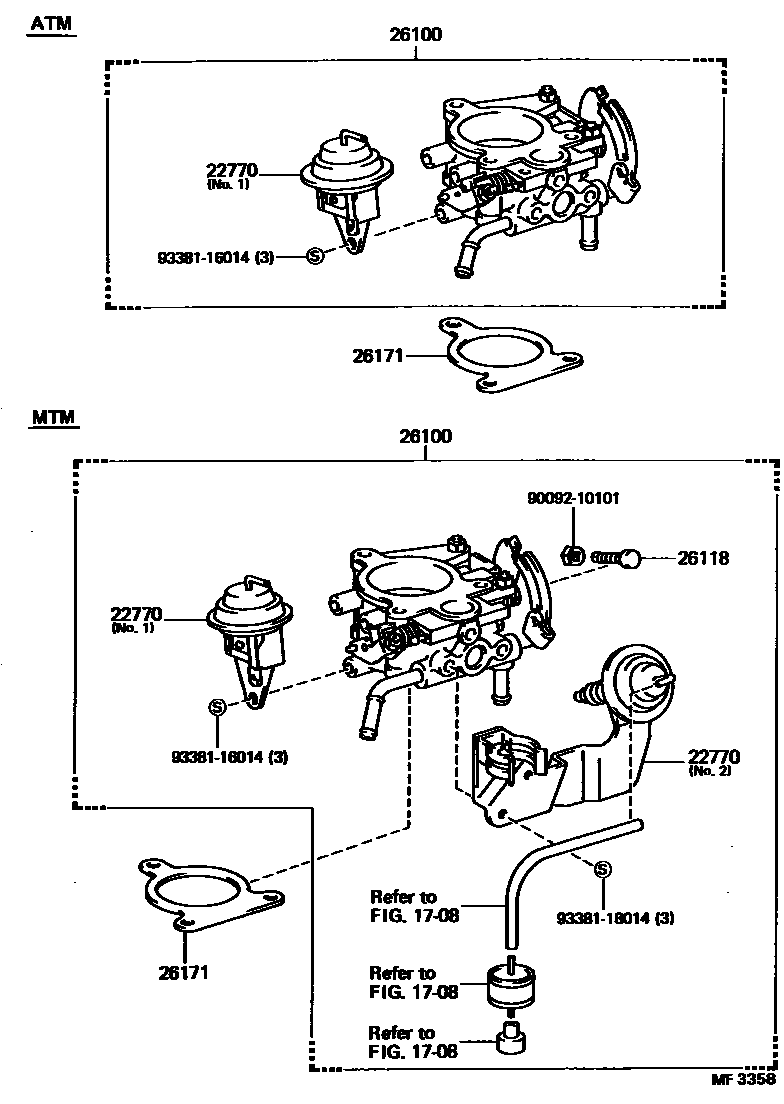

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

22770ACTUATOR, IDEL UP

main26133-54040i198408-198709

NO.2

main26133-54051i198408-198508

NO.1

main26133-54080i198709-198808

main26133-54090i198709-198808

26100VENTURI ASSY

main26100-54060i198408-198508

main26100-54061i198508-198709

main26100-54070i198408-198508

main26100-54071i198508-198808

main26100-54130i198709-198808

26118SCREW, STOP PLATE ADJUSTING

main26118-54030i198408-198709

26171GASKET, VENTURI

main26171-54010i198408-198709

9009210101

main90092-10101

9338116014

main93381-16014

9338118014

main93381-18014

8 parts on this diagram · 2 diagrams in section

VENTURI for Toyota CRESTA

This section contains 8 genuine Toyota parts for the VENTURI system of the Toyota CRESTA. Key components include: VACUUM PIPING, ACTUATOR, IDEL UP, VENTURI ASSY, SCREW, STOP PLATE ADJUSTING, GASKET, VENTURI.
