Toyota CRESTA — TRACTION CONTROL

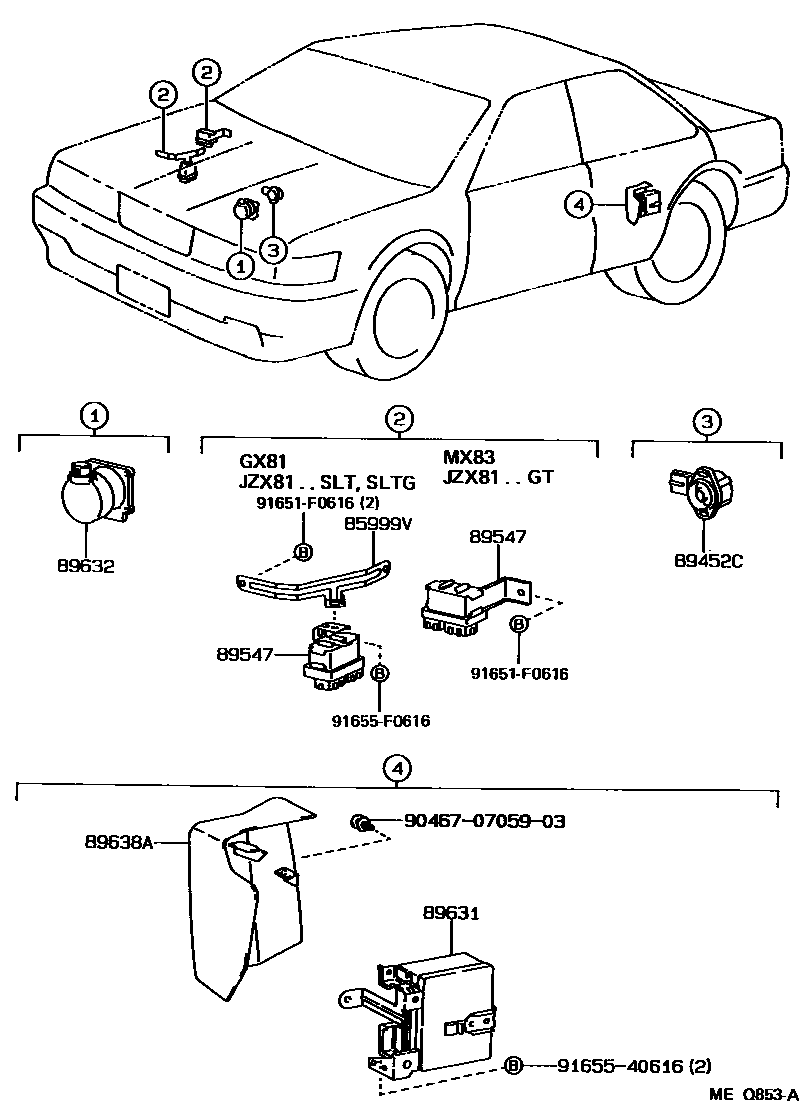

Parts diagram

85999VBRACKET, RELAY

main85999-22350i198908-199210

89452CSENSOR, THROTTLE POSITION

main89452-12040i198908-199008

main89452-14050i198908-199210

main89452-22090i199008-199210

89547RELAY, TRACTION CONTROL W/BRACKET

main89547-22020i198908-199210

main89547-22030i198908-199210

main89547-22040i199008-199210

89631COMPUTER, TRACTION CONTROL

main89631-22010i198908-199008

main89631-22020i198908-199008

main89631-22030i199008-199210

89632MOTOR, TRACTION THROTTLE VALVE

main89632-22010i198908-199008

main89632-22020i199008-199210

main89632-22030i199008-199210

main89632-30020i198908-199210

89638ACOVER, TRACTION CONTROL COMPUTER

main89638-22020i198908-199210

904670705903

main90467-0705903

91651F0616

main91651-F0616

9165540616

main91655-40616

91655F0616

main91655-F0616

10 parts on this diagram · 1 diagram in section

TRACTION CONTROL for Toyota CRESTA

This section contains 10 genuine Toyota parts for the TRACTION CONTROL system of the Toyota CRESTA. Key components include: BRACKET, RELAY, SENSOR, THROTTLE POSITION, RELAY, TRACTION CONTROL W/BRACKET, COMPUTER, TRACTION CONTROL, MOTOR, TRACTION THROTTLE VALVE.
