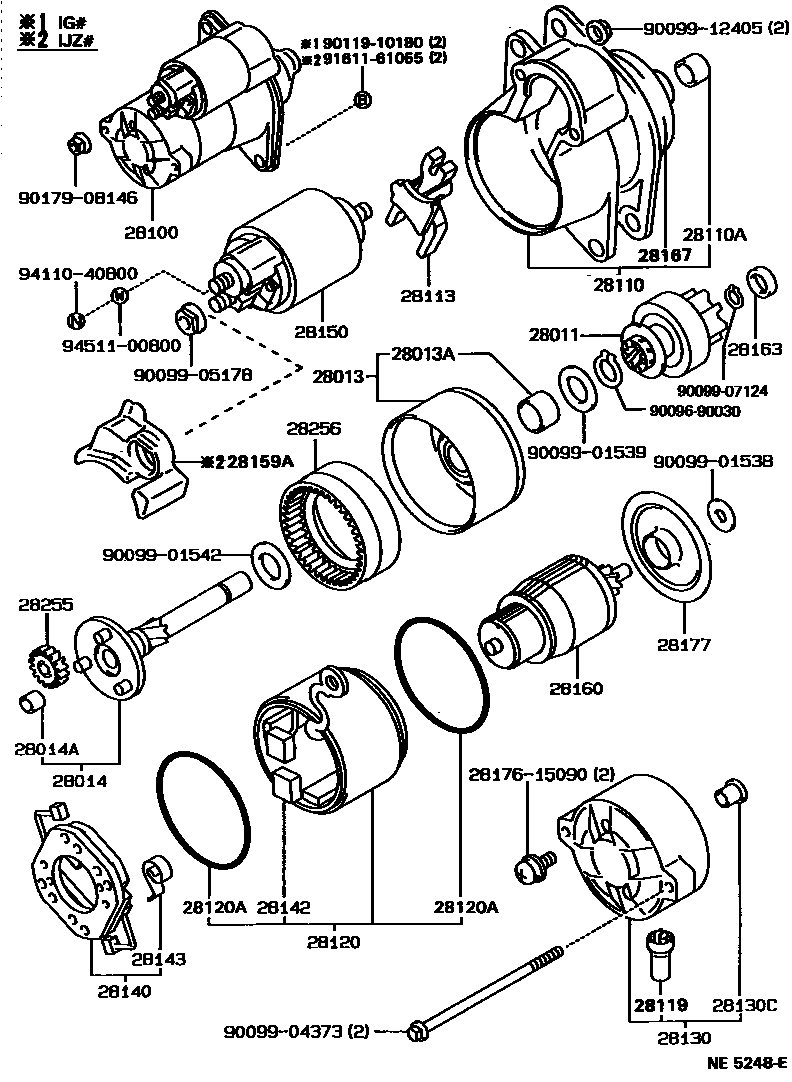

Toyota CRESTA — STARTER

0001 112V 0.8KW 0002 112V 1.0KW 0003 112V 2.0KW 0004 1 0005 1 0006 1 0007 112V 1.4KW 0008 112V 1.0KW 0009 112V 1.0KW 0010 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i1GFE,1GG#..GX81198808-199210

main28011-54010i2LT..LX80..4FC198808-199210

main28011-54070i2L#..LX80..5F198808-199210

main28011-70020i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

main28011-76070i1JZ#,7MGE..JZX81,MX83199008-199210

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

main28013-70020i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

sub28013-70030

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

main90099-10181i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-70020i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

main90099-10180i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

28100STARTER ASSY

main28100-15040i1GFE,1GG#..GX81198808-199210

main28100-41060i7MGE..MX83198908-199008

main28100-42040i7MGE..MX83199008-199210

sub28100-46100

main28100-45050i7MGE..MX83198908-199008

main28100-46080i1JZ#..JZX81199008-199210

main28100-46090i1JZ#,7MGE..JZX81,MX83199008-199210

sub28100-46100

main28100-54180i2L#..LX80..5F198808-199210

main28100-54190i2LT..LX80..4FC198808-199210

sub28100-54220

main28100-63050i4SF#..SX80..SCM198808-199210

main28100-70020i1GFE,1GG#..GX81198808-199210

main28100-72100i3YP..YX80198808-199210

main28100-72110i3YP..YX80198808-199210

main28100-74040i4SF#..SX80..KYO198808-199210

28110HOUSING ASSY, STARTER DRIVE

main28110-15040i1GFE,1GG#..GX81198808-199210

main28110-41060i7MGE..MX83198908-199008

main28110-42040i7MGE..MX83199008-199210

main28110-45050i7MGE..MX83198908-199008

main28110-46080i1JZ#..JZX81199008-199210

main28110-46090i1JZ#,7MGE..JZX81,MX83199008-199210

main28110-63050i4SF#..SX80198808-199210

main28110-70020i1GFE,1GG#..GX81198808-199210

main28110-72060i3YP..YX80198808-199210

main28110-72070i3YP..YX80198808-199210

main28115-54011i2LT..LX80..4FC198808-199210

main28115-54070i2L#..LX80..5F198808-199210

28110ABEARING(FOR STARTER HOUSING)

main90099-10171i1G#..GX81199008-199210

main90099-10182i1JZ#..JZX81199008-199210

28113LEVER, STARTER PINION DRIVE

main28113-70020i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

28119COVER, STARTER END FRAME

main28199-15090i7MGE..MX83198908-199008

main28199-46080i1G#,1JZ#..GX81,JZX81199008-199210

main28199-70020i1GFE,1GG#..GX81198808-198908

main28199-70021i1GFE,1GG#..GX81198908-199008

main28199-72020i3YP..YX80198808-199210

main28199-74110i1JZ#,7MGE..JZX81,MX83199106-199210

main28199-77090i2L#..LX80..5F198808-199008

28120YOKE ASSY, STARTER

main28120-15090i7MGE,3YP..MX83,YX80198808-199008

main28120-26071i1GFE,1GG#..GX81198808-199210

main28120-54070i2L#..LX80..5F198808-199210

main28120-56081i2LT..LX80..4FC198808-199210

main28120-70020i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

main28120-74070i1JZ#,7MGE..JZX81,MX83199008-199210

28120ARING, O(FOR STARTER YOKE)

main90099-14058i2L#..LX80..5F198808-199210

main90099-14064×2i1JZ#,7MGE,3YP..JZX81,MX83,YX80198808-199210

main90099-14092×2i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i4SF#..SX80..SCM198808-199210

main28130-15020i7MGE..MX83198908-199210

main28130-15040i1GFE,1GG#..GX81198808-199210

main28130-15090i7MGE..MX83198908-199008

main28130-15190i1JZ#..JZX81199008-199210

main28130-46090i1JZ#,7MGE..JZX81,MX83199008-199210

main28130-54060i2LT..LX80..4FC198808-199210

sub28130-54430

sub90099-04207

main28130-70020i1GFE,1GG#..GX81198808-199210

main28130-72020i3YP..YX80198808-199210

main28130-72050i3YP..YX80198808-199210

main28130-74040i4SF#..SX80..KYO198808-199210

28130CBEARING, STARTER FLANGE

main90099-10183i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i3YP..YX80199008-199210

main28140-26070i1GFE,1GG#..GX81198808-199210

main28140-54070i2L#..LX80..5F198808-199210

main28140-70020i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

main28140-76070i1JZ#,7MGE..JZX81,MX83199008-199210

main28140-77090i2LT..LX80..4FC198808-199210

28142BRUSH, STARTER

main28142-70020×2i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

28143SPRING, STARTER BRUSH

main28143-70020×4i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

main90099-17112×4i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

main90099-17115×4i2L#..LX80..5F198808-199210

28150SWITCH ASSY, MAGNET STARTER

main28150-15070i1GFE,1GG#..GX81198808-199210

main28150-41060i7MGE..MX83198908-199210

main28150-45050i7MGE..MX83198908-199008

main28150-46080i1G#,1JZ#..GX81,JZX81199008-199210

main28150-46090i1JZ#,7MGE..JZX81,MX83199008-199106

main28150-46120i1JZ#,7MGE..JZX81,MX83199106-199210

main28150-54070i2L#..LX80..5F198808-199210

sub28150-54110

main28150-54140i2LT..LX80..4FC198808-199210

sub28150-54190

main28150-63050i4SF#..SX80..SCM198808-199210

main28150-70020i1GFE,1GG#..GX81198808-199008

main28150-72020i3YP..YX80199008-199210

main28150-72050i3YP..YX80198808-199210

main28150-73010i3YP..YX80198808-199008

main28150-74040i4SF#..SX80..KYO198808-199210

28159ACOVER, MAGNET SWITCH

main28159-46080i1G#,1JZ#..GX81,JZX81199008-199206

28160ARMATURE ASSY, STARTER

main28160-15090i3YP..YX80199008-199210

main28160-15091i7MGE,3YP..MX83,YX80198908-199008

main28160-26070i4SFI..SX80..SCM198808-198908

main28160-26071i7MGE,4SF#..MX83,SX80..SCM,SLTG198908-199210

main28160-54070i2L#..LX80..5F198808-198908

main28160-54071i2L#..LX80..5F198908-199210

main28160-54140i2LT..LX80..4FC198808-199210

main28160-70020i1GFE,1GG#..GX81198808-198812

main28160-70021i1GFE,1GG#,1JZ#..GX81,JZX81198812-199210

main28160-72050i4SFI,3YP..SX80,YX80..KYO198808-198907

main28160-72051i4SF#,3YP..SX80,YX80..KYO198907-199210

main28160-74070i1JZ#,7MGE..JZX81,MX83199008-199210

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-70020i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

28167COVER, HOUSING

main28167-46080i1G#,1JZ#..GX81,JZX81199008-199206

28177PLATE(FOR STARTER ARMATURE)

main28177-70020i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

28255GEAR, PLANET

main28255-70020×3i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

28256GEAR, STARTER INTERNAL

main28256-70020i1GFE,1GG#,1JZ#..GX81,JZX81198808-199210

2817615090SCREW, STARTER

main28176-15090

9009690030

main90096-90030

9009901538

main90099-01538

9009901539

main90099-01539

9009901542

main90099-01542

9009904373

main90099-04373

9009905178

main90099-05178

9009907124

main90099-07124

9009912405

main90099-12405

9011910180

main90119-10180

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

39 parts on this diagram · 10 diagrams in section
