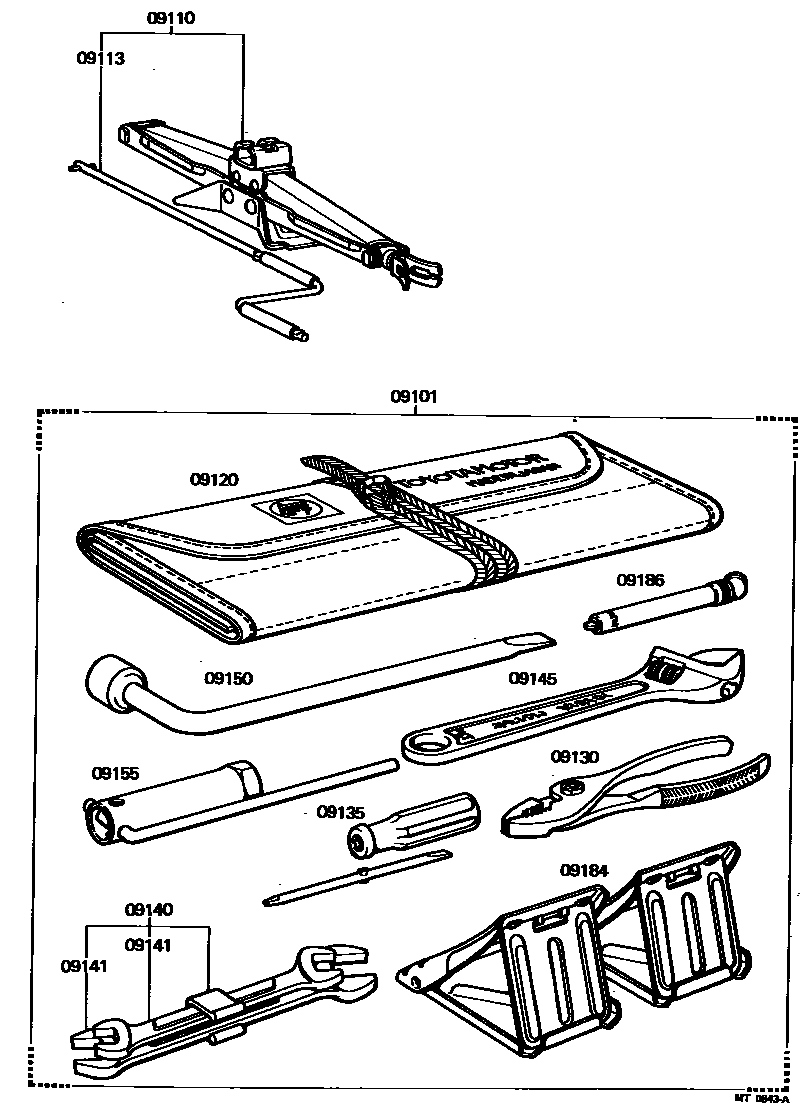

Toyota CRESTA — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-22021iGX5#,MX51198003-198205

main09101-22070iLX60198308-198407

main09101-22071iGX5#,61,MX51,61,SX60..CBR,EFI,TBO198205-198407

main09101-22072iTX50198205-198208

main09101-22075iGX61..TWC198208-198407

main09101-40021iTX50198003-198205

09110JACK ASSY

main09110-22020iGX5#,61,MX51,61,SX60,TX50198003-198306

main09110-22030iGX61,LX60,MX61,SX60198306-198407

sub09111-22080

sub09113-32010

09113HANDLE, JACK

main09113-14010iGX61,LX60,MX61,SX60198306-198407

main09113-22010iGX5#,61,MX51,61,SX60,TX50198003-198306

09120BAG, TOOL

main09120-20030iGX5#,61,LX60,MX51,61,SX60,TX50198203-198407

main09120-22010iGX5#,MX51,TX50198003-198203

09130PLIERS

main99913-11500iGX5#,61,LX60,MX51,61,SX60,TX50198205-198407

main99913-21500iGX5#,MX51,TX50198003-198205

sub09029-20150

09135DRIVER, SCREW

main99915-10700iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

09140SPANNER SET

main09140-00070iGX5#,MX51,TX50198003-198205

main09140-27010iGX5#,61,LX60,MX51,61,SX60,TX50198205-198407

09141SPANNER

main09141-00120iGX5#,MX51,TX50198003-198205

10X12

main09141-00130iGX5#,MX51,TX50198003-198205

14X17

main99914-11012iGX5#,61,LX60,MX51,61,SX60,TX50198205-198407

main99914-11417iGX5#,61,LX60,MX51,61,SX60,TX50198205-198407

09145WRENCH, MONKEY

main99911-10200iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

sub99911-11200

09150WRENCH, HUB NUT BOX

main09150-40010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

09155WRENCH, SPARK PLUG

main09155-00100iGX61..TWC198208-198407

main09155-22010iGX5#,MX51198003-198205

main09155-26010iTX50198205-198208

main09155-41010iGX5#,61,MX51,61,SX60..CBR,EFI,TBO198205-198407

main09155-51010iTX50198003-198205

09184STOPPER, WHEEL

main09184-00010×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

09186GAGE, TIRE

main09186-00010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

13 parts on this diagram · 1 diagram in section
