Toyota CRESTA — SPEAKER

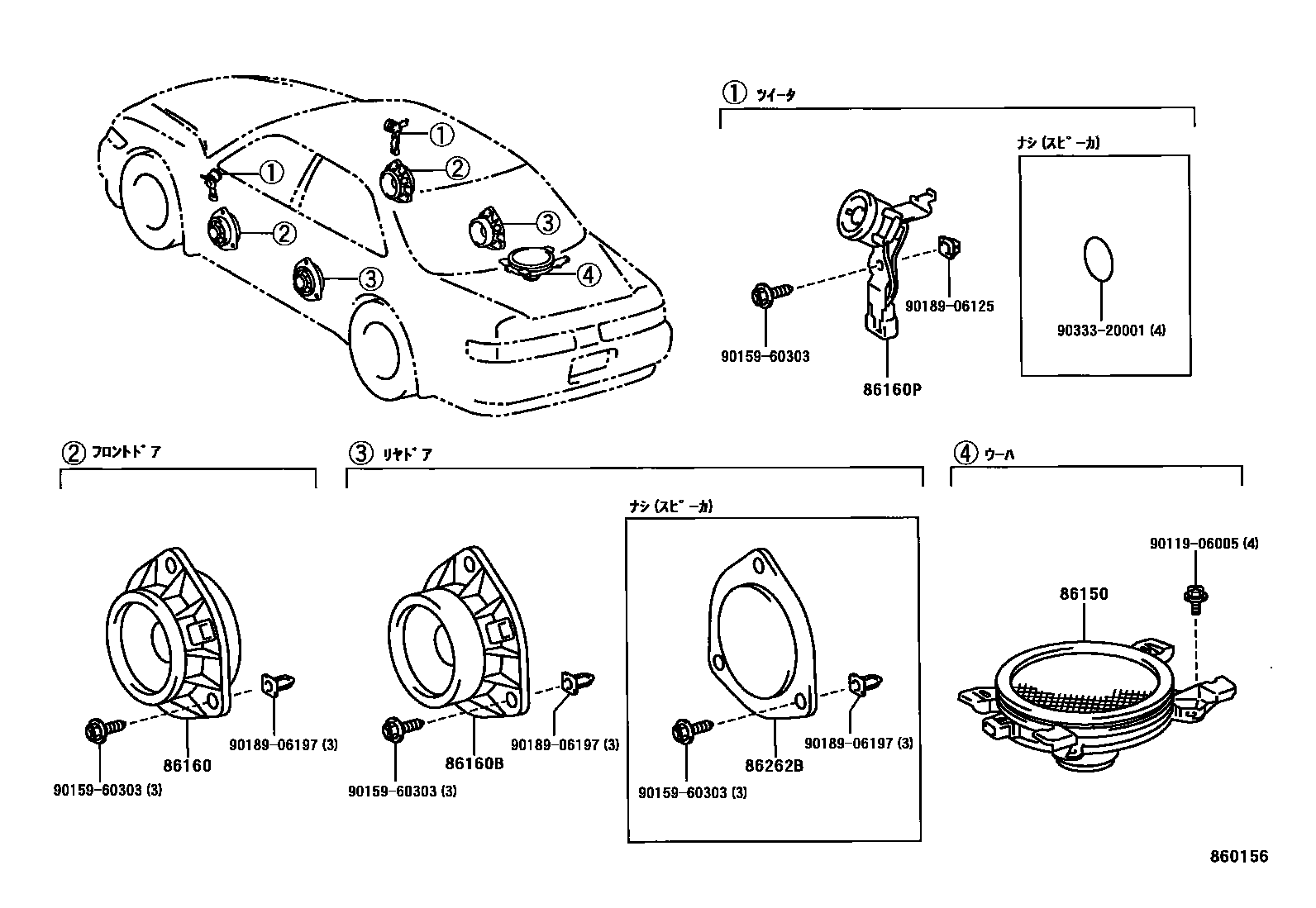

Parts diagram

86150SPEAKER ASSY, W/BOX, NO.1

main86160-22850i199609-199808

86160SPEAKER ASSY, FRONT NO.1

main86160-22770i199609-199808

main86160-22770i199808-200106

main86160-22790i199609-199808

main86160-22860i199609-200106

86160BSPEAKER ASSY, REAR

main86160-22560i199609-200106

main86160-22800i199609-200106

main86160-22820i199609-199808

86160PSPEAKER ASSY, FRONT NO.2

main86160-22870i199609-199808

main86160-22880i199609-200106

86262BCOVER, SPEAKER, REAR

main86262-22020i199609-199808

9011906005

main90119-06005

9015960303

main90159-60303

9018906125

main90189-06125

9018906197

main90189-06197

9033320001

main90333-20001

10 parts on this diagram · 1 diagram in section

SPEAKER for Toyota CRESTA

This section contains 10 genuine Toyota parts for the SPEAKER system of the Toyota CRESTA. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, COVER, SPEAKER, REAR.
