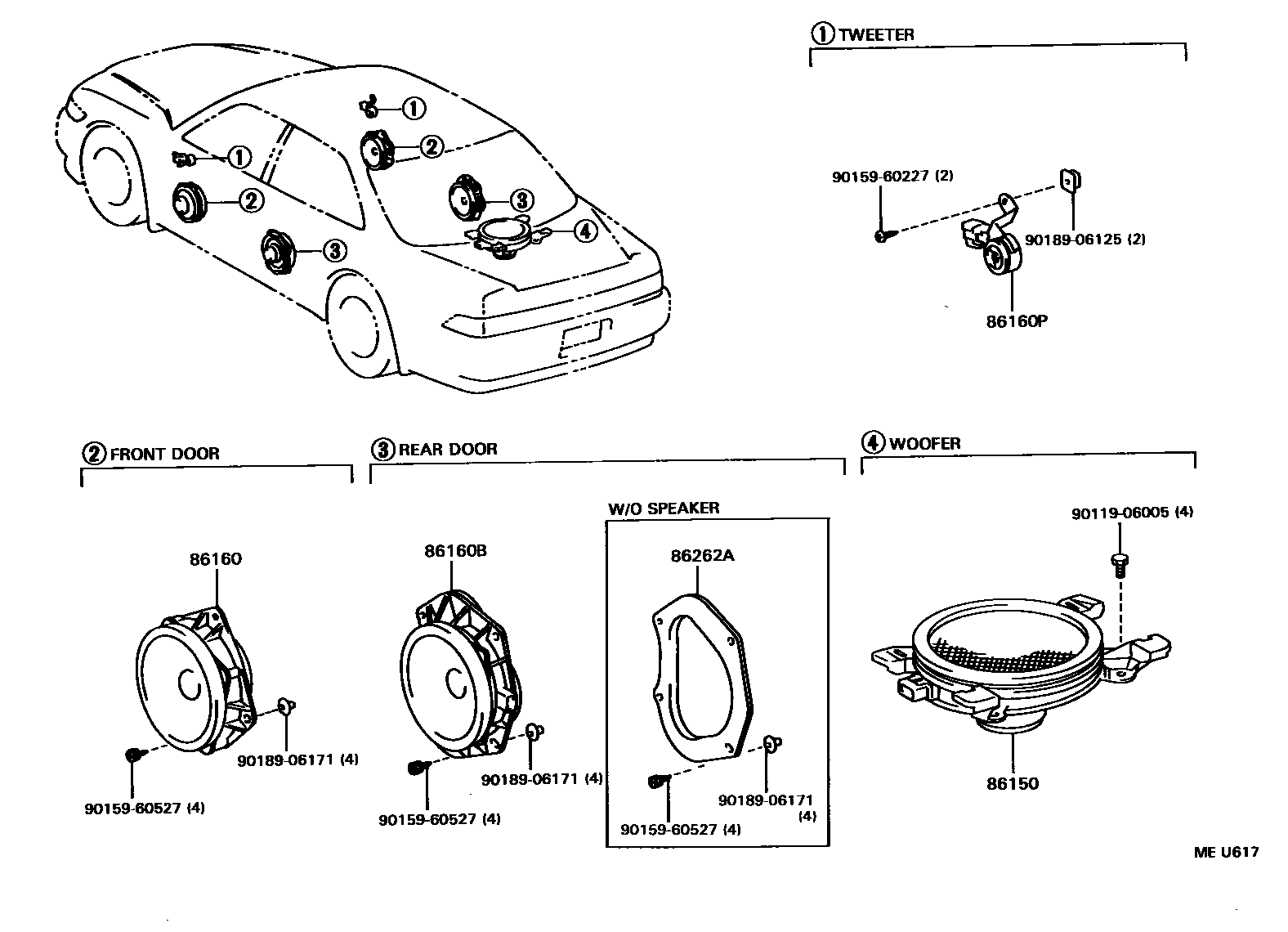

Toyota CRESTA — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86160-22680iJZX93..SLTG;JZX90,91..SLT,SLTG,TOUV199409-199609

sub86160-22850

86160SPEAKER ASSY, FRONT NO.1

main86160-22600×2iGX90,JZX90,93,LX90,SX90199210-199409

main86160-22601×2iGX90,JZX90,93,LX90,SX90199409-199609

main86160-22610×2iGX90,JZX90,LX90,SX90199210-199212

main86160-22611×2iGX90,JZX90,93,LX90,SX90199212-199609

main86160-22620×2iJZX90..SLTG199210-199310

86160BSPEAKER ASSY, REAR

main86160-22630×2iGX90,JZX90,93,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199609

PLANT NO.=M21,22,MATUSHITA

main86160-22640×2iGX90,JZX90,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199212

main86160-22641×2iGX90,JZX90,93,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199212-199609

main86160-22650×2iJZX90..SLTG199210-199310

86160PSPEAKER ASSY, FRONT NO.2

main86160-22730iGX90,JZX90,93199409-199609

main86160-22740iJZX90..SLT,SLTG199409-199509

main86160-22750iJZX93..SLTG;JZX90..SLT,TOUV199509-199609

main86160-22760iGX90,JZX90,93199409-199609

86262ACOVER, SPEAKER, FRONT

main86262-22010×2iLX90,SX90..SC199210-199609

9011906005

main90119-06005

9015960227

main90159-60227

9015960527

main90159-60527

9018906125

main90189-06125

9018906171

main90189-06171

10 parts on this diagram · 1 diagram in section
