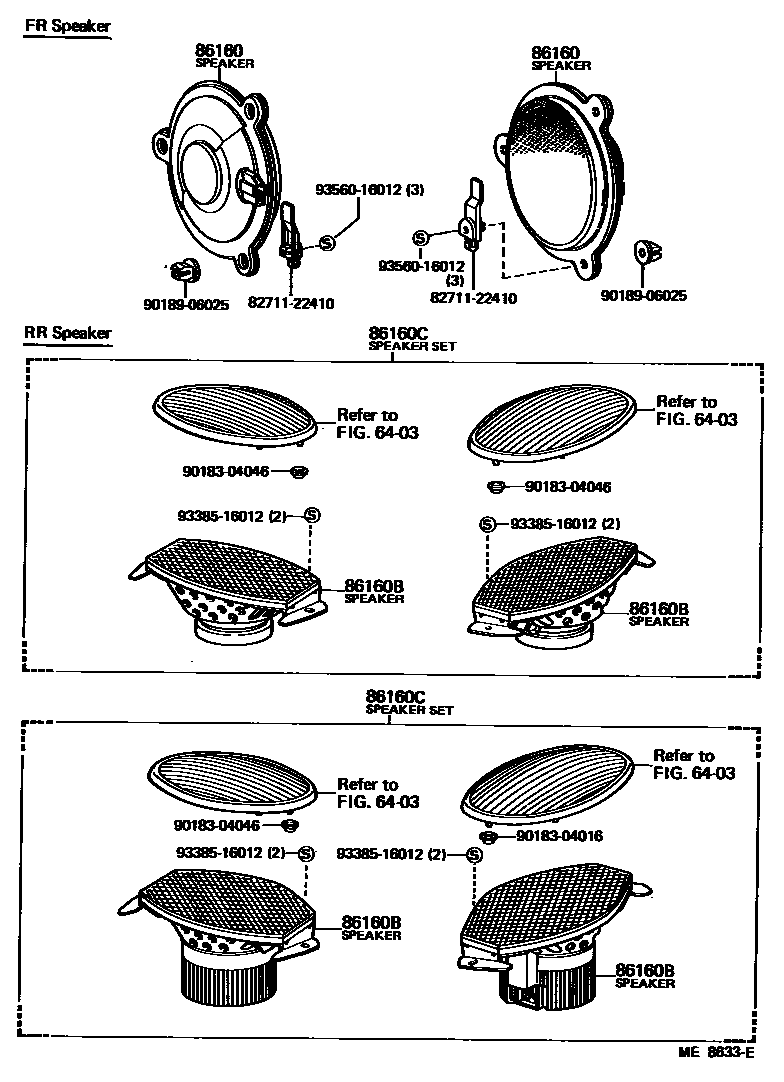

Toyota CRESTA — SPEAKER

0001 1 0002 1

6403

86160SPEAKER ASSY, FRONT NO.1

main86160-22060iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

RH

main86160-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

LH

86160BSPEAKER ASSY, REAR

main86160-22080×2iGX5#,61,MX51,61,SX60,TX50198003-198407

main86160-22100×2iGX61,MX61..SLU,STR198208-198407

W/TAPE PLAYER=RECORDING TYPE

main86160-22210×2iGX61,MX61..SLU198208-198407

W/*20 RADIO

86160CSPEAKER SET, REAR

main86160-29165iGX5#,61,MX51,61,SX60,TX50198003-198407

main86160-29175iGX51198003-198208

HI-FI POWER SYSTEM

main86160-29475iGX61,MX61..SLU198208-198407

W/*20 RADIO

8271122410WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22410

9018304016

main90183-04016

9018304046

main90183-04046

9018906025

main90189-06025

9338516012

main93385-16012

9356016012

main93560-16012

10 parts on this diagram · 2 diagrams in section
