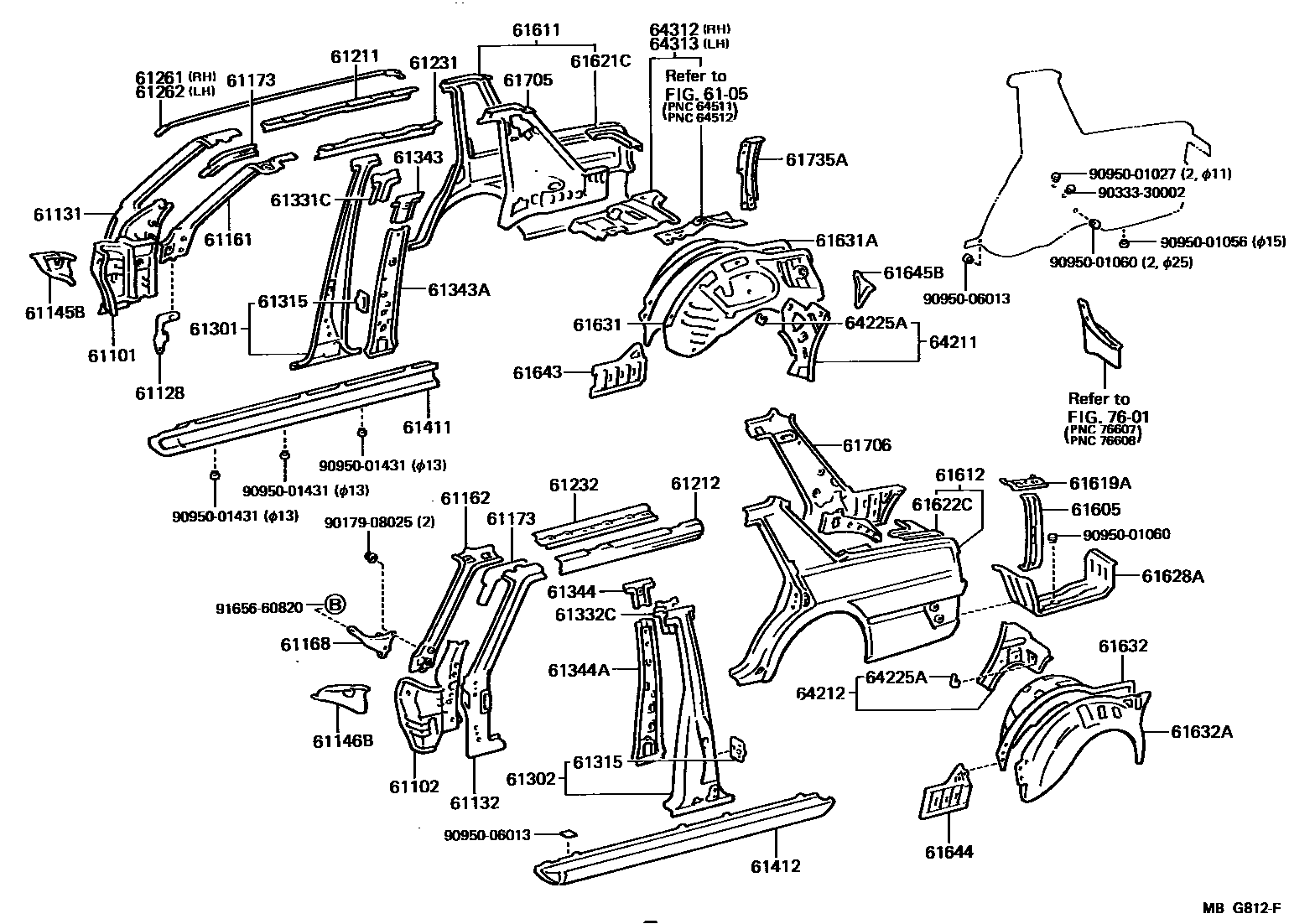

Toyota CRESTA — SIDE MEMBER

0001 1 0002 1

6105

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-22100iGX71,LX70,MX71,SX70198408-198808

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-22120iGX71,LX70,MX71,SX70198408-198808

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61125-22020iGX71,LX70,MX71,SX70198408-198808

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-22906iGX71..4FC..SDX198408-198409

*TECS1

sub90950-01061

main61131-22907iGX71,LX70,SX70198607-198808

W/*PW

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-22906iGX71,LX70,MX71,SX70198408-198808

sub61132-22909

sub90950-01061

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-22050iGX71,LX70,MX71,SX70198408-198808

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-22050iGX71,LX70,MX71,SX70198408-198808

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-22080iGX71,LX70,MX71,SX70198408-198808

main61161-22090iGX71..4FC..SDX198408-198808

*TECS1

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-22090iGX71,LX70,MX71,SX70198408-198808

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-22080iGX71,LX70,MX71,SX70198408-198808

61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER

main61173-22050iGX71,LX70,MX71,SX70198408-198808

RH

main61174-22040iGX71,LX70,MX71,SX70198408-198808

LH

61211RAIL, ROOF SIDE, OUTER RH

main61211-22080iGX71,LX70,MX71,SX70198408-198808

61212RAIL, ROOF SIDE, OUTER LH

main61212-22080iGX71,LX70,MX71,SX70198408-198808

61231RAIL, ROOF SIDE, INNER RH

main61231-22160iGX71,LX70,MX71,SX70198408-198808

main61231-22170iGX71..4FC..SDX198408-198808

*TECS1

61232RAIL, ROOF SIDE, INNER LH

main61232-22160iGX71,LX70,MX71,SX70198408-198808

61261CHANNEL, ROOF DRIP, RH

main61261-22070iGX71,LX70,MX71,SX70198408-198808

61262CHANNEL, ROOF DRIP, LH

main61262-22070iGX71,LX70,MX71,SX70198408-198808

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-22907iGX71,LX70,MX71,SX70198408-198808

sub61301-22909

sub90950-01029

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-22907iGX71,LX70,MX71,SX70198408-198808

sub61302-22909

sub90950-01029

61315RETAINER, DOOR LOCK STRIKER PLATE

main61315-22020×2iGX71,LX70,MX71,SX70198408-198808

61331CREINFORCEMENT, CENTER PILLAR, UPPER OUTER RH

main61331-22030iGX71,LX70,MX71,SX70198408-198608

main61331-22031iGX71,LX70,SX70198608-198808

61332CREINFORCEMENT, CENTER PILLAR, UPPER OUTER LH

main61332-22030iGX71,LX70,MX71,SX70198408-198608

main61332-22031iGX71,LX70,SX70198608-198808

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-22100iGX71,LX70,MX71,SX70198408-198608

main61341-22101iGX71,LX70,SX70198608-198808

61343APILLAR, CENTER BODY, INNER RH

main61343-22903iGX71,LX70,MX71,SX70198408-198608

main61343-22907iGX71,LX70,SX70198608-198808

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-22120iGX71,LX70,MX71,SX70198408-198608

main61342-22121iGX71,LX70,SX70198608-198808

61344APILLAR, CENTER BODY, INNER LH

main61344-22903iGX71,LX70,MX71,SX70198408-198608

main61344-22907iGX71,LX70,SX70198608-198808

61411PANEL, ROCKER, OUTER RH

main61401-22030iGX71,LX70,MX71,SX70198506-198808

main61401-22040iGX71,LX70,MX71,SX70198408-198506

61412PANEL, ROCKER, OUTER LH

main61402-22030iGX71,LX70,MX71,SX70198507-198808

main61402-22040iGX71,LX70,MX71,SX70198408-198507

61605BRACE SUB-ASSY, QUARTER PANEL, LH

main61609-22010iGX71,LX70,MX71,SX70198408-198808

61611PANEL, QUARTER, RH

main61601-22600iGX71,LX70,MX71,SX70198408-198808

61612PANEL, QUARTER, LH

main61602-22927iGX71,LX70,MX71,SX70198408-198808

61619AREINFORCEMENT, QUARTER PANEL

main61619-22050iGX71,LX70,MX71,SX70198408-198808

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-22070iGX71,LX70,SX70198408-198808

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-22070iGX71,LX70,SX70198408-198808

61628AEXTENSION, QUARTER PANEL, LOWER LH

main61628-22020iGX71,LX70,MX71,SX70198408-198808

61631PANEL, QUARTER WHEEL HOUSE, RH

main61607-22914iLX70,SX70198408-198808

main61607-22915iGX71,MX71198408-198808

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-22905iGX71,LX70,MX71,SX70198408-198507

main61631-22906iGX71,LX70,MX71,SX70198507-198808

61632PANEL, QUARTER WHEEL HOUSE, LH

main61608-22913iLX70,SX70198408-198808

main61608-22914iGX71,MX71198408-198808

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-22090iGX71,LX70,MX71,SX70198408-198506

main61632-22100iGX71,LX70,MX71,SX70198506-198808

61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH

main61641-22020iGX71,LX70,MX71,SX70198408-198507

main61641-22030iGX71,LX70,MX71,SX70198507-198808

61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH

main61642-22020iGX71,LX70,MX71,SX70198408-198507

main61642-22030iGX71,LX70,MX71,SX70198507-198808

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-22020iGX71,LX70,MX71,SX70198408-198808

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-22905iGX71,LX70,MX71,SX70198408-198808

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-22905iGX71,LX70,MX71,SX70198408-198808

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-22030iGX71,LX70,MX71,SX70198408-198808

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-22901iGX71,LX70,MX71,SX70198408-198808

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-22901iGX71,LX70,MX71,SX70198408-198808

64225AHANGER, REAR SEAT CUSHION SUPPORT

main64225-22020×2iGX71,LX70,MX71,SX70198408-198808

64312BRACKET, PACKAGE TRAY, RH

main64312-22904iGX71,LX70,MX71,SX70198408-198808

64313BRACKET, PACKAGE TRAY, LH

main64313-22904iGX71,LX70,MX71,SX70198408-198808

7601

9017908025

main90179-08025

9033330002

main90333-30002

9095001027

main90950-01027

9095001056

main90950-01056

9095001060

main90950-01060

9095001431

main90950-01431

9095006013

main90950-06013

9165660820

main91656-60820

60 parts on this diagram · 2 diagrams in section
