Toyota CRESTA — SHORT BLOCK ASSEMBLY

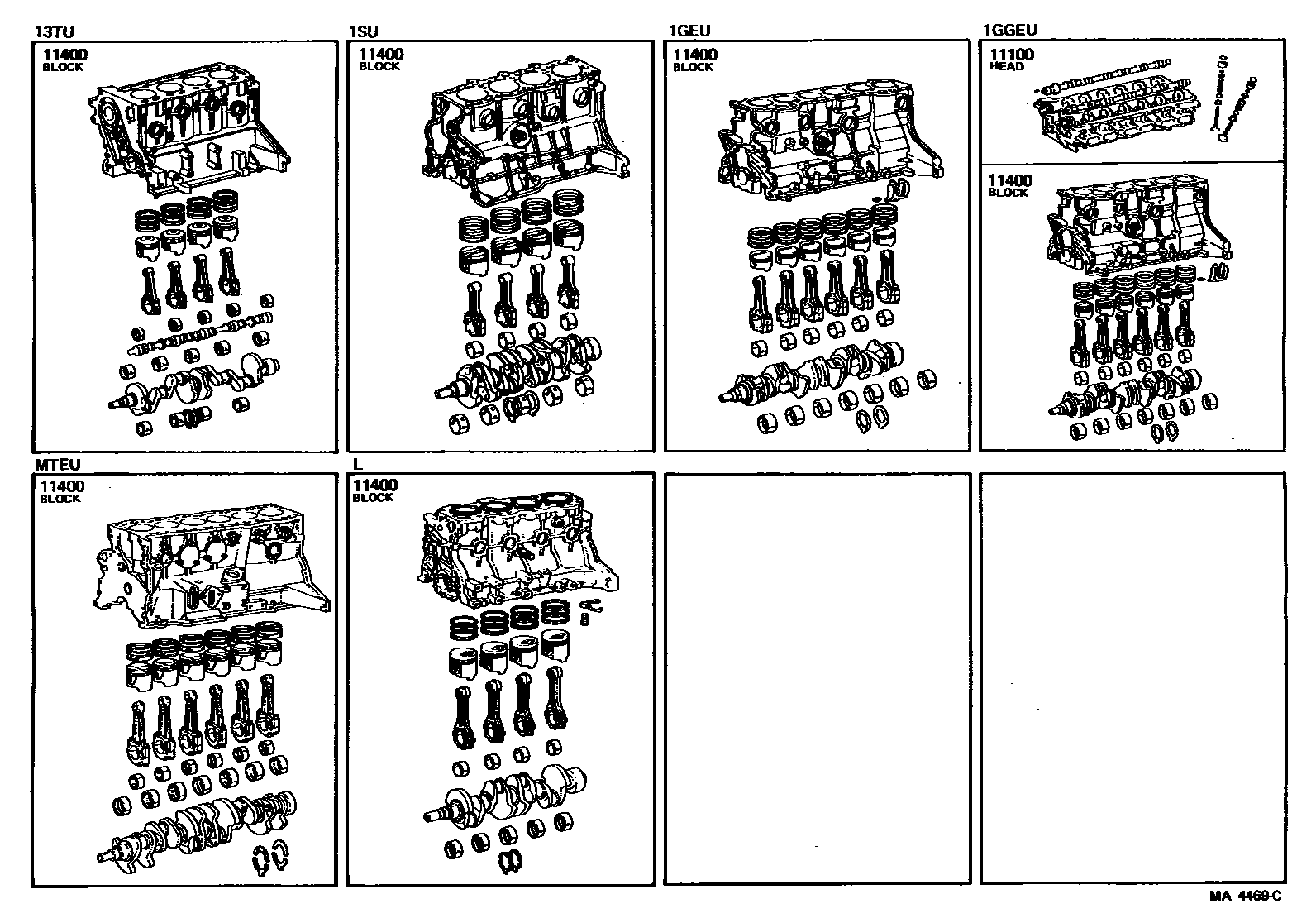

Parts diagram

11100HEAD ASSY, SHORT

main11100-88280i198208-198407

11400BLOCK ASSY, SHORT

main11400-18011i198003-198207

main11400-18012i198207-198208

main11400-41060i198110-198302

main11400-41061i198302-198308

main11400-41090i198308-198407

main11400-41091i198407-198407

main11400-54013i198308-198407

main11400-63010i198208-198407

main11400-70010i198003-198012

main11400-70011i198012-198407

main11400-88300i198208-198407

2 parts on this diagram · 1 diagram in section

SHORT BLOCK ASSEMBLY for Toyota CRESTA

This section contains 2 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota CRESTA. Key components include: HEAD ASSY, SHORT, BLOCK ASSY, SHORT.
