Toyota CRESTA — ROOF SIDE VENTILATOR

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-22020i198408-198808

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62904-22020i198408-198808

62905LOUVER, QUARTER VENTILATION

main62951-22100i198408-198608

main62951-22101i198608-198808

main62952-22090i198408-198608

main62952-22091i198608-198808

62971ADUCT, ROOF SIDE AIR, NO.1 RH

main62971-22010i198408-198703

main62971-22011i198703-198808

main62971-22020i198703-198808

COLD SPEC

62972ADUCT, ROOF SIDE AIR, NO.1 LH

main62972-22010i198408-198703

main62972-22011i198703-198808

main62972-22020i198703-198808

COLD SPEC

64141ASILENCER, BACK PANEL, NO.1

main64141-22010×2i198408-198703

main64141-22011×2i198703-198808

COLD SPEC

9015440010

main90154-40010

9017905095

main90179-05095

9056204006

main90562-04006

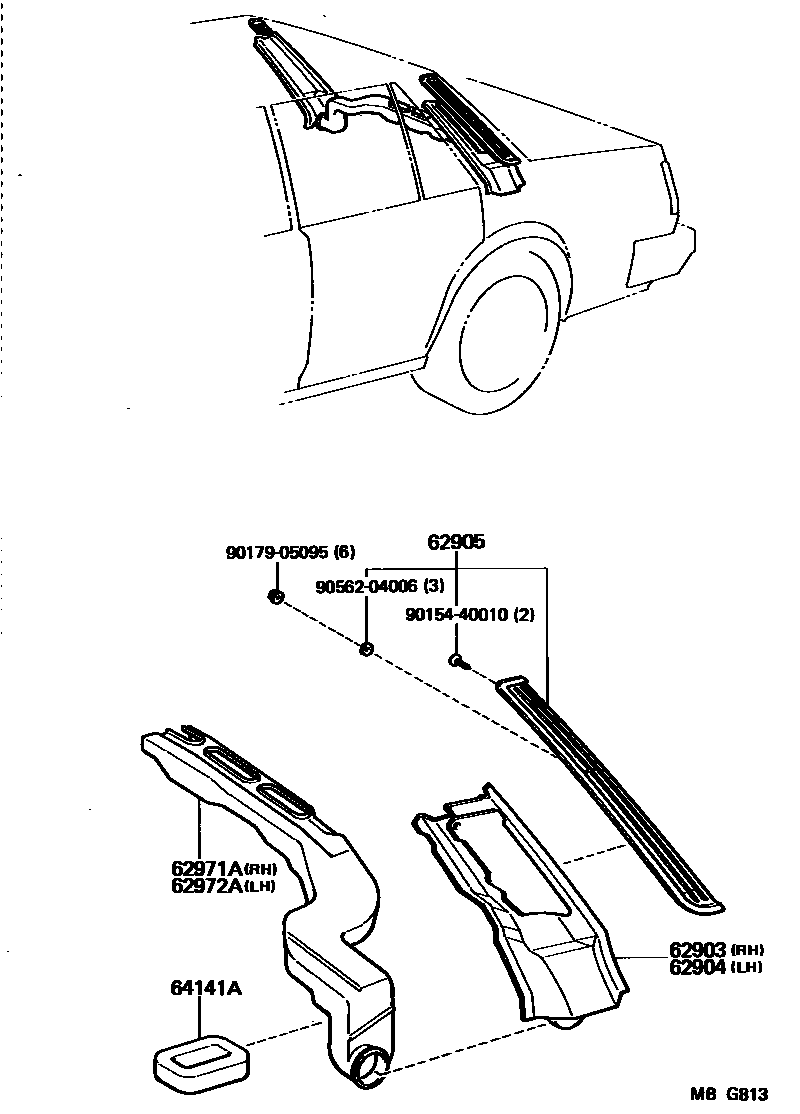

9 parts on this diagram · 1 diagram in section

ROOF SIDE VENTILATOR for Toyota CRESTA

This section contains 9 genuine Toyota parts for the ROOF SIDE VENTILATOR system of the Toyota CRESTA. Key components include: DUCT SUB-ASSY, QUARTER VENTILATOR, RH, DUCT SUB-ASSY, QUARTER VENTILATOR, LH, LOUVER, QUARTER VENTILATION, DUCT, ROOF SIDE AIR, NO.1 RH, DUCT, ROOF SIDE AIR, NO.1 LH.
