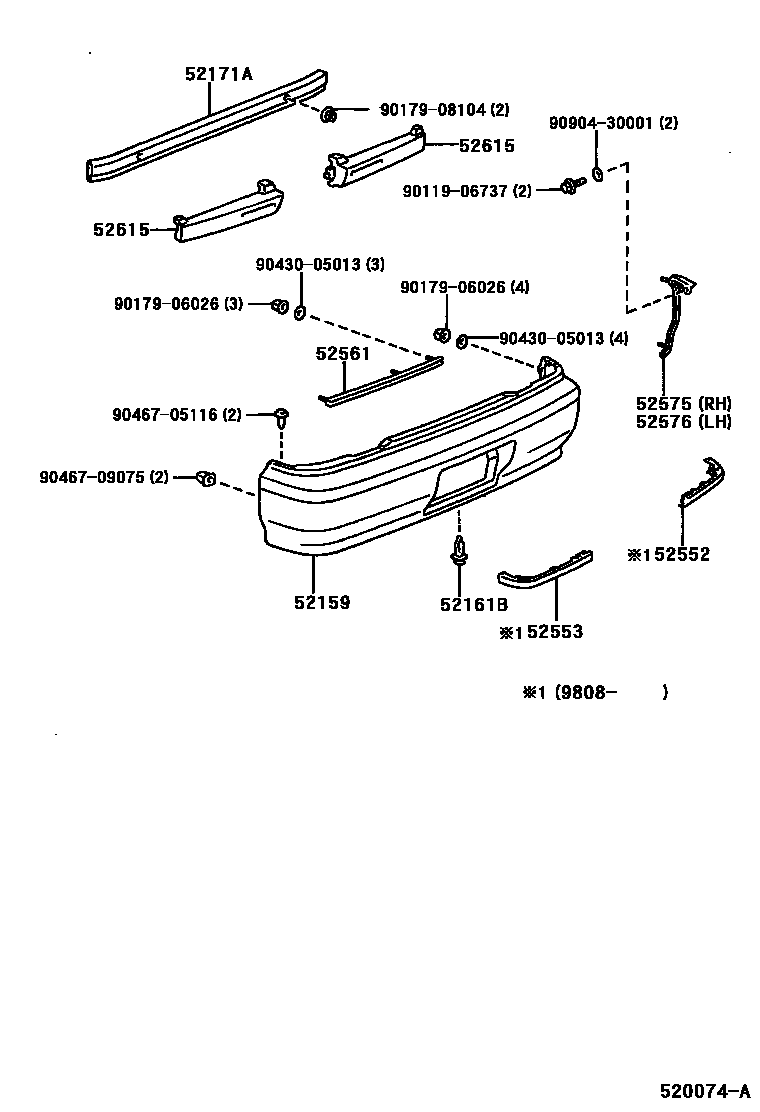

Toyota CRESTA — REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-22640-A0i199609-200106

SUPER WHITE 2,040

main52159-22640-A1i199609-200106

WHITE PM.,057

main52159-22640-A4i199901-199907

main52159-22640-B0i199609-199708

SILVER ME,199

main52159-22640-B1i199708-200106

SILVER ME.,1C0

main52159-22640-C0i199703-199808

BLACK ME,205

main52159-22640-C2i200002-200004

BLACK,202

main52159-22640-D0i199609-199808

WINE RED MC.,3L4

main52159-22640-G0i199609-199708

GRAYISH GREEN M.M.,6N0

main52159-22640-G1i199808-200106

DK.GREEN MC.P.I.O.,6N9

main52159-22640-J0i199609-200106

DK.BLUE MC.,8L4

main52159-22650-A2i199609-199808

WHITE PM.,2CG

main52159-22650-A3i199808-200106

WHITE PM.,2CF

main52159-22650-B2i199804-199808

main52159-22650-C1i199708-199709

main52159-22650-G2i199808-200106

DK.GREEN MC.P.I.O.,2FF

52161BPIECE, REAR BUMPER

main52161-16010×2i199609-200106

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-22160i199609-200106

52552FILLER, REAR BUMPER, RH

main52552-22070i199808-200106

52553FILLER, REAR BUMPER, LH

main52553-22070i199808-200106

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-22140i199609-200106

52575RETAINER, REAR BUMPER SIDE, RH

main52575-22080i199609-200106

52576RETAINER, REAR BUMPER SIDE, LH

main52576-22080i199609-200106

52615ABSORBER, REAR BUMPER ENERGY

main52615-22200i199609-200106

main52616-22030i199609-200106

9011906737

main90119-06737

9017906026

main90179-06026

9017908104

main90179-08104

9043005013

main90430-05013

9046705116

main90467-05116

9046709075

main90467-09075

9090430001

main90904-30001

16 parts on this diagram · 1 diagram in section

REAR BUMPER & BUMPER STAY for Toyota CRESTA

This section contains 16 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota CRESTA. Key components include: COVER, REAR BUMPER, PIECE, REAR BUMPER, REINFORCEMENT, REAR BUMPER, NO.1, FILLER, REAR BUMPER, RH, FILLER, REAR BUMPER, LH.
