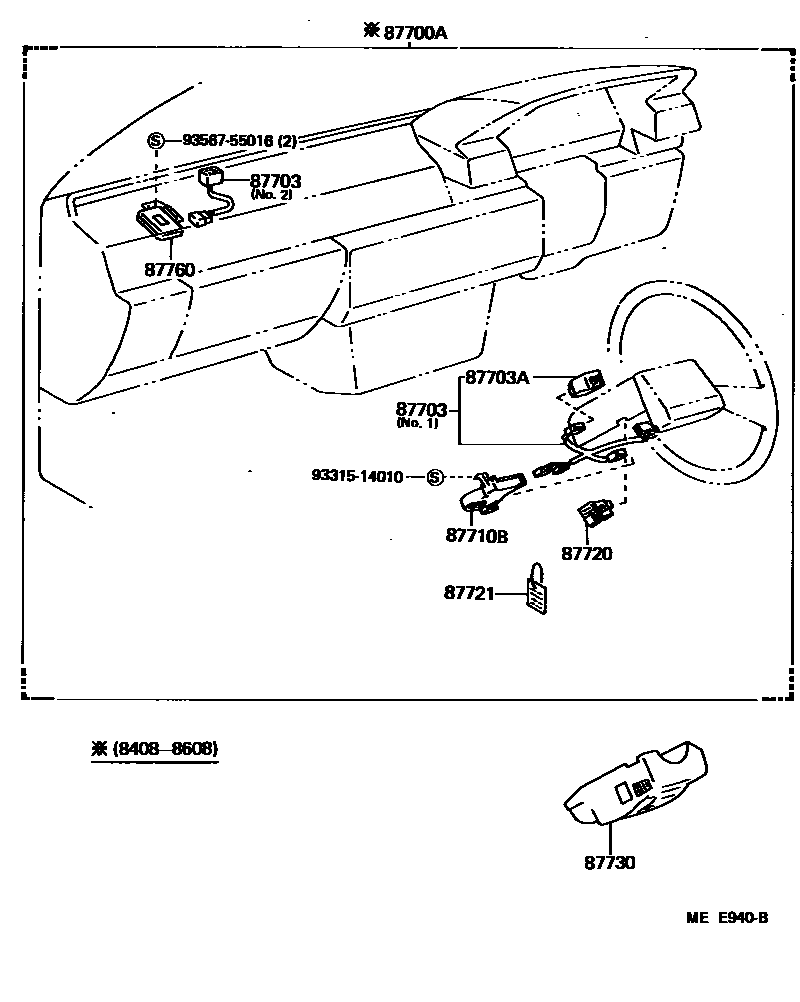

Toyota CRESTA — QUICK HAND WARMER

87700AQUICK HEATER & ACCESSORY ASSY

main87700-22050i198408-198608

main87700-22060i198408-198608

87703HARNESS SUB-ASSY, QUICK HEATER

main87703-22010i198408-198708

NO.1

main87703-22011i198708-198808

NO.1

main87703-22020i198408-198808

NO.2

87703ARELAY, QUICK HEATER

main88630-22020i198408-198808

87710BHEATER ASSY, QUICK

main87710-22020i198408-198708

main87710-22021i198708-198808

87720SWITCH ASSY, QUICK HEATER

main87720-22010i198408-198608

main87720-22011i198608-198808

87721PLATE, QUICK HEATER CAUTION

main87721-22020i198408-198808

87730DUCT ASSY, QUICK HEATER

main87730-22010-02i198408-198608

MAROON,RED,TRIM3#

main87730-22010-03i198408-198608

GRAY,COOL GRAY,TRIM1#

main87730-22010-04i198608-198808

BLUE,DARK BLUE,TRIM8#

main87730-22010-05i198408-198608

BEIGE,BEIGE,TRIM4#

main87730-22010-12i198608-198808

MAROON,MAROON,TRIM3#

main87730-22010-15i198608-198808

BEIGE,DARK BEIGE,TRIM4#

87760AMPLIFIER ASSY, QUICK HEATER

main87760-22020i198408-198808

9331514010

main93315-14010

9356755016

main93567-55016

10 parts on this diagram · 1 diagram in section

QUICK HAND WARMER for Toyota CRESTA

This section contains 10 genuine Toyota parts for the QUICK HAND WARMER system of the Toyota CRESTA. Key components include: QUICK HEATER & ACCESSORY ASSY, HARNESS SUB-ASSY, QUICK HEATER, RELAY, QUICK HEATER, HEATER ASSY, QUICK, SWITCH ASSY, QUICK HEATER.
