Toyota CRESTA — PARTIAL ENGINE ASSEMBLY

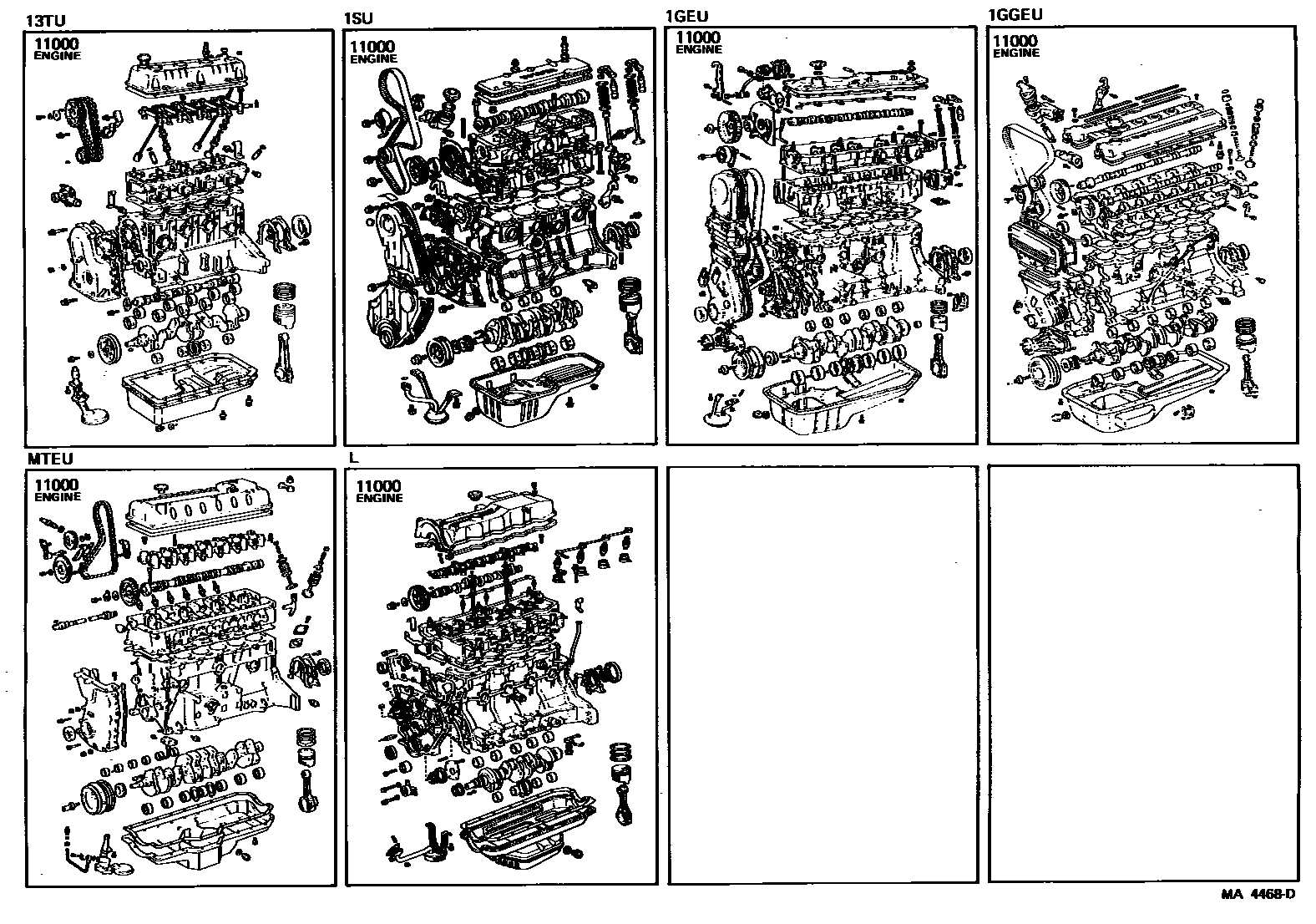

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-18060i198003-198207
main19000-18061i198207-198208
main19000-41200i198110-198302
main19000-41201i198302-198305
sub35523-30030
sub91111-40812
sub94511-00800
main19000-41202i198305-198308
main19000-41230i198308-198407
sub19000-41231
sub90116-10097
sub90179-10016
main19000-54240i198308-198407
sub19000-54410
sub11452-54010
sub90461-10658
main19000-63010i198208-198401
main19000-63011i198401-198407
sub19000-63012
main19000-63040i198307-198308
COLD SPEC
sub19000-63041
main19000-70011i198003-198208
sub19000-70020
main19000-70012i198208-198308
sub13407-70031
main19000-70013i198308-198407
sub19000-70014
sub32921-14162
sub32921-22133
sub32921-22211
main19000-88320i198208-198407

1 parts on this diagram · 1 diagram in section
