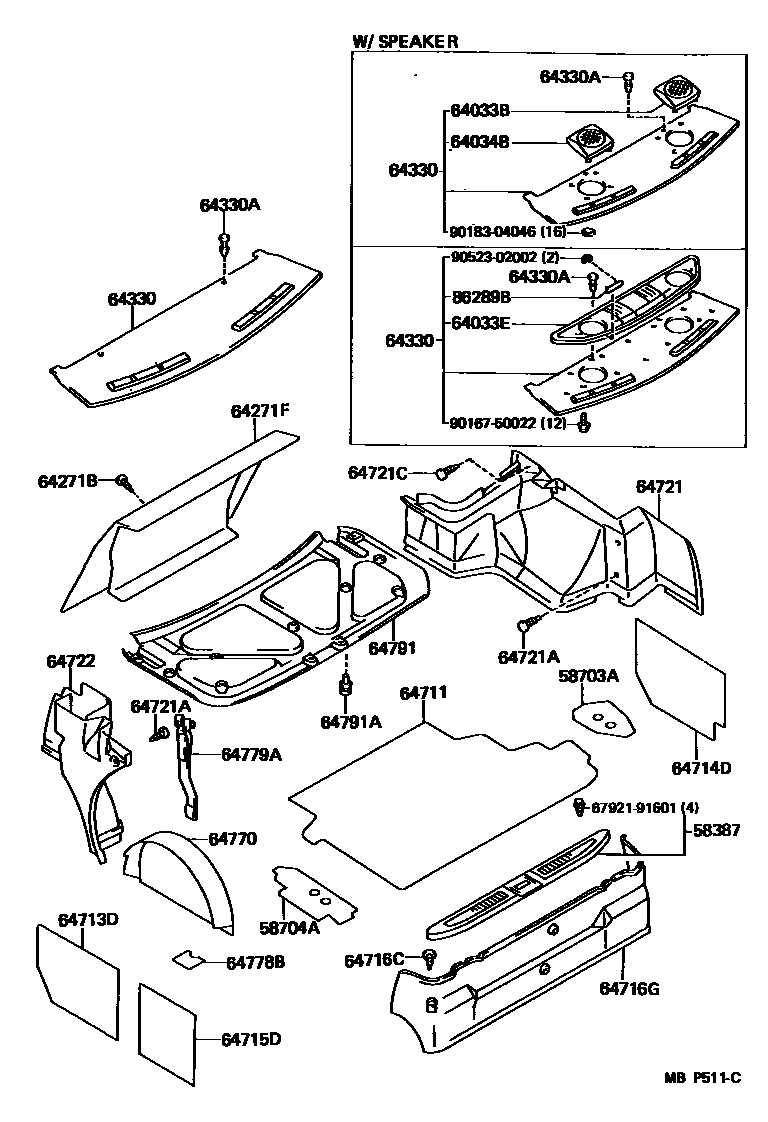

Toyota CRESTA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-91602-03i199008-199210

GRAY,TRIM1#,3#,4#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-22060i198808-199210

main58703-22070i198808-199210

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-22050i198808-199210

main58704-22060i198808-199210

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-22070-02i198903-199210

NEW MAROON,TRIM3#

main64033-22070-03i199008-199210

MEDIUM GRAY,TRIM1#

main64033-22070-04i198903-199008

DARK BLUE,TRIM8#

main64033-22070-06i198903-199210

SABLE,TRIM4#

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64033-22080-02i198910-199006

NEW MAROON,TRIM3#

main64033-22080-04i198910-199006

DARK BLUE,TRIM8#

main64033-22080-06i198910-199006

SABLE,TRIM4#

main64033-22081-02i199006-199008

NEW MAROON,TRIM3#

main64033-22081-03i199008-199210

MEDIUM GRAY,TRIM1#

main64033-22081-04i199006-199008

DARK BLUE,TRIM8#

main64033-22081-06i199006-199008

SABLE,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-22070-02i198903-199210

NEW MAROON,TRIM3#

main64033-22070-03i199008-199210

MEDIUM GRAY,TRIM1#

main64033-22070-04i198903-199008

DARK BLUE,TRIM8#

main64033-22070-06i198903-199210

SABLE,TRIM4#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-06070-13×2i198808-199008

GRAY,TRIM3#,4#,8#; GRAY,TRIM8#

64271FTRIM, ROOM PARTITION

main64271-91601-03i198808-199008

GRAY,TRIM3#,4#,8#; GRAY,TRIM8#

main64271-91602-03i198808-199008

GRAY,TRIM3#,4#,8#

main64271-91603i198808-199210

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-23010-02i199008-199210

main64330-23010-03i199008-199210

main64330-23010-06i199008-199210

main64330-23020-02i199008-199210

main64330-23020-03i199008-199210

main64330-23020-06i199008-199210

main64330-91610-02i198808-199210

NEW MAROON,TRIM3#

main64330-91610-03i199008-199210

MEDIUM GRAY,TRIM1#

main64330-91610-04i198808-199008

DARK BLUE,TRIM8#

main64330-91610-06i198808-199210

SABLE,TRIM4#

main64330-91611-02i198903-199210

main64330-91611-03i199008-199210

main64330-91611-04i198903-199008

main64330-91611-06i198903-199210

main64330-91612-02i198808-199210

main64330-91612-03i199008-199210

main64330-91612-04i198808-199008

main64330-91612-06i199111-199210

main64330-91613-02i199008-199210

main64330-91613-03i199008-199210

main64330-91613-04i198910-199008

main64330-91613-06i199004-199007

main64330-91614-02i198808-198910

main64330-91614-03i199008-199210

main64330-91614-04i198910-199008

main64330-91614-06i199008-199210

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08037-12×2i199008-199210

NEW MAROON,TRIM3#

main90467-08037-44×2i198808-199008

DARK BLUE,TRIM8#

main90467-08037-46×2i198808-199210

SABLE,TRIM4#

main90467-08037-B0×2i199008-199210

MEDIUM GRAY,TRIM1#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-23010-03i199008-199210

main64711-23030-03i199008-199210

main64711-23040-03i199008-199210

main64711-23080-03i199008-199210

main64711-91601-03i198808-199008

GRAY,TRIM8#

main64711-91602-03i198808-199008

GRAY,TRIM3#,4#,8#

main64711-91603-03i198808-199008

GRAY,TRIM3#,4#,8#

main64711-91604i198808-199210

main64711-91605-03i199008-199210

GRAY,TRIM1#

64713DCOVER, LUGGAGE COMPARTMENT TRIM, FRONT LH

main64713-91601-03i198808-199008

GRAY,TRIM8#

main64713-91602-03i198808-199008

GRAY,TRIM3#,4#,8#

main64713-91603-03i198808-199008

GRAY,TRIM3#,4#,8#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-22220-03i199008-199210

GRAY,TRIM1#

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-22170-03i199008-199210

GRAY,TRIM1#

main64715-91602-03i199008-199210

GRAY,TRIM1#

main64715-91603-03i199008-199210

GRAY,TRIM1#,3#,4#

main64715-91604-03i198808-199008

GRAY,TRIM3#,4#,8#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05020-13×8i199008-199210

GRAY,TRIM1#,3#,4#

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-91605-03i198808-199008

GRAY,TRIM3#,4#,8#

main64716-91606-03i198808-199008

GRAY,TRIM3#,4#,8#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-91605-03i199008-199210

GRAY,TRIM1#,3#,4#

main64721-91606-03i199008-199210

GRAY,TRIM1#,3#,4#

main64721-91607-03i199008-199210

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-B0×5i198808-199008

LIGHT GRAY,TRIM3#,4#,8#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-06020-22×2i199008-199210

NEW MAROON,TRIM3#

main90467-06020-23×2i199008-199210

GRAY,TRIM1#

main90467-06020-33×2i198809-199008

GRAY,TRIM3#,4#,8#

main90467-06020-36×2i199008-199210

SABLE,TRIM4#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-91606-03i199008-199210

GRAY,TRIM1#,3#,4#

main64722-91607-03i198808-198908

GRAY,TRIM3#,4#,8#

main64722-91608-03i199008-199210

64770COVER ASSY, SPARE WHEEL

main64770-22070-03i199008-199210

main64770-22080-03i199008-199210

main64770-22090-03i198808-199008

GRAY,TRIM3#,4#,8#

main64770-22100-03i199008-199210

GRAY,TRIM1#,3#,4#

main64770-22120-03i198808-199008

GRAY,TRIM8#

64778BPROTECTOR, SPARE WHEEL

main64778-22010i198808-199210

64779ASTOPPER, SPARE WHEEL COVER

main64779-22010i198808-199210

64791COVER, BACK DOOR TRIM

main64791-91602-03i198808-199008

GRAY,TRIM3#,4#,8#

main64791-91604-03i198808-199008

64791ACLIP(FOR BACK DOOR TRIM)

main90467-07059-03×16i199008-199210

GRAY,TRIM1#; GRAY,TRIM1#,3#,4#

86289BPLATE, SPEAKER GRILE

main86289-22010i198808-198910

6792191601RETAINER, FRONT DOOR SCUFF PLATE

main67921-91601

9016750022

main90167-50022

9018304046

main90183-04046

9052302002

main90523-02002

30 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CRESTA

This section contains 30 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CRESTA. Key components include: PLATE, REAR FLOOR FINISH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER.
