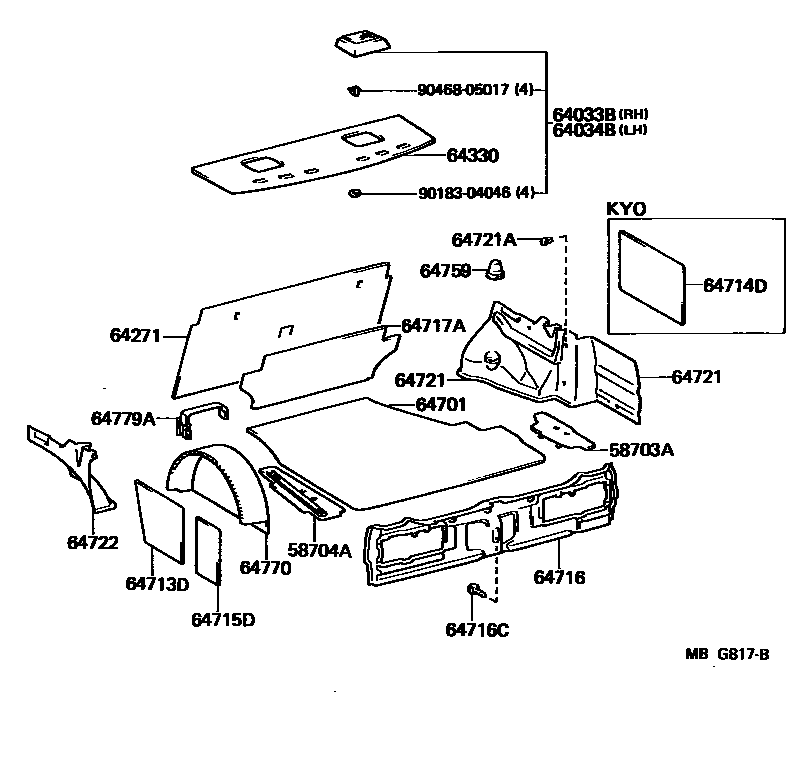

Toyota CRESTA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-22050i198408-198808

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-22030i198408-198808

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-22020-02i198508-198608

MAROON,MAROON,TRIM3#

main64033-22020-03i198408-198508

GRAY,COOL GRAY,TRIM1#

main64033-22020-05i198508-198608

BEIGE,BEIGE,TRIM4#

main64033-22060-02i198608-198808

MAROON,MAROON,TRIM3#

main64033-22060-04i198608-198808

BLUE,DARK BLUE,TRIM8#

main64033-22060-05i198608-198808

BEIGE,DARK BEIGE,TRIM4#

main86269-22030i198408-198502

TECHNICS

main86269-22031i198502-198608

TECHNICS

main86269-22051i198608-198808

TECHNICS

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-22020-02i198508-198608

MAROON,MAROON,TRIM3#

main64033-22020-03i198408-198508

GRAY,COOL GRAY,TRIM1#

main64033-22020-05i198408-198508

BEIGE,BEIGE,TRIM4#

main64033-22060-02i198608-198808

MAROON,MAROON,TRIM3#

main64033-22060-04i198608-198808

BLUE,DARK BLUE,TRIM8#

main64033-22060-05i198608-198808

BEIGE,DARK BEIGE,TRIM4#

main86269-22030i198408-198502

TECHNICS

main86269-22031i198502-198608

TECHNICS

main86269-22051i198608-198808

TECHNICS

64271BOARD, ROOM PARTITION, NO.1

main64271-22080i198408-198808

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-22520-02i198408-198608

MAROON,MAROON,TRIM3#

main64330-22520-03i198408-198608

GRAY,COOL GRAY,TRIM1#

main64330-22520-04i198608-198808

BLUE,DARK BLUE,TRIM8#

main64330-22520-05i198408-198608

BEIGE,BEIGE,TRIM4#

main64330-22520-12i198608-198808

MAROON,MAROON,TRIM3#

main64330-22520-15i198608-198808

BEIGE,DARK BEIGE,TRIM4#

main64330-22530-02i198408-198608

MAROON,MAROON,TRIM3#

main64330-22530-03i198408-198608

GRAY,COOL GRAY,TRIM1#

main64330-22530-04i198608-198808

BLUE,DARK BLUE,TRIM8#

main64330-22530-05i198408-198608

BEIGE,BEIGE,TRIM4#

main64330-22530-12i198608-198808

MAROON,MAROON,TRIM3#

main64330-22530-15i198608-198808

BEIGE,DARK BEIGE,TRIM4#

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-22180i198408-198808

main64711-22190i198408-198808

main64711-22210i198612-198808

*30

64713DCOVER, LUGGAGE COMPARTMENT TRIM, FRONT LH

main64713-22030i198408-198808

main64713-22040i198408-198808

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-22140i198408-198808

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-22130i198408-198808

main64715-22140i198408-198808

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-22170i198408-198608

main64716-22170-03i198608-198808

GRAY,GRAY,TRIM1#,8#

main64716-22190i198408-198608

main64716-22190-03i198608-198808

GRAY,GRAY,TRIM1#,8#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-33×12i198408-198808

GRAY,GRAY,TRIM1#,8#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-22080i198408-198808

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-22140i198408-198808

main64721-22150i198408-198808

main64721-22160i198408-198808

main64721-22170i198408-198808

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-03×4i198408-198808

GRAY,GRAY,TRIM1#,8#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-22180i198408-198808

main64722-22190i198408-198808

main64722-22200i198408-198808

main64722-22210i198408-198808

64759COVER, SHOCK ABSORBER HEAD

main58731-22020-23×2i198408-198808

GRAY,GRAY,TRIM1#,8#

main58731-24010-03×2i198408-198808

GRAY,GRAY,TRIM1#,8#

64770COVER ASSY, SPARE WHEEL

main64770-22030i198408-198808

main64770-22040i198408-198808

main64770-22050i198408-198808

64779ASTOPPER, SPARE WHEEL COVER

main64779-22010i198408-198808

9018304046

main90183-04046

9046805017

main90468-05017

21 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CRESTA

This section contains 21 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CRESTA. Key components include: COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, LH, BOARD, ROOM PARTITION, NO.1.
