Toyota CRESTA — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

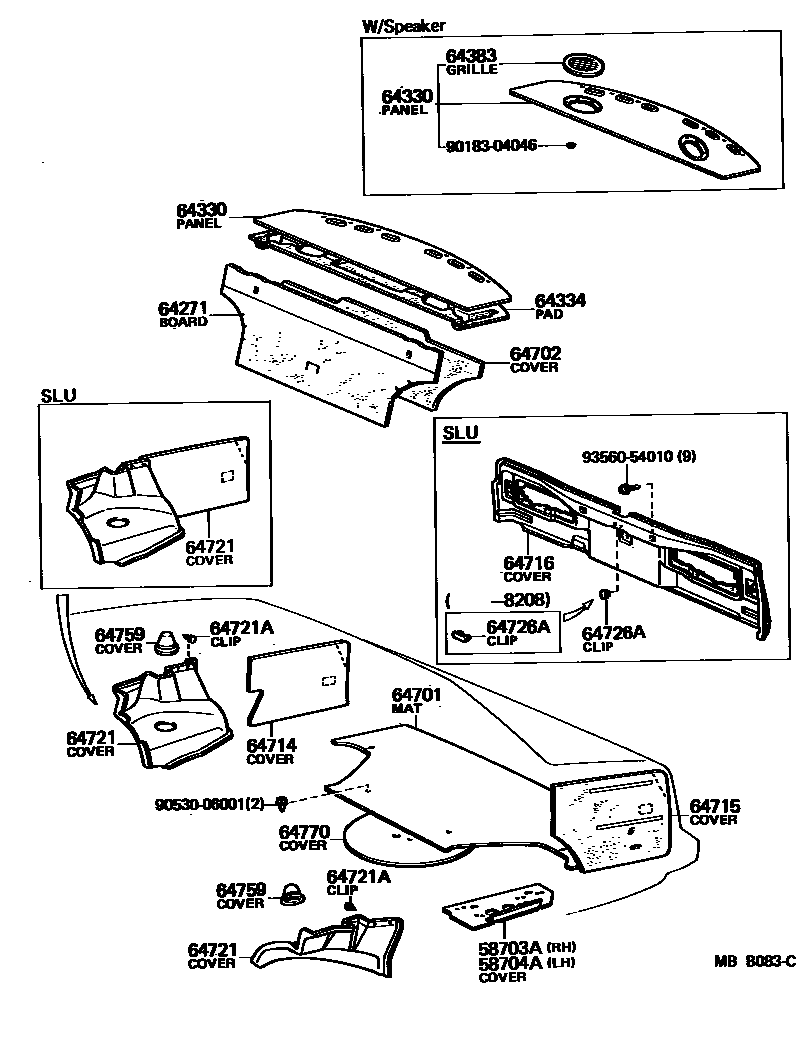

Parts diagram
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58703-22030i198003-198407
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
main58704-22020i198003-198407
64271BOARD, ROOM PARTITION, NO.1
main64271-22060i198208-198407
main64271-22070i198208-198407
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-22190-01i198003-198104
BLACK,BLACK,TRIM2#
main64330-22190-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main64330-22190-04i198003-198104
BLUE,BLUE,TRIM8#
main64330-22190-06i198003-198104
D-BROWN,BROWN,TRIM4#
main64330-22190-14i198208-198407
BLUE,BLUE,TRIM8#
main64330-22200-01i198003-198104
W/SPEAKER,BLACK,BLACK,TRIM2#
main64330-22200-02i198208-198407
W/SPEAKER,DEEP MAROON,RED/MAROON,TRIM3#
main64330-22200-04i198104-198208
W/SPEAKER,BLUE,BLUE,TRIM8#
main64330-22200-06i198104-198407
W/SPEAKER,D-BROWN,BROWN,TRIM4#
main64330-22200-14i198208-198407
W/SPEAKER,BLUE,BLUE,TRIM8#
main64330-22210-01i198003-198208
W/SPEAKER & RR WIPER,BLACK,BLACK,TRIM2#
main64330-22210-04i198003-198208
W/SPEAKER & RR WIPER,BLUE,BLUE,TRIM8#
main64330-22210-06i198003-198208
W/SPEAKER & RR WIPER,D-BROWN,BROWN,TRIM4#
main64330-22220-01i198003-198208
W/SPEAKER,BLACK,BLACK,TRIM2#
main64330-22220-04i198003-198208
W/SPEAKER,BLUE,BLUE,TRIM8#
main64330-22220-06i198003-198208
W/SPEAKER,D-BROWN,BROWN,TRIM4#
main64330-22230-01i198003-198104
W/SPEAKER,BLACK,BLACK,TRIM2#
main64330-22230-04i198003-198104
W/SPEAKER,BLUE,BLUE,TRIM8#
main64330-22230-06i198003-198104
W/SPEAKER,D-BROWN,BROWN,TRIM4#
main64330-22310-04i198108-198208
EXTRA,BLUE,BLUE,TRIM8#
main64330-22310-06i198011-198208
EXTRA,BROWN,BROWN,TRIM4#
main64330-22360-01i198104-198208
BLACK,BLACK,TRIM2#
main64330-22360-02i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main64330-22360-04i198104-198208
BLUE,BLUE,TRIM8#
main64330-22360-06i198104-198208
D-BROWN,BROWN,TRIM4#
main64330-22360-14i198208-198407
BLUE,BLUE,TRIM8#
main64330-22370-02i198208-198407
W/SPEAKER, DEEP MAROON,RED/MAROON,TRIM3#
main64330-22370-06i198208-198407
W/SPEAKER,D-BROWN,BROWN,TRIM4#
main64330-22370-14i198208-198407
W/SPEAKER,BLUE,BLUE,TRIM8#
64334PAD, PACKAGE TRAY TRIM SILENCER
main64334-22040i198306-198407
W/O SPEAKER
main64334-22070i198306-198407
W/SPEAKER
64383GRILLE, SPEAKER, REAR
main64033-22010-02i198208-198407
RH,DEEP MAROON,RED/MAROON,TRIM3#
main64033-22010-04i198208-198407
RH,BLUE,BLUE,TRIM8#
main64033-22010-06i198208-198407
RH D-BROWN,BROWN,TRIM4#
main64034-22010-02i198208-198407
LH,DEEP MAROON,RED/MAROON,TRIM3#
main64034-22010-04i198208-198407
LH,BLUE,BLUE,TRIM8#
main64034-22010-06i198208-198407
LH,D-BROWN,BROWN,TRIM4#
main64383-22020-01×2i198003-198208
BLACK,BLACK,TRIM2#
main64383-22020-02×2i198208-198407
DEEP MAROON,RED/MAROON,TRIM3#
main64383-22020-04×2i198003-198208
BLUE,BLUE,TRIM8#
main64383-22020-06×2i198003-198208
D-BROWN,BROWN,TRIM4#
main64383-22020-14×2i198208-198407
BLUE,BLUE,TRIM8#
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
main64701-22100i198003-198208
main64701-22110i198003-198407
main64701-22120i198208-198407
64702COVER SUB-ASSY, LUGGAGE COMPARTMENT, FRONT
main64717-22030i198208-198407
64714COVER, LUGGAGE COMPARTMENT, RH
main64714-22080i198003-198407
64715COVER, LUGGAGE COMPARTMENT, LH
main64715-22070i198003-198208
main64715-22071i198208-198407
main64715-22080i198003-198208
main64715-22090i198208-198407
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
main64716-22080i198003-198208
main64716-22110i198208-198407
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-22030i198003-198407
RH
main64721-22050i198003-198208
RH
main64721-22080i198208-198407
RH
main64722-22040i198003-198407
LH
main64722-22050i198003-198208
LH,ESC
main64722-22060i198003-198208
LH
main64722-22110i198208-198407
LH
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-07158-03×4i198003-198407
GRAY,GRAY,TRIM2#
64726ACLIP, LUGGAGE TRIM, REAR
main64726-30020i198003-198208
main90467-22002-03i198208-198407
GRAY,GRAY,TRIM2#
64759COVER, SHOCK ABSORBER HEAD
main58731-22020×2i198003-198407
main58731-22030×2i198003-198407
64770COVER ASSY, SPARE WHEEL
main64770-12010i198208-198407
TEMPORARY TIRE
main64770-30050i198208-198407
*30; W/LSD
9018304046
main90183-04046
9053006001
main90530-06001
9356054010
main93560-54010

19 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CRESTA

This section contains 19 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CRESTA. Key components include: COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, BOARD, ROOM PARTITION, NO.1, PANEL ASSY, PACKAGE TRAY TRIM, PAD, PACKAGE TRAY TRIM SILENCER.
