Toyota CRESTA — MUDGUARD & SPOILER

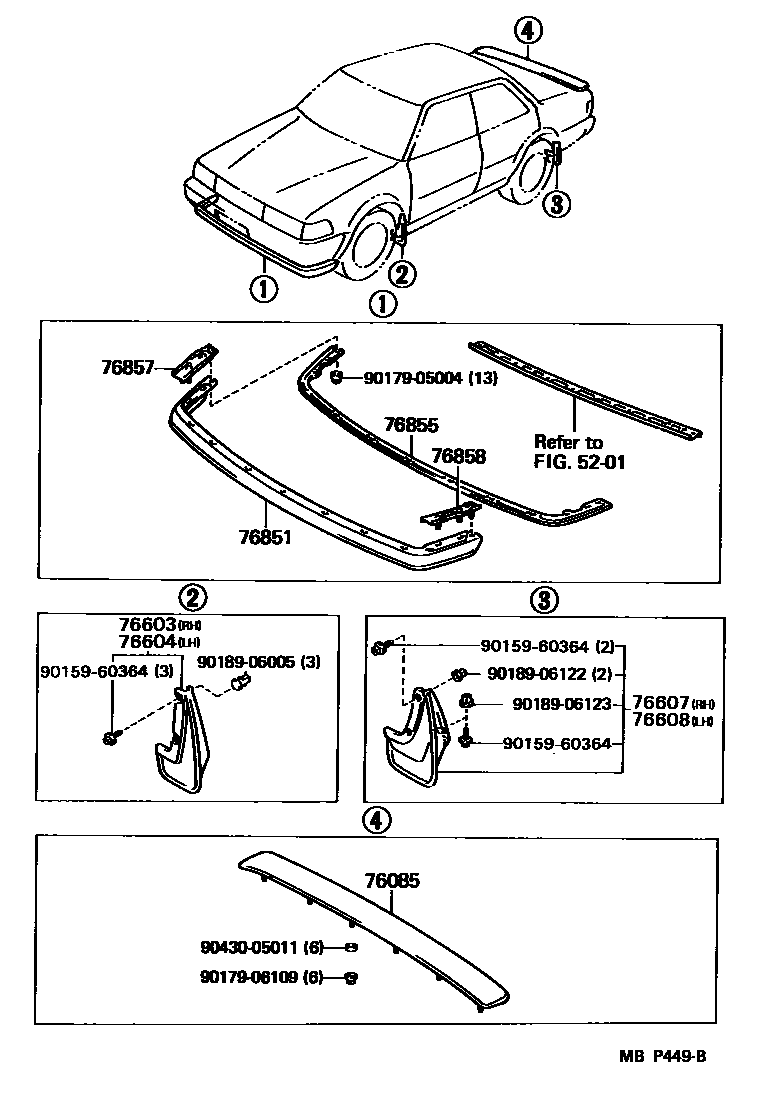

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

76085SPOILER SUB-ASSY, REAR

main76085-91603-01i199008-199210

BLACK M,24S

main76085-91603-02i198808-198908

DARK RED MICA,3H3

main76085-91603-03i198808-199008

MIST GRAY M,177

main76085-91603-04i198808-199008

BLUE MICA,8E3

main76085-91603-05i199008-199210

BEIGE M.M,4J1

main76085-91603-07i199008-199210

DARK GRAYISH GREEN M,6L8

main76085-91603-08i198808-199210

SUPER WHITE 4,050

main76085-91603-12i199008-199210

DARK MAUVE MICA,3K1

main76085-91603-13i198808-199008

GRAY MICA M,170

main76085-91603-14i199008-199210

BLUE M,869

main76085-91603-18i198908-199210

WHITE PEARL MICA,049 ,27N; WHITE PEARL MICA,27N

main76085-91603-23i198808-198908

WARM SILVER M,23K

main76085-91603-33i198908-199210

DARK BLUEISH GRAY M,183

main76085-91603-43i198908-199008

GREENISH SILVER M,174

main76085-91603-53i199008-199210

BLUISH GRAY M,182

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-29065-02i198903-198908

main76621-29065-03i198903-199008

main76621-29065-04i198808-198903

BLUE MICA,8E3

main76621-29065-05i199008-199009

main76621-29065-07i199008-199009

main76621-29065-08i198903-199009

main76621-29065-09i199008-199009

BLUEISH GRAY M,182

main76621-29065-11i198912-198912

main76621-29065-13i198808-199008

GRAY MICA M,170

main76621-29065-18i199004-199008

main76621-29065-24i199008-199009

main76621-29065-31i199008-199009

BLACK,24S

main76621-29065-42i199008-199009

main76621-29065-43i198908-199008

main76621-29065-53i198908-199009

main76621-29066-05i199009-199210

main76621-29066-07i199009-199210

main76621-29066-08i199009-199210

main76621-29066-09i199009-199210

BLUISH GRAY M,182

main76621-29066-18i199112-199210

main76621-29066-24i199009-199210

main76621-29066-31i199009-199210

BLACK,24S

main76621-29066-42i199009-199210

main76621-29066-43i199009-199210

main76621-29066-53i199009-199210

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-29065-02i198903-198908

main76622-29065-03i198808-199008

MIST GRAY M,177

main76622-29065-04i198903-199008

main76622-29065-05i199008-199009

main76622-29065-07i199008-199009

main76622-29065-08i198903-199009

main76622-29065-09i199008-199009

BLUEISH GRAY M,182

main76622-29065-11i198912-198912

main76622-29065-13i198808-199008

GRAY MICA M,170

main76622-29065-18i198808-198908

WHITE PEARL MICA,049 ,23K; WHITE PEARL MICA,23K

main76622-29065-24i199008-199009

main76622-29065-31i199008-199009

BLACK,24S

main76622-29065-42i199008-199009

main76622-29065-43i198908-199008

main76622-29065-53i198908-199009

main76622-29066-05i199009-199210

main76622-29066-07i199009-199210

main76622-29066-08i199009-199210

main76622-29066-09i199009-199210

BLUISH GRAY M,182

main76622-29066-18i199112-199210

main76622-29066-24i199009-199210

main76622-29066-31i199009-199210

BLACK,24S

main76622-29066-42i199009-199210

main76622-29066-43i199009-199210

main76622-29066-53i199009-199210

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-29085-02i198903-198908

main76625-29085-03i198808-199008

MIST GRAY M,177

main76625-29085-04i198808-198903

BLUE MICA,8E3

main76625-29085-05i199008-199009

main76625-29085-07i199008-199009

main76625-29085-08i198808-199009

SUPER WHITE 4,050

main76625-29085-09i199008-199009

BLUEISH GRAY M,182

main76625-29085-11i198912-198912

main76625-29085-13i198903-199008

main76625-29085-18i198808-198908

WHITE PEARL MICA,049 ,23K; WHITE PEARL MICA,23K

main76625-29085-24i199008-199009

main76625-29085-31i199008-199009

BLACK,24S

main76625-29085-42i199008-199009

main76625-29085-43i198908-199008

main76625-29085-53i198908-199009

main76625-29086-05i199009-199210

main76625-29086-07i199009-199210

main76625-29086-08i199009-199210

main76625-29086-09i199009-199210

BLUISH GRAY M,182

main76625-29086-18i199112-199210

main76625-29086-24i199009-199210

main76625-29086-31i199009-199210

BLACK,24S

main76625-29086-42i199009-199210

main76625-29086-43i199009-199210

main76625-29086-53i199009-199210

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-29085-02i198808-198908

DARK RED MICA,3H3

main76626-29085-03i198808-199008

MIST GRAY M,177

main76626-29085-04i198903-199008

main76626-29085-05i199008-199009

main76626-29085-07i199008-199009

main76626-29085-08i198903-199009

main76626-29085-09i199008-199009

BLUEISH GRAY M,182

main76626-29085-11i198912-198912

main76626-29085-13i198903-199008

main76626-29085-18i198808-198908

WHITE PEARL MICA,049 ,23K; WHITE PEARL MICA,23K

main76626-29085-24i199008-199009

main76626-29085-31i199008-199009

BLACK,24S

main76626-29085-42i199008-199009

main76626-29085-43i198908-199008

main76626-29085-53i198908-199009

main76626-29086-05i199009-199210

main76626-29086-07i199009-199210

main76626-29086-08i199009-199210

main76626-29086-09i199009-199210

BLUISH GRAY M,182

main76626-29086-18i199109-199110

main76626-29086-24i199009-199210

main76626-29086-31i199009-199210

BLACK,24S

main76626-29086-42i199009-199210

main76626-29086-43i199009-199210

main76626-29086-53i199009-199210

76851COVER, FRONT SPOILER

main76851-91601-02i198808-198908

DARK RED MICA,3H3

main76851-91601-03i198808-199008

MIST GRAY M,177

main76851-91601-04i198808-199008

BLUE MICA,8E3

main76851-91601-08i198910-199008

SUPER WHITE 4,050

main76851-91601-13i198808-199008

GRAY MICA M,170

main76851-91601-18i199004-199008

main76851-91601-23i198908-199008

GREENISH SILVER M,174 ,27N

main76851-91601-33i198910-199008

DARK BLUEISH GRAY M,183

76855RETAINER, FRONT SPOILER, LOWER NO.1 CENTER

main76855-91601i199105-199210

76857RETAINER, FRONT SPOILER SIDE, RH

main76857-91601i199112-199210

76858RETAINER, FRONT SPOILER SIDE, LH

main76858-91601i199112-199210

9015960364

main90159-60364

9017905004

main90179-05004

9017906109

main90179-06109

9018906005

main90189-06005

9018906122

main90189-06122

9018906123

main90189-06123

9043005011

main90430-05011

17 parts on this diagram · 1 diagram in section

MUDGUARD & SPOILER for Toyota CRESTA

This section contains 17 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota CRESTA. Key components include: FRONT BUMPER & BUMPER STAY, SPOILER SUB-ASSY, REAR, MUDGUARD SUB-ASSY, FRONT FENDER, RH, MUDGUARD SUB-ASSY, FRONT FENDER, LH, MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH.
