Toyota CRESTA — MOUNTING

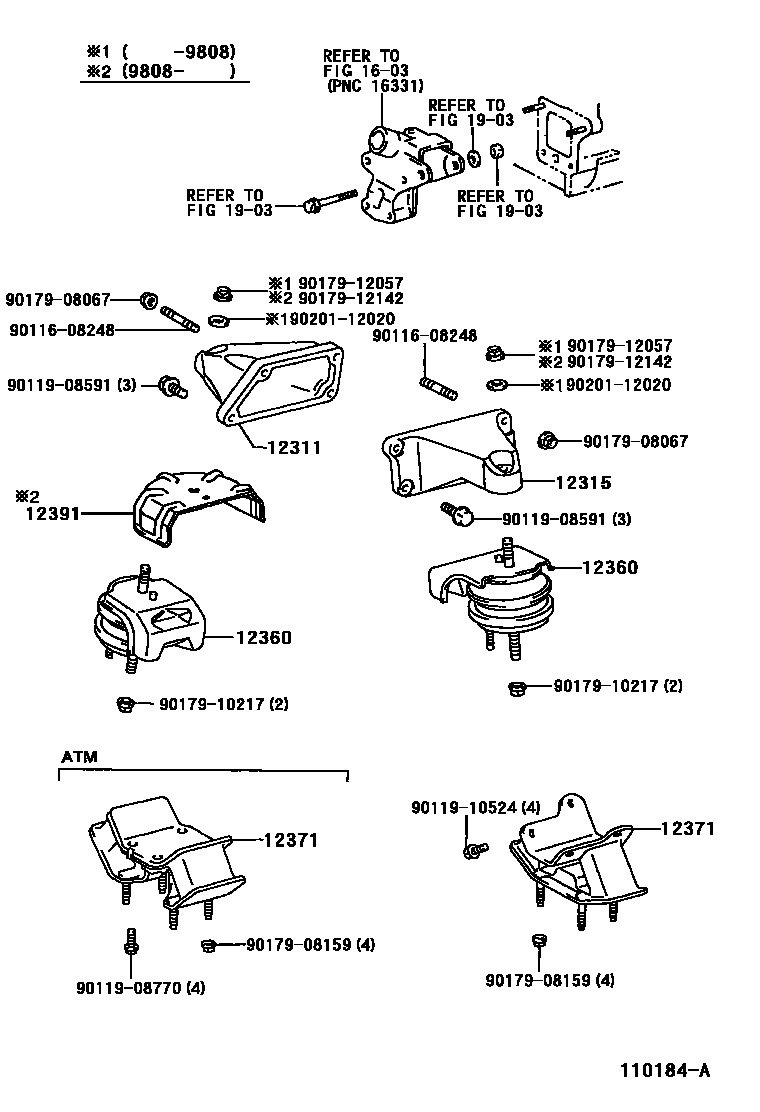

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-46100i199609-200106

main12311-46110i199609-200106

main12311-54211i199609-199908

main12311-70120i199609-199808

main12311-70130i199808-200106

main12311-70140i199808-200106

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-46060i199609-200106

main12315-46100i199609-200106

main12315-54020i199609-199908

main12315-70100i199609-199808

main12315-70110i199808-200106

main12315-70120i199808-200106

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12360-46080i199609-200106

main12360-46121i199609-199901

main12360-46122i199901-200106

main12360-70030i199609-199901

main12360-70031i199901-200106

main12380-46030i199609-200106

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-46070i199609-200106

main12371-46130i199609-200106

main12371-54130i199609-199908

main12371-70050i199609-200106

main12371-70060i199609-199808

main12380-46040i199609-200106

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-46020i199609-200106

main12391-46040i200103-200106

main12391-70010i199808-200106

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1903ALTERNATOR

→ Go to FIG 19-03

9011608248

main90116-08248

9011908591

main90119-08591

9011908770

main90119-08770

9011910524

main90119-10524

9017908067

main90179-08067

9017908159

main90179-08159

9017910217

main90179-10217

9017912057

main90179-12057

9017912142

main90179-12142

9020112020

main90201-12020

17 parts on this diagram · 5 diagrams in section

MOUNTING for Toyota CRESTA

This section contains 35 genuine Toyota parts for the MOUNTING system of the Toyota CRESTA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, INSULATOR ASSY, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, FRONT.
