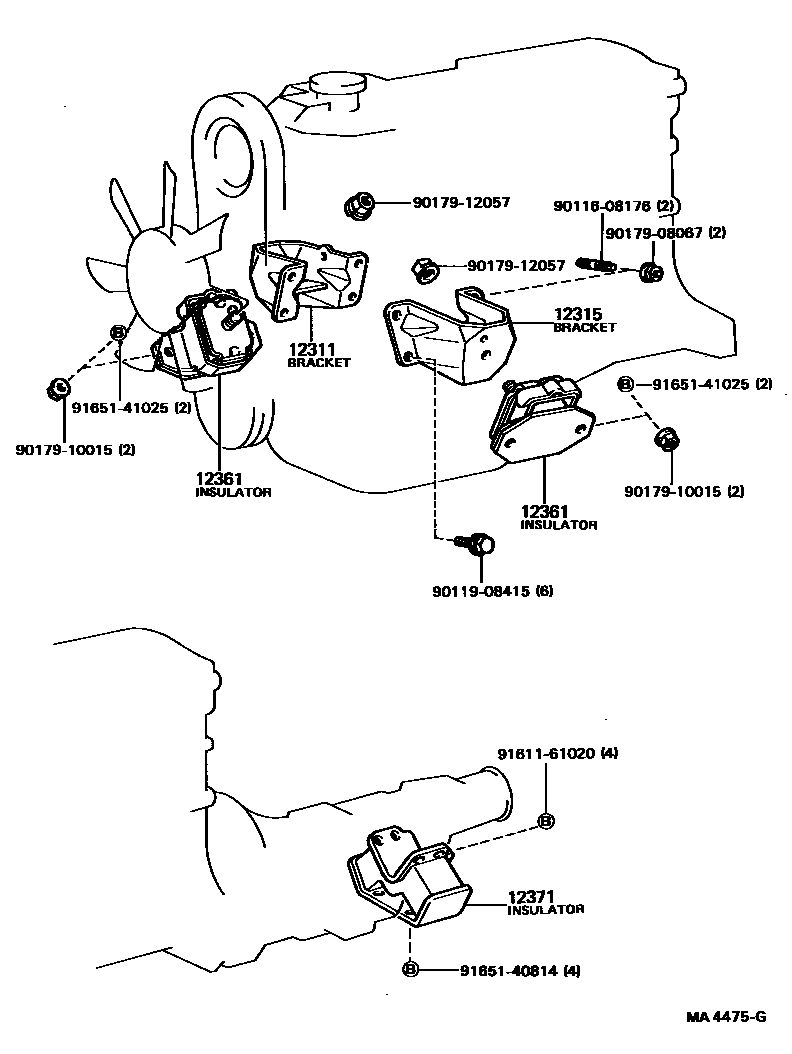

Toyota CRESTA — MOUNTING

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-41051iMTEU..MX71198408-198510

main12311-54070i2L#..LX70198408-198808

main12311-63010i1SU..SX70198408-198808

main12311-70050i1GEU,1GGEU..GX71198408-198608

main12311-70090i1GGEU..GX71198608-198808

main12311-88340i1GGTEU..GX71198510-198808

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54040i2L#..LX70198408-198808

main12315-41071iMTEU..MX71198408-198510

main12315-63010i1SU..SX70198408-198808

main12315-70011i1GEU,1GGEU..GX71198408-198608

main12315-70060i1GGEU..GX71198608-198808

sub12315-70061

main12315-88340i1GGTEU..GX71198510-198808

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-41080×2i1GEU..GX71198408-198808

sub12361-49125

main12361-41082×2iMTEU..MX71198408-198510

main12361-54150×2i2L#..LX70198408-198410

main12361-54151×2i2L#..LX70198410-198507

sub12361-54180

main12361-54152×2i2L#..LX70198507-198808

sub12361-54153

main12361-63010×2i1SU..SX70198408-198607

TOYO

main12361-63020×2i1SU..SX70198408-198808

MARUYASU

main12361-70030×2i1GGTEU..GX71198608-198703

main12361-70031×2i1GGTEU..GX71198703-198808

main12361-70070×2i1GGEU..GX71198608-198808

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i1GEU,1GG#..GX71198408-198808

main12371-34030i1SU..SX70..5F198511-198808

main12371-54040i2LT..LX70..4FC198408-198808

9011608176

main90116-08176

9011908415

main90119-08415

9017908067

main90179-08067

9017910015

main90179-10015

9017912057

main90179-12057

9161161020

main91611-61020

9165140814

main91651-40814

9165141025

main91651-41025

12 parts on this diagram · 6 diagrams in section
