Toyota CRESTA — MIRROR

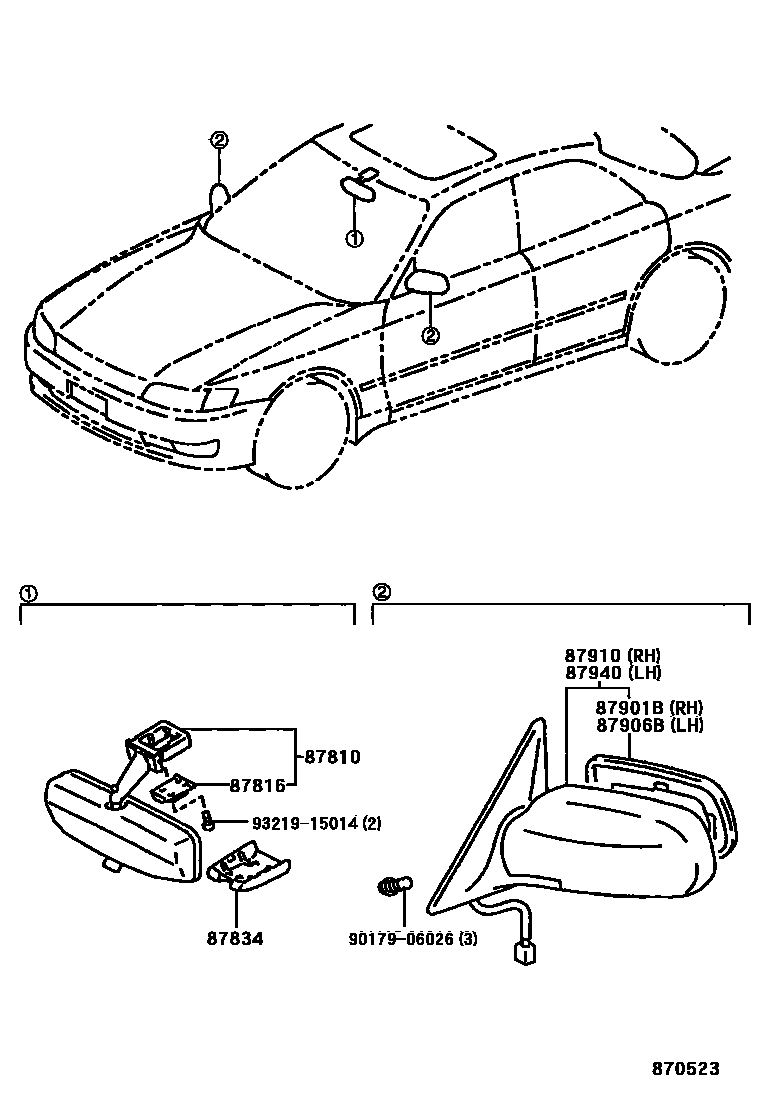

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-22230-B1i199609-199808

BLUE GRAY,TRIM1#

main87810-22230-B1i199808-200106

BLUE GRAY,TRIM2#

main87810-22230-E1i199609-200106

ORCHID,TRIM4#

main87810-22230-G1i199609-200106

SAGE,TRIM6#

87816SPRING, INNER REAR VIEW MIRROR

main74372-50010i199609-200106

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-22070-B1i199609-199808

BLUE GRAY,TRIM1#

main87834-22070-B1i199808-200106

BLUE GRAY,TRIM2#

main87834-22070-E1i199609-200106

ORCHID,TRIM4#

main87834-22070-G1i199609-200106

SAGE,TRIM6#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-2A300i200012-200106

main87931-2A300i200004-200012

main87931-2A370i199609-200106

main87931-2A380i199609-200106

main87931-2A410i199609-200106

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-2A370i199609-200106

main87961-2A380i199609-200106

main87961-2A410i199609-200106

main87961-2A440i200012-200106

main87961-2A440i200004-200012

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-2A090i199609-199808

main87910-2A100-A0i199609-200106

main87910-2A100-A1i199609-199808

main87910-2A100-A1i199808-200106

main87910-2A100-A2i199907-200003

main87910-2A100-A2i199812-199907

main87910-2A100-B0i199609-199708

main87910-2A100-B1i199804-199808

main87910-2A100-B1i199708-200106

main87910-2A100-C0i199708-199709

main87910-2A100-C0i199703-199808

main87910-2A100-D0i199609-199808

main87910-2A100-G0i199609-199708

main87910-2A100-G1i199808-200106

main87910-2A100-J0i199609-200106

main87910-2A110-A0i199609-200106

main87910-2A110-A1i199609-199808

main87910-2A110-A1i199808-200106

main87910-2A110-A2i199812-199907

main87910-2A110-A2i199907-200003

main87910-2A110-B0i199609-199708

main87910-2A110-B1i199804-199808

main87910-2A110-B1i199708-200106

main87910-2A110-C0i199703-199808

main87910-2A110-C0i199708-199709

main87910-2A110-D0i199609-199808

main87910-2A110-G0i199609-199708

main87910-2A110-G1i199808-200106

main87910-2A110-J0i199609-200106

main87910-2A300-A0i200004-200012

main87910-2A300-A0i200012-200106

main87910-2A300-A1i200012-200106

main87910-2A300-A1i200004-200012

main87910-2A390-A0i199609-200106

main87910-2A390-A1i199808-200106

main87910-2A390-A1i199609-199808

main87910-2A390-B0i199609-199708

main87910-2A390-B1i199708-200106

main87910-2A390-C0i199703-199808

main87910-2A390-D0i199609-199808

main87910-2A390-G0i199609-199708

main87910-2A390-G1i199808-200106

main87910-2A390-J0i199609-200106

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-2A300i199609-199808

main87940-2A310-A0i199609-200106

main87940-2A310-A1i199808-200106

main87940-2A310-A1i199609-199808

main87940-2A310-A2i199907-200003

main87940-2A310-A2i199812-199907

main87940-2A310-B0i199609-199708

main87940-2A310-B1i199708-200106

main87940-2A310-B1i199804-199808

main87940-2A310-C0i199703-199808

main87940-2A310-C0i199708-199709

main87940-2A310-D0i199609-199808

main87940-2A310-G0i199609-199708

main87940-2A310-G1i199808-200106

main87940-2A310-J0i199609-200106

main87940-2A320-A0i199609-200106

main87940-2A320-A1i199808-200106

main87940-2A320-A1i199609-199808

main87940-2A320-A2i199907-200003

main87940-2A320-A2i199812-199907

main87940-2A320-B0i199609-199708

main87940-2A320-B1i199708-200106

main87940-2A320-B1i199804-199808

main87940-2A320-C0i199708-199709

main87940-2A320-C0i199703-199808

main87940-2A320-D0i199609-199808

main87940-2A320-G0i199609-199708

main87940-2A320-G1i199808-200106

main87940-2A320-J0i199609-200106

main87940-2A390-A0i199609-200106

main87940-2A390-A1i199609-199808

main87940-2A390-A1i199808-200106

main87940-2A390-B0i199609-199708

main87940-2A390-B1i199708-200106

main87940-2A390-C0i199703-199808

main87940-2A390-D0i199609-199808

main87940-2A390-G0i199609-199708

main87940-2A390-G1i199808-200106

main87940-2A390-J0i199609-200106

main87940-2A440-A0i200004-200012

main87940-2A440-A0i200012-200106

main87940-2A440-A1i200004-200012

main87940-2A440-A1i200012-200106

9017906026

main90179-06026

9321915014

main93219-15014

9 parts on this diagram · 1 diagram in section

MIRROR for Toyota CRESTA

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota CRESTA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
