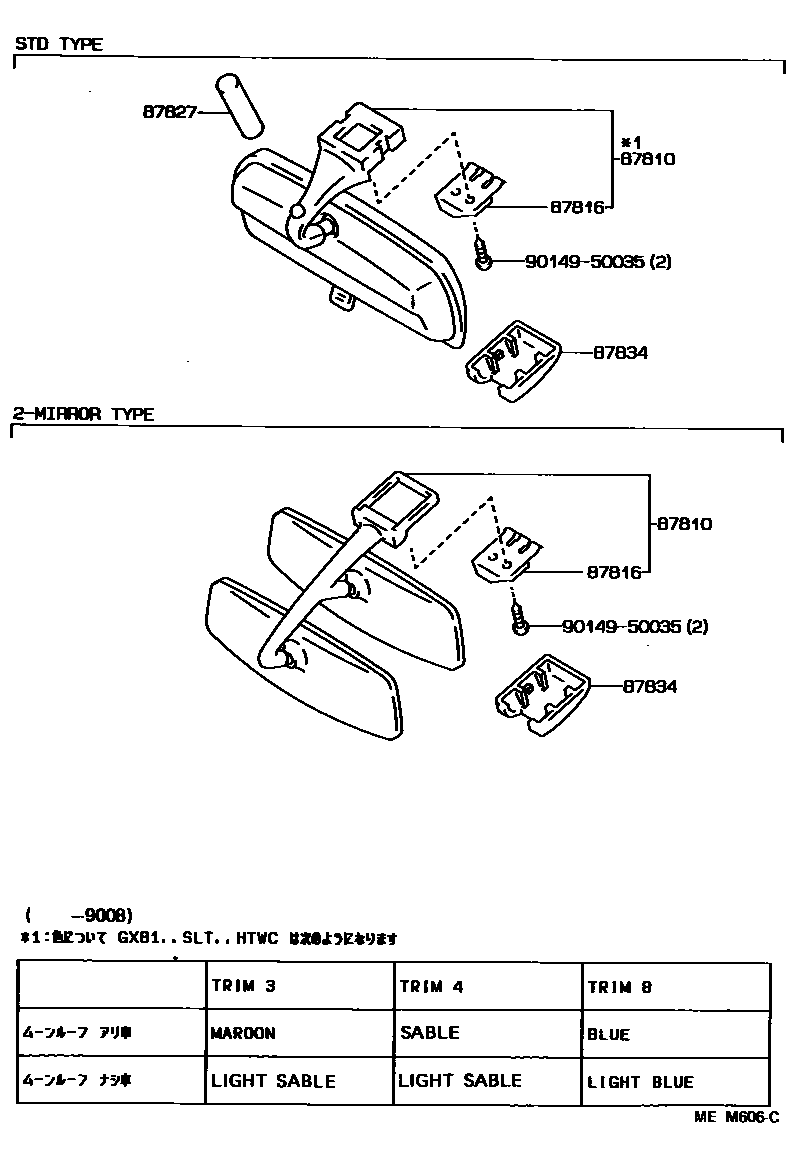

Toyota CRESTA — MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-22200-02iGX81..GT,SLT,SLTG198808-198903

MAROON,TRIM3#

main87810-22200-04iGX81,MX83..GT,SLT,SLTG198808-199008

BLUE,TRIM8#

main87810-22200-06iGX81..GT,SLT,SLTG198808-198903

SABLE,TRIM4#

main87810-22200-12iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

NEW MAROON,TRIM3#

main87810-22200-13iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

MEDIUM GRAY,TRIM1#

main87810-22200-14iGX81,LX80,SX80..(SCM,SDX,SLT)..(CI,DSL,HTWC,TD)198808-199008

LIGHT BLUE,TRIM8#

main87810-22200-16iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

LIGHT SABLE,TRIM4#

main87810-91502iLX80,SX80,YX80..KYO198908-199008

main87810-91502-03iLX80,SX80,YX80..KYO199008-199210

MEDIUM GRAY,TRIM1#

main87810-91502-24iLX80,SX80,YX80..KYO198808-198908

LIGHT BLUE,TRIM8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22050iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199210

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-14021-34iLX80,SX80,YX80..KYO198808-199008

BLUE,TRIM8#

main87834-14021-43iLX80,SX80,YX80..KYO199008-199210

MEDIUM GRAY,TRIM1#

main87834-22050-02iGX81,MX83..SPC,TWC,TWT198808-199008

MAROON,TRIM3#

main87834-22050-04iGX81,LX80,SX80..(SCM,SDX,SLT)..(CI,DSL,HTWC,TD)198808-199008

BLUE,TRIM8#

main87834-22050-06iGX81,LX80,SX80..(SCM,SDX,SLT)..(CI,DSL,HTWC,TD)198808-199008

SABLE,TRIM3#,4#

main87834-22050-12iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

NEW MAROON,TRIM3#

main87834-22050-13iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

MEDIUM GRAY,TRIM1#

main87834-22050-14iGX81,MX83..SPC,TWC,TWT198808-199008

BLUE,TRIM8#

main87834-22050-16iGX81..TWT198908-199008

SABLE,TRIM4#

9014950035

main90149-50035

5 parts on this diagram · 2 diagrams in section
