Toyota CRESTA — METER

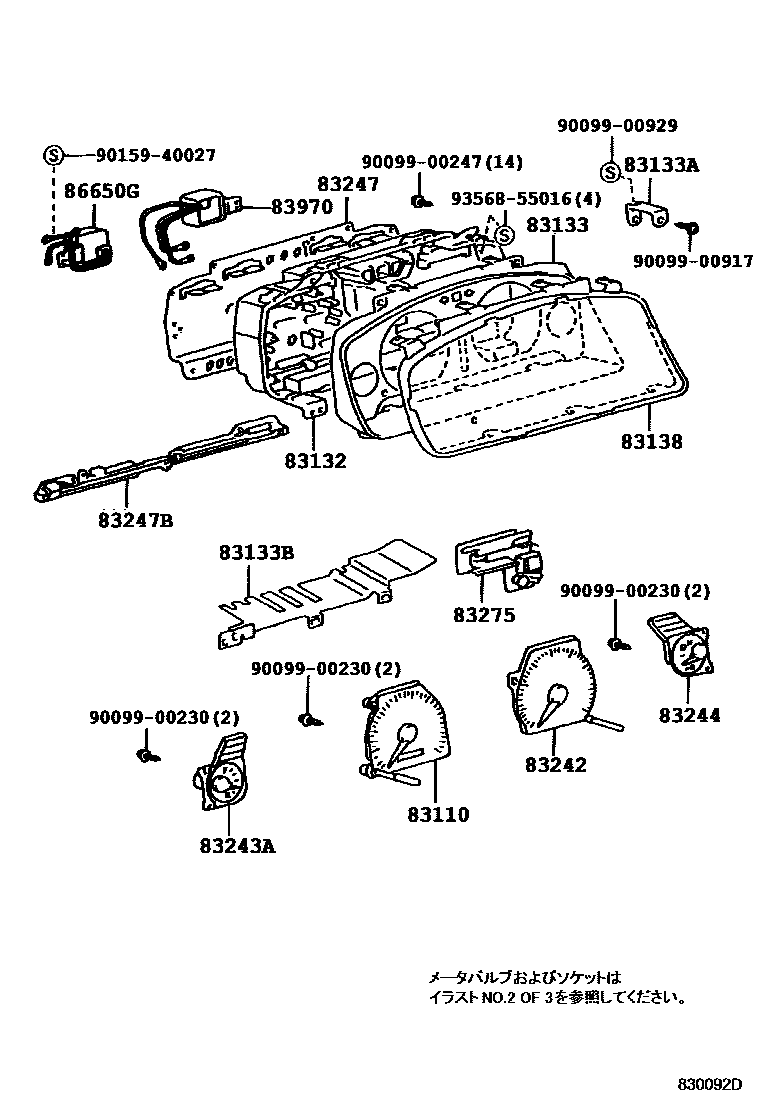

Parts diagram

83110SPEEDOMETER ASSY

main83220-22010i199808-200106

main83220-22010i199801-199808

main83220-22020i199609-200106

main83220-22030i199609-199908

83132CASE, COMBINATION METER

main83841-22010i199609-200106

main83841-22010i199808-200106

main83841-22050i199609-199808

main83841-22060i199808-200106

main83841-22060i199609-199808

main83841-22070i199609-200106

main83841-22080i199609-199908

main83841-22130i199609-200106

main83841-22140i199801-199808

main83841-22140i199808-200106

main83841-22220i200105-200106

main83841-22220i199808-200106

main83841-22240i199808-200106

main83842-22010i199808-200106

main83842-22010i199609-200106

83133PLATE, COMBINATION METER, NO.1

main83811-22040i199801-199808

main83811-22040i199808-200106

main83811-22050i199609-199808

main83811-22060i199609-200106

main83811-22070i199609-200106

83133APLATE, COMBINATION METER, NO.2

main83811-22080i199609-200106

83133BPLATE, COMBINATION METER, NO.3

main83811-22090i199609-200106

83138GLASS, SPEEDOMETER

main83852-22010i199609-200106

main83852-22040i199801-199808

main83852-22040i199808-200106

main83852-22050i199609-200106

83242TACHOMETER ASSY, ENGINE

main83881-22050i199609-199808

main83881-22080i199609-199908

main83881-22090i199609-200106

main83881-22110i199702-200106

main83881-22120i199609-200106

main83881-22140i199801-199808

main83881-22160i199808-200106

main83881-22170i199808-200106

main83881-22300i199808-200106

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-22040i199801-199808

main83882-22040i199808-200106

main83882-22050i199609-200106

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-22040i199801-199808

main83883-22040i199808-200106

main83883-22050i199609-200106

83247PLATE, METER CIRCUIT

main83861-22010i199609-199708

main83861-22011i199708-199808

main83861-22020i199609-199708

main83861-22021i199708-199808

main83861-22040i199801-199808

main83861-22070i199609-199808

main83861-22080i199609-199808

main83861-22150i199808-200106

main83861-22160i199808-200106

main83861-22200i199808-200106

main83861-22210i199808-199908

main83861-22240i199808-200106

main83861-22270i199808-200106

83247BPLATE, METER CIRCUIT, NO.2

main83864-22050i199609-200106

main83864-22170i199808-200106

83275PLATE,COMPUTER METER CIRCUIT NO.1

main83275-22050i199609-200106

83970BUZZER ASSY, REVERSE WARNING

main83970-20010i199801-199808

main83970-20010i199609-200106

86650GBUZZER ASSY

main86650-12030i199609-200106

9009900230

main90099-00230

9009900247

main90099-00247

9009900917

main90099-00917

9009900929

main90099-00929

9015940027

main90159-40027

9356855016

main93568-55016

20 parts on this diagram · 11 diagrams in section

METER for Toyota CRESTA

This section contains 55 genuine Toyota parts for the METER system of the Toyota CRESTA. Key components include: SPEEDOMETER DRIVEN GEAR (MTM), BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, WIRE, METER.
