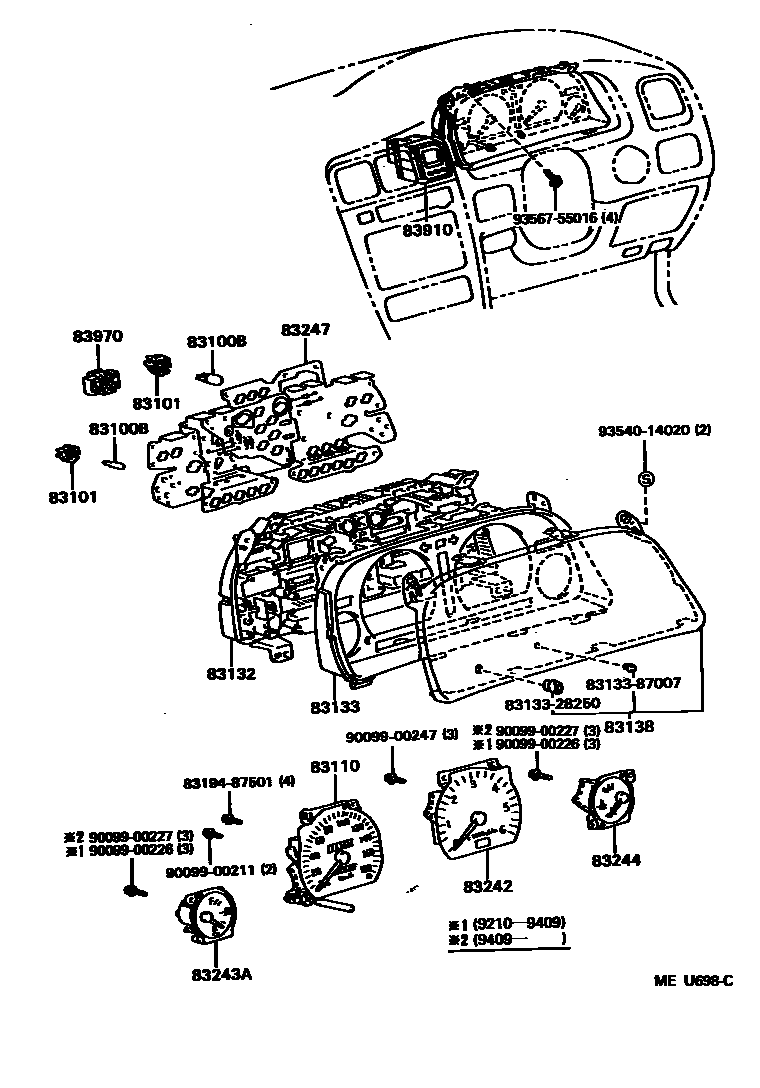

Toyota CRESTA — METER

0001 1ANALOG 0002 1DIGITAL 0003 1

83100BBULB, COMBINATION METER, NO.1

main83109-24020×4iGX90,JZX90,93,LX90,SX90..SC,SLT,SUF,TOUS,TOUV199210-199609

main83109-30070iGX90,JZX90,93,LX90,SX90..SC,SLT,SUF,TOUS,TOUV199210-199609

main83119-2A020×4iJZX90..SLTG199210-199409

main83119-2A040iGX90,JZX90,93..ATM..SLT199409-199609

main83119-2A060×7iJZX90,91..SLTG199210-199409

main83119-2A080×4iJZX90,93..SLT199210-199409

main83119-32010iGX90,JZX90,93,LX90,SX90..SC,SLT,SUF,TOUS,TOUV199210-199609

main84999-30020×9iJZX90,93..SLT199210-199609

main90981-11018×18iSX90..ATM199409-199609

main99132-12034×4iLX90..SUF;SX90..ATM..SUF199210-199310

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4iGX90,JZX90,93,LX90,SX90..SC,SLT,SUF,TOUS,TOUV199210-199609

main83101-14040×12iLX90..MTM..SC199210-199310

main83101-30050iGX90,JZX90,LX90,SX90..SC,SLT,SUF,TOUS,TOUV199210-199409

12V 2.0W

main83101-32020iGX90,JZX90,LX90,SX90..SC,SLT,SUF,TOUS,TOUV199210-199409

14V 3.0W

83110SPEEDOMETER ASSY

main83110-2A850iGX90,JZX90,93,SX90..SC,SLT,SUF,TOUS,TOUV199210-199609

main83110-2A860iLX90199210-199609

83132CASE, COMBINATION METER

main83132-2A670iJZX90..ATM..TOUV199210-199409

main83132-2A690iJZX90..MTM199210-199409

main83132-2A730iGX90..ATM199210-199409

main83132-2A770iGX90,SX90..MTM199210-199409

main83132-2A790iSX90..ATM199210-199409

main83132-2A830iLX90..ATM199210-199409

main83132-2A870iJZX90..SLT,TOUS199210-199409

main83132-2A880iGX90,JZX90,93..ATM..SLT199210-199609

main83132-2A890iLX90..MTM199210-199409

main83132-2C010iJZX93..SLT199310-199409

main83132-2C030iJZX90..ATM..TOUV199409-199609

main83132-2C050iJZX90..MTM199409-199609

main83132-2C090iGX90,JZX90..ATM..(SLT,TOUS)199409-199609

main83132-2C110iGX90,SX90..MTM199409-199609

main83132-2C130iSX90..ATM199409-199609

main83132-2C150iLX90..ATM199409-199609

main83132-2C170iLX90..MTM199409-199609

main83132-2C190iJZX93..SLT199409-199609

83133PLATE, COMBINATION METER, NO.1

main83133-2A190iJZX93..SLT;JZX90..ATM..TOUV199409-199609

main83133-2A210iJZX90..MTM199210-199409

main83133-2A230iGX90..ATM199210-199409

main83133-2A250iLX90..ATM199210-199609

main83133-2A270iLX90..MTM..SUF199210-199310

main83133-2A290iSX90..ATM199210-199609

main83133-2A310iGX90,LX90,SX90..MTM199409-199609

83138GLASS, SPEEDOMETER

main83138-22550iGX90,JZX90,93,SX90..SC,SLT,SUF,TOUS,TOUV199210-199609

main83138-22570iLX90199210-199609

main83138-2A180iGX90,JZX90,93..ATM..SLT199210-199609

83242TACHOMETER ASSY, ENGINE

main83242-2A050iJZX90..TOUV199210-199609

main83242-2A070iJZX90..SLT,TOUS199210-199609

main83242-2A090iGX90199210-199609

main83242-2A110iSX90199210-199609

main83242-2A130iLX90199310-199409

main83242-2A150iJZX90..SLT,TOUS199210-199609

main83242-2A170iLX90..MTM199409-199609

main83242-2A190iJZX93..SLT199310-199609

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-22510iGX90,JZX90,93,LX90,SX90..SC,SLT,SUF,TOUS,TOUV199210-199609

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-22510iGX90,JZX90,93,LX90,SX90..SC,SLT,SUF,TOUS,TOUV199210-199609

83247PLATE, METER CIRCUIT

main83247-2A880iGX90,JZX90,93..ATM..SLT199210-199609

main83247-2C210iJZX90..MTM;GX90,JZX90,SX90..SC,SLT,SUF,TOUS199210-199409

main83247-2C230iLX90..SUF199210-199310

main83247-2C250iJZX90..ATM..TOUV199210-199409

main83247-2C270iJZX93..SLT199310-199409

main83247-2C290iJZX90..TOUV199409-199609

main83247-2C310iGX90,JZX90,SX90..SC,SLT,SUF,TOUS199409-199609

main83247-2C330iJZX93..SLT199409-199609

83910CLOCK ASSY

main83910-22460iGX90,JZX9#,LX90,SX90199210-199609

main83910-22470iJZX90,91..SLTG199210-199609

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iJZX90,91..SLTG199210-199409

MATUSHITA

main83970-20010iGX90,JZX90,93..ATM..SLT199409-199609

8313328250PLATE, COMBINATION METER, NO.1

main83133-28250

8313387007PLATE, COMBINATION METER, NO.1

main83133-87007

8319487501

main83194-87501

9009900211

main90099-00211

9009900226

main90099-00226

9009900227

main90099-00227

9009900247

main90099-00247

9354014020

main93540-14020

9356755016

main93567-55016

21 parts on this diagram · 3 diagrams in section
