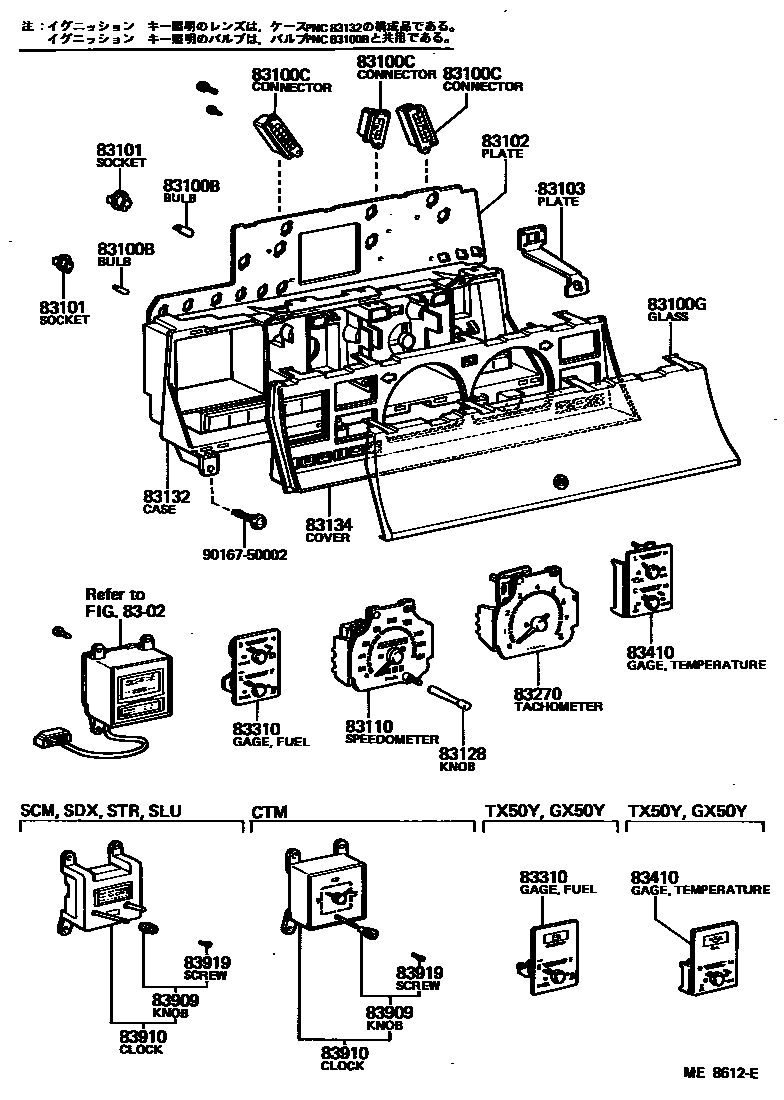

Toyota CRESTA — METER

0001 1 0002 1 0003 1 0004 1 0005 1

8302

83100BBULB, COMBINATION METER, NO.1

main90981-11018×19iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main99132-12034×9iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

83100CCONNECTOR, COMBINATION METER

main90980-08208iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

7-POLE

main90980-08209×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

13-POLE

83100GGLASS, COMBINATION METER

main83133-22450iMX61..SLU198308-198407

W/*DS

main83133-22470iGX61..SLU198208-198407

W/*CC & *DS

main83138-22200iGX61,MX61,SX60..SCM,SDX,SLU,STR198208-198407

W/*AS

main83138-22220iLX60..CTM198308-198407

main83138-22240iLX60..SCM198308-198407

main83138-2A070iMX61,SX60,TX50..CTM,STR198003-198407

main83138-2A080iGX5#,MX51,TX50..SCM,SDX,SLU,STR198003-198208

main83138-2A090iGX51,MX51..SLU198003-198208

W/*CC

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×2iGX61..SLU198208-198407

12V 3.4W,W/GREEN CAP BULB

main83101-14040×19iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

12V 1.4W

main83101-20040×9iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

12V 3.4W

main83101-32010×3iGX61..SLU198208-198407

12V 1.4W,W/GREEN CAP BULB

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-22130iTX50..CTM198003-198208

main83247-22140iGX50,TX50..SCM,SDX198003-198208

main83247-22150iGX51198003-198208

main83247-22300iMX51198110-198208

main83247-22320iSX60..CTM198208-198407

main83247-22340iSX60..SCM198208-198407

main83247-22360iGX61,MX61198208-198407

W/*AS

main83247-22600iLX60..CTM198308-198407

main83247-22620iLX60..SCM198308-198407

main83247-22690iMX61..SLU198308-198407

W/*DS

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-22160iGX5#,61,LX60,MX51,61,SX60,TX50..SCM,SDX,SLU,STR198003-198407

W/*AS

main83247-22710iGX61..SLU198208-198407

W/*DS

83110SPEEDOMETER ASSY

main83110-22430iGX5#,TX50198003-198208

main83110-22440iGX51198003-198208

W/*AD

main83110-22660iMX51198110-198208

main83110-22780iGX61,SX60..CTM,SCM,SDX198208-198407

main83110-22790iMX61198208-198407

W/*AS

main83110-22800iGX61..SLU198208-198407

W/*AS

main83110-22880iGX61..SLU198208-198407

W/*DS

main83110-2A080iLX60198308-198407

main83110-2A090iMX61..SLU198308-198407

W/*DS

83128KNOB, TRIP COUNTER

main83128-2A010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

W/*AS

main83128-32030iGX61..SLU198208-198407

W/*DS

83132CASE, COMBINATION METER

main83132-22060iMX51198110-198208

main83132-22080iLX60,SX60..CTM198208-198407

main83132-22100iLX60,SX60..SCM198208-198407

main83132-22120iGX61,MX61198208-198407

W/*AS

main83132-22310iMX61..SLU198308-198407

W/*DS

main83132-22330iGX61..5F..TWC198208-198407

W/*DS

main83132-2A060iTX50..CTM198003-198208

main83132-2A070iGX50,TX50..SCM,SDX198003-198208

main83132-2A080iGX51198003-198208

83134COVER, COMBINATION METER, NO.1

main83133-22390iMX61..SLU198308-198407

W/*DS

main83134-22800iGX61,MX61,SX60198208-198407

W/*AS

main83134-22820iLX60198308-198407

main83134-2A010iGX50,TX50198003-198208

main83134-2A020iGX51,MX51198003-198208

83270TACHOMETER ASSY, ENGINE

main83242-22110iTX50198003-198208

main83242-22120iGX5#,MX51198003-198208

main83242-22240iSX60198208-198407

main83242-22260iGX61198208-198407

W/*AS

main83242-22280iMX61198208-198308

main83242-22340iLX60198308-198407

main83242-22360iMX61198308-198407

W/*AS

main83270-22080iGX61..5F..TWC198208-198407

W/*DS

main83270-22090iGX61..4FC..TWC198302-198407

W/*DS

main83270-22100iMX61..SLU198308-198407

W/*DS

main83270-24010iGX61..SLU..EFI198208-198407

W/*DS

83310GAGE ASSY, FUEL RECEIVER

main83243-22160iGX50,TX50198003-198208

main83243-22170iGX51198003-198208

main83243-22200iMX51198110-198208

main83243-22220iLX60,SX60198208-198407

main83243-22240iGX61,MX61198208-198407

W/*AS

main83310-22050iGX61..SLU198208-198404

W/*DS

main83310-22051iGX61..SLU198404-198407

W/*DS

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-22060iGX50,TX50198003-198208

main83244-22070iGX51198003-198104

main83244-22071iGX51,MX51198104-198208

main83244-22140iLX60,SX60198208-198407

main83244-22160iGX61,MX61198208-198407

W/*AS

83909KNOB, CLOCK

main83909-14012iLX60,MX61,SX60..CTM,STR198208-198407

ANALOGUE

main83909-22180iGX5#,61,LX60,MX51,61,SX60,TX50..SCM,SDX,SLU,STR198003-198407

DIGITAL

83910CLOCK ASSY

main83910-22170iTX50..CTM198003-198208

ANALOGUE

main83910-22171iLX60,MX61,SX60..CTM,STR198208-198407

ANALOGUE

main83910-22180iGX5#,MX51,TX50..SCM,SDX,SLU,STR198003-198208

DIGITAL

main83910-22231iGX61,LX60,MX61,SX60..SCM,SDX,SLU,STR198208-198407

W/*AS,DIGITAL

main83910-22260iGX61..SLU198208-198407

W/*DS,DIGITAL

83919SCREW, CLOCK

main83919-12230iGX5#,61,LX60,MX51,61,SX60,TX50..SCM,SDX,SLU,STR198003-198407

DIGITAL

main83919-14012iTX50..CTM198003-198208

ANALOGUE

9016750002

main90167-50002
