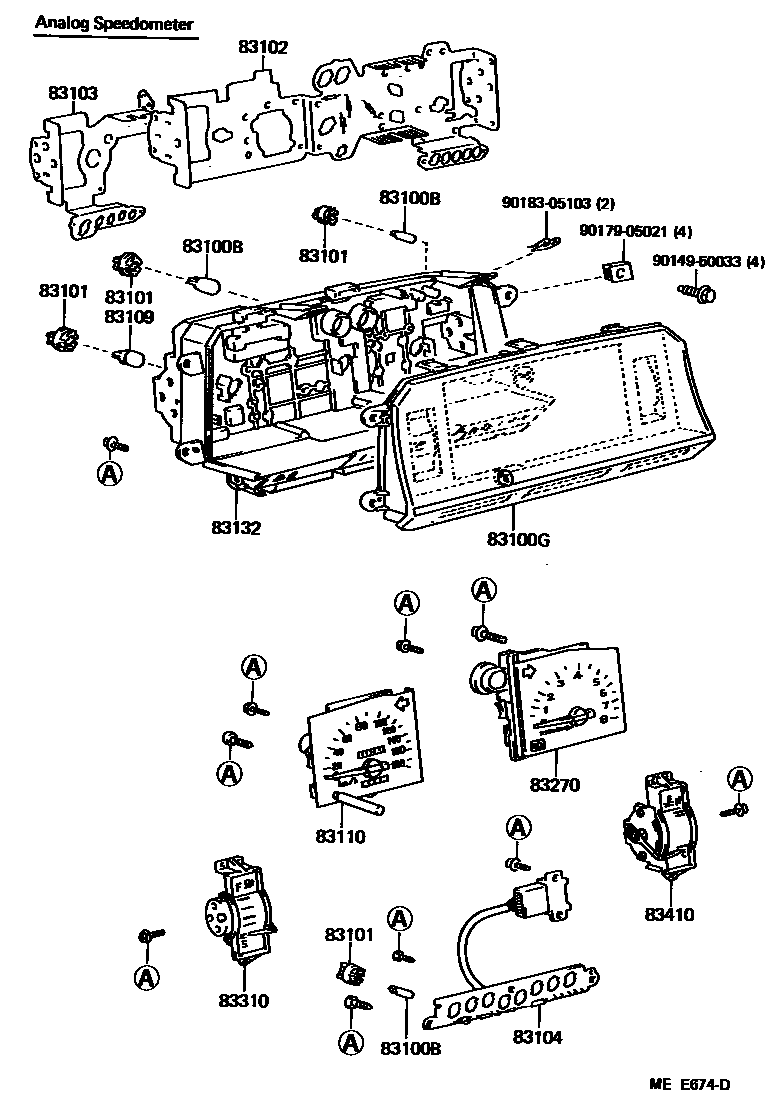

Toyota CRESTA — METER
83100BBULB, COMBINATION METER, NO.1
12V 1.2W,W/*DS
83100GGLASS, COMBINATION METER
*30
83101SOCKET SUB-ASSY, COMBINATION METER BULB
BULB=12V 3.4W
BULB=12V 1.4W
BULB=12V 1.2W,W/*DS
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
W/*AS
W/*DS
W/*AS
W/*AS
*30
W/O TACHOMETER
W/TACHOMETER
W/O TACHOMETER
W/*AS
W/TACHOMETER
W/*AS
W/*AS
W/*AS
83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2
83104PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3
83109BULB, COMBINATION METER, NO.2
12V 1.12W,W/*DS
83110SPEEDOMETER ASSY
83132CASE, COMBINATION METER
W/*AS
W/*AS
W/*AS
W/*AS
W/*AS
W/*AS
*30
W/*DS
83270TACHOMETER ASSY, ENGINE
83310GAGE ASSY, FUEL RECEIVER
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
9014950033
main90149-50033
9017905021
main90179-05021
9018305103
main90183-05103
15 parts on this diagram · 5 diagrams in section
METER for Toyota CRESTA
This section contains 52 genuine Toyota parts for the METER system of the Toyota CRESTA. Key components include: BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2.
