Toyota CRESTA — MAT & CARPET

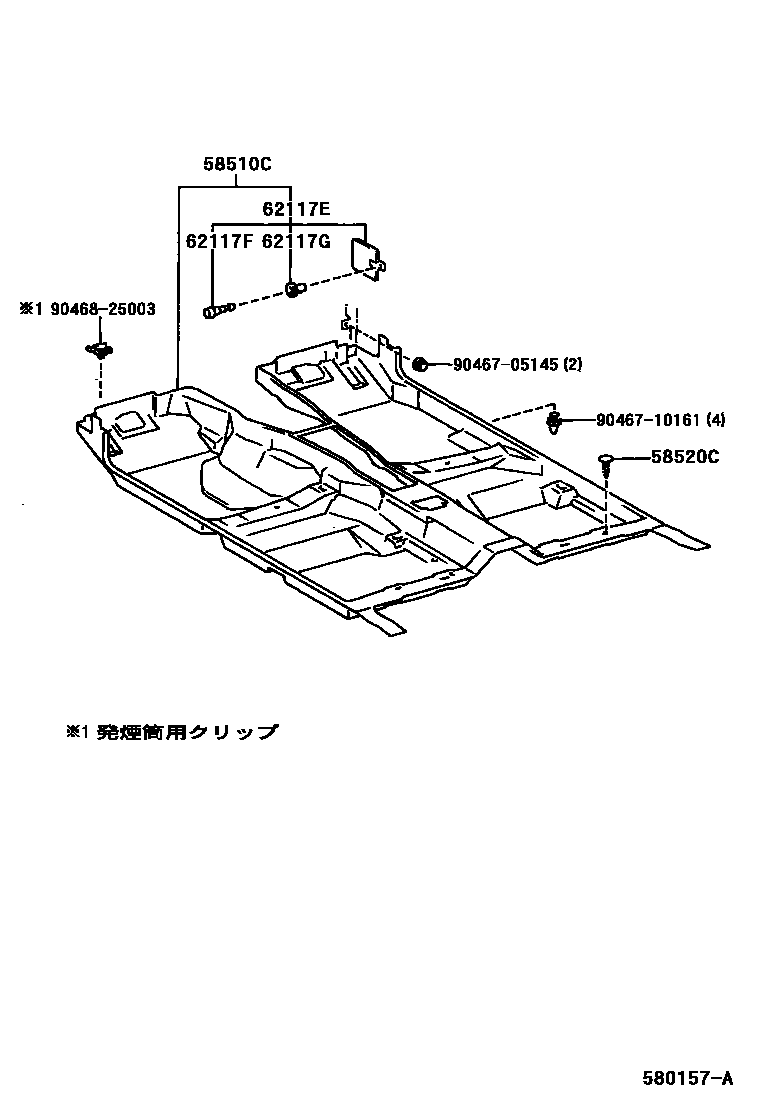

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-2A630-G1i199609-199808
SAGE,TRIM6#
main58510-2A640-E0i199609-199808
ORCHID,TRIM4#
main58510-2A640-G0i199609-199808
SAGE,TRIM6#
main58510-2A650-B1i199609-199808
DK. BLUE GRAY,TRIM1#
main58510-2A650-E0i199609-199808
ORCHID,TRIM4#
main58510-2A650-G0i199609-199808
SAGE,TRIM6#
main58510-2A660-E1i199609-199808
ORCHID,TRIM4#
main58510-2A660-G1i199609-199808
SAGE,TRIM6#
main58510-2A680-C0i199808-200005
BLACK,TRIM2#
main58510-2A680-E0i199808-200005
ORCHID,TRIM4#
main58510-2A680-G0i199808-200005
SAGE,TRIM6#
main58510-2A681-C0i200005-200106
BLACK,TRIM2#
main58510-2A681-E0i200005-200106
ORCHID,TRIM4#
main58510-2A681-G0i200005-200106
SAGE,TRIM6#
main58510-2A690-C0i199808-200005
BLACK,TRIM2#
main58510-2A690-E0i199808-200005
ORCHID,TRIM4#
main58510-2A690-G0i199808-200005
SAGE,TRIM6#
main58510-2A691-C0i200005-200106
BLACK,TRIM2#
main58510-2A691-E0i200005-200106
ORCHID,TRIM4#
main58510-2A691-G0i200005-200106
SAGE,TRIM6#
main58510-2A700-E0i199808-200005
ORCHID,TRIM4#
main58510-2A700-G0i199808-200005
SAGE,TRIM6#
main58510-2A701-E0i200005-200106
ORCHID,TRIM4#
main58510-2A701-G0i200005-200106
SAGE,TRIM6#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-06016-C0×6i199609-199808
BLACK,TRIM1#; BLACK,TRIM6#
62117ECOVER, COWL SIDE TRIM SERVICE HOLE
main62117-22120i199609-200106
62117FCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-05015-11i199609-200008
BLACK,TRIM4#,6#
main90467-05015-C0i200008-200106
BLACK,TRIM2#; BLACK,TRIM4#,6#
62117GCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-08031-11i199609-199808
BLACK,TRIM1#; BLACK,TRIM6#
main90467-08031-C0i200008-200106
BLACK,TRIM2#; BLACK,TRIM4#,6#
9046705145
main90467-05145
9046710161
main90467-10161
9046825003
main90468-25003

8 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota CRESTA

This section contains 8 genuine Toyota parts for the MAT & CARPET system of the Toyota CRESTA. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), COVER, COWL SIDE TRIM SERVICE HOLE, CLIP, NO.1(FOR COWL SIDE TRIM), CLIP, NO.2(FOR COWL SIDE TRIM).
