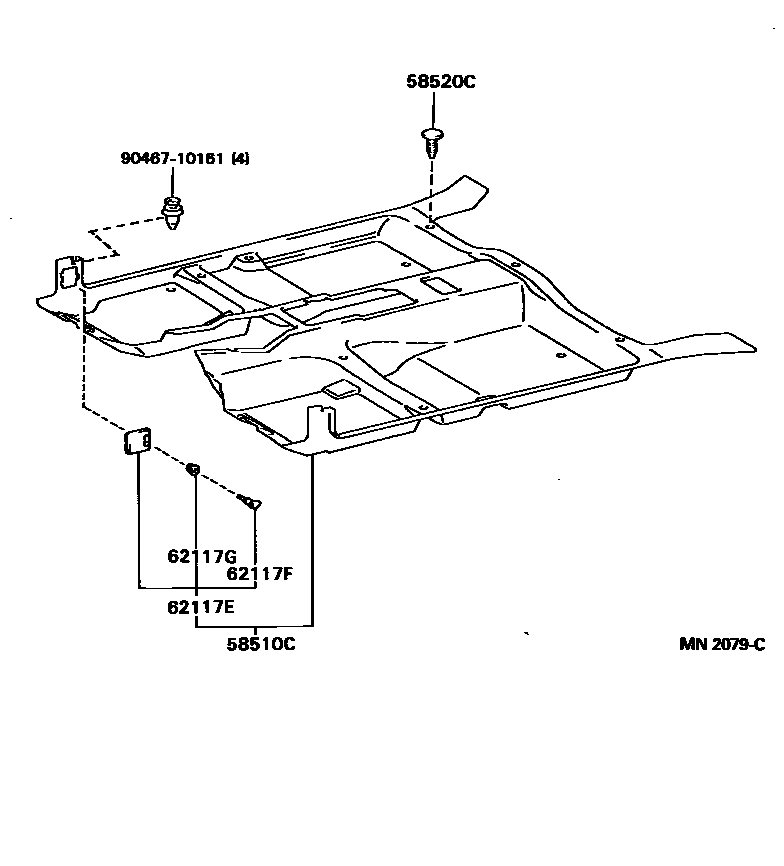

Toyota CRESTA — MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
BEIGE,TRIM4#
SABLE,TRIM4#
JADE,TRIM6#
JADE,TRIM6#
GRAYISH BLUE,TRIM8#
BEIGE,TRIM4#
SABLE,TRIM4#
JADE,TRIM6#
JADE,TRIM6#
GRAYISH BLUE,TRIM8#
GRAYISH BLUE,TRIM8#
BEIGE,TRIM4#
JADE,TRIM6#
GRAYISH BLUE,TRIM8#
BEIGE,TRIM4#
SABLE,TRIM4#
JADE,TRIM6#
JADE,TRIM6#
GRAYISH BLUE,TRIM8#
SABLE,TRIM4#
SABLE,TRIM4#
JADE,TRIM6#
JADE,TRIM6#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-06016-01×7iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF; JZX90..TOUS,TOUV; LX90,SX90..SC199210-199305
BLACK,TRIM4#,6#,8#; BLACK,TRIM4#,8#; BLACK,TRIM6#,8#
main90467-06016-C0×6iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF; JZX90..TOUS,TOUV; LX90,SX90..SC199409-199609
BLACK,TRIM4#; BLACK,TRIM4#,6#; BLACK,TRIM6#,8#
62117ECOVER, COWL SIDE TRIM SERVICE HOLE
BLACK,TRIM4#; BLACK,TRIM4#,6#; BLACK,TRIM6#,8#
SABLE,TRIM4#
JADE,TRIM6#
GRAYISH BLUE,TRIM8#
62117FCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-05015-01iGX90,JZX90,91,LX90,SX90..SLT,SLTG,SUF; JZX90..TOUS,TOUV; JZX93; LX90,SX90..SC199210-199409
BLACK,TRIM4#,6#; BLACK,TRIM4#,6#,8#; BLACK,TRIM4#,8#; BLACK,TRIM6#,8#
BLACK,TRIM4#; BLACK,TRIM4#,6#; BLACK,TRIM6#,8#
62117GCLIP, NO.2(FOR COWL SIDE TRIM)
BLACK,TRIM4#,6#; BLACK,TRIM4#,6#,8#; BLACK,TRIM4#,8#
9046710161
main90467-10161
6 parts on this diagram · 1 diagram in section
MAT & CARPET for Toyota CRESTA
This section contains 6 genuine Toyota parts for the MAT & CARPET system of the Toyota CRESTA. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), COVER, COWL SIDE TRIM SERVICE HOLE, CLIP, NO.1(FOR COWL SIDE TRIM), CLIP, NO.2(FOR COWL SIDE TRIM).
