Toyota CRESTA — MAT & CARPET

58510BMAT, FRONT FLOOR, FRONT

main58510-2A440-04i198808-198810

DARK BLUE,TRIM8#

main58510-2A490-03i199008-199210

MEDIUM GRAY,TRIM1#

main58510-2A490-04i198810-199008

DARK BLUE,TRIM8#

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2A410-02i198808-198810

NEW MAROON,TRIM3#

main58510-2A410-04i198808-198810

DARK BLUE,TRIM8#

main58510-2A410-06i198808-198810

SABLE,TRIM4#

main58510-2A420-02i198808-199210

NEW MAROON,TRIM3#

main58510-2A420-03i199008-199210

MEDIUM GRAY,TRIM1#

main58510-2A420-04i198808-199008

DARK BLUE,TRIM8#

main58510-2A420-06i198808-199210

SABLE,TRIM4#

main58510-2A450-02i198808-199210

NEW MAROON,TRIM3#

main58510-2A450-03i199008-199210

MEDIUM GRAY,TRIM1#

main58510-2A450-04i198808-199008

DARK BLUE,TRIM8#

main58510-2A450-06i198808-199210

SABLE,TRIM4#

main58510-2A500-02i198810-199210

NEW MAROON,TRIM3#

main58510-2A500-03i199008-199210

MEDIUM GRAY,TRIM1#

main58510-2A500-04i198810-199008

DARK BLUE,TRIM8#

main58510-2A500-06i198810-199210

SABLE,TRIM4#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-11025×3i198808-199210

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-11025×3i198808-199210

58540CMAT ASSY, FLOOR, REAR

main58540-22600-04i198808-198810

DARK BLUE,TRIM8#

main58540-22610-03i199008-199210

MEDIUM GRAY,TRIM1#

main58540-22610-04i198810-199008

DARK BLUE,TRIM8#

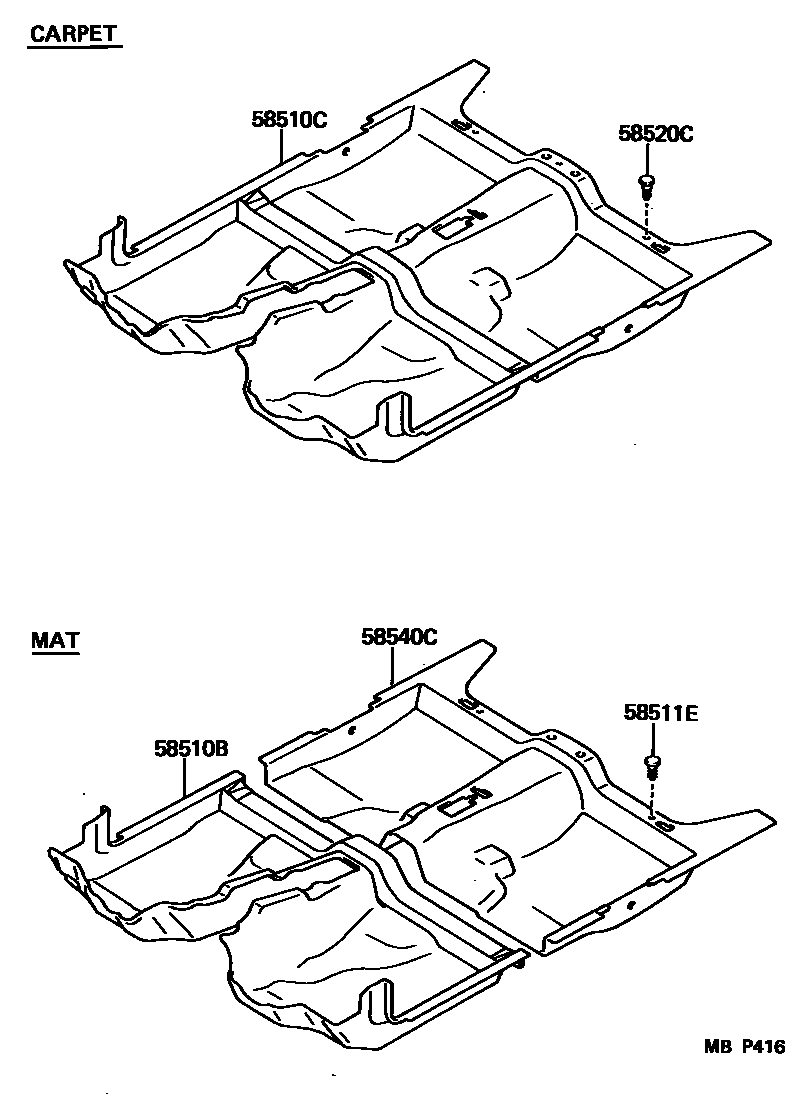

5 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota CRESTA

This section contains 5 genuine Toyota parts for the MAT & CARPET system of the Toyota CRESTA. Key components include: MAT, FRONT FLOOR, FRONT, CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR MAT), CLIP(FOR FRONT FLOOR CARPET), MAT ASSY, FLOOR, REAR.
