Toyota CRESTA — LPG FILTER

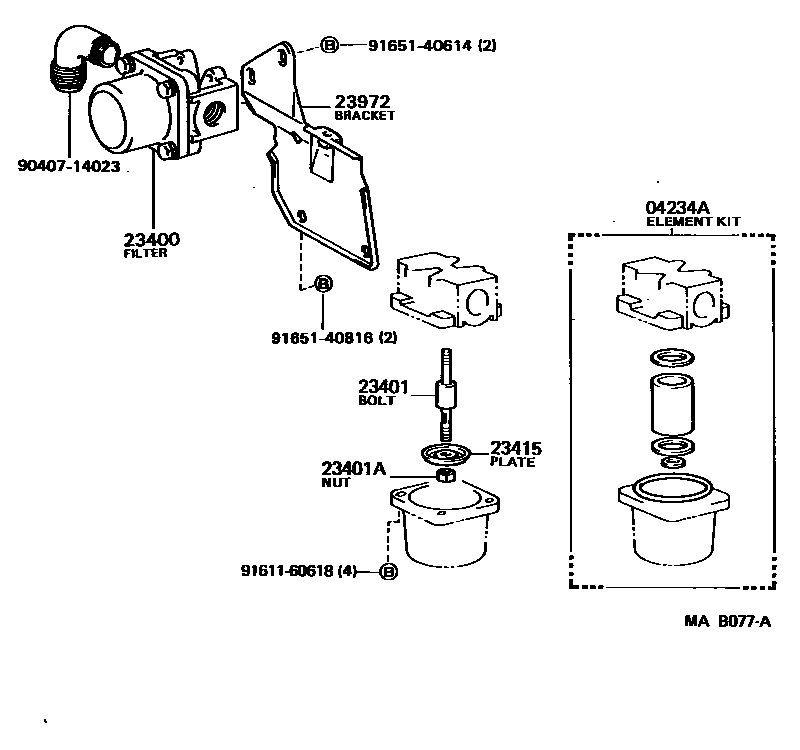

Parts diagram

04234AELEMENT KIT, LPG

main04234-44012i198808-199210

23400FILTER ASSY, LPG

main23400-40024i198808-199210

23401BOLT SUB-ASSY, STUD(FOR LPG FILTER)

main23401-40020i198808-199210

23401ANUT(FOR LPG FILTER STUD BOLT SET)

main94115-40500i198808-199210

23415PLATE, ELEMENT

main23415-40010i198808-199210

23972BRACKET, FILTER & SOLENOID VALVE

main23972-72040i198808-199210

9040714023

main90407-14023

9161160618

main91611-60618

9165140614

main91651-40614

9165140816

main91651-40816

10 parts on this diagram · 1 diagram in section
