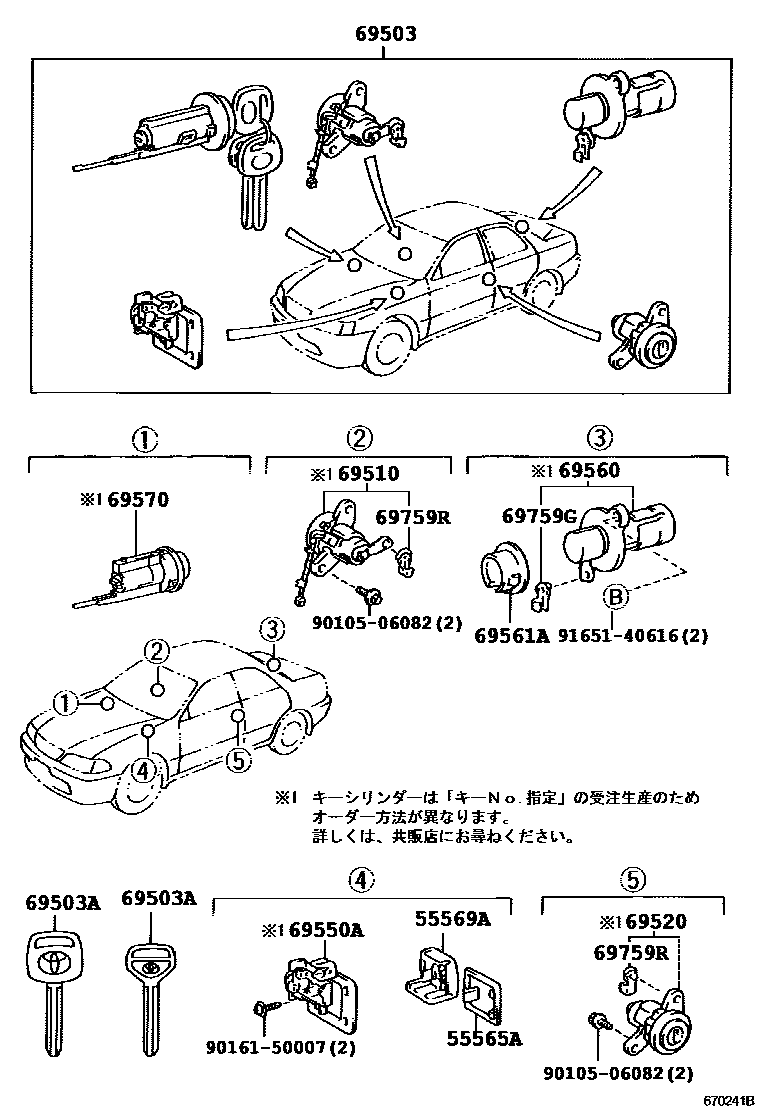

Toyota CRESTA — LOCK CYLINDER SET
55565AHANDLE, GLOVE COMPARTMENT DOOR LOCK
DK.BLUE GRAY,TRIM1#
BLACK,TRIM2#
ORCHID,TRIM4#
SAGE,TRIM6#
55569ACOVER, GLOVE COMPARTMENT DOOR LOCK
DK.BLUE GRAY,TRIM1#
BLACK,TRIM2#
ORCHID,TRIM4#
SAGE,TRIM6#
69503CYLINDER SET, LOCK
69503AKEY, BLANK
69510CYLINDER ASSY, FRONT DOOR LOCK, RH
69520CYLINDER ASSY, FRONT DOOR LOCK, LH
69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69560CYLINDER ASSY, BACK DOOR LOCK
69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
SUPER WHITE 2,040
WHITE PM.,057 ,2CF
SILVER ME,199
BLACK,202
WINE RED MC.,3L4
DK.GREEN MC.P.I.O.,2FF ,6N9
GRAYISH GREEN M.M.,6N0
DK.BLUE MC.,8L4
69570CYLINDER ASSY, IGNITION SWITCH LOCK
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
9010506082
main90105-06082
9016150007
main90161-50007
9165140616
main91651-40616
15 parts on this diagram · 2 diagrams in section
LOCK CYLINDER SET for Toyota CRESTA
This section contains 16 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CRESTA. Key components include: HANDLE, GLOVE COMPARTMENT DOOR LOCK, COVER, GLOVE COMPARTMENT DOOR LOCK, CYLINDER SET, LOCK, KEY, BLANK, CYLINDER ASSY, FRONT DOOR LOCK, RH.
