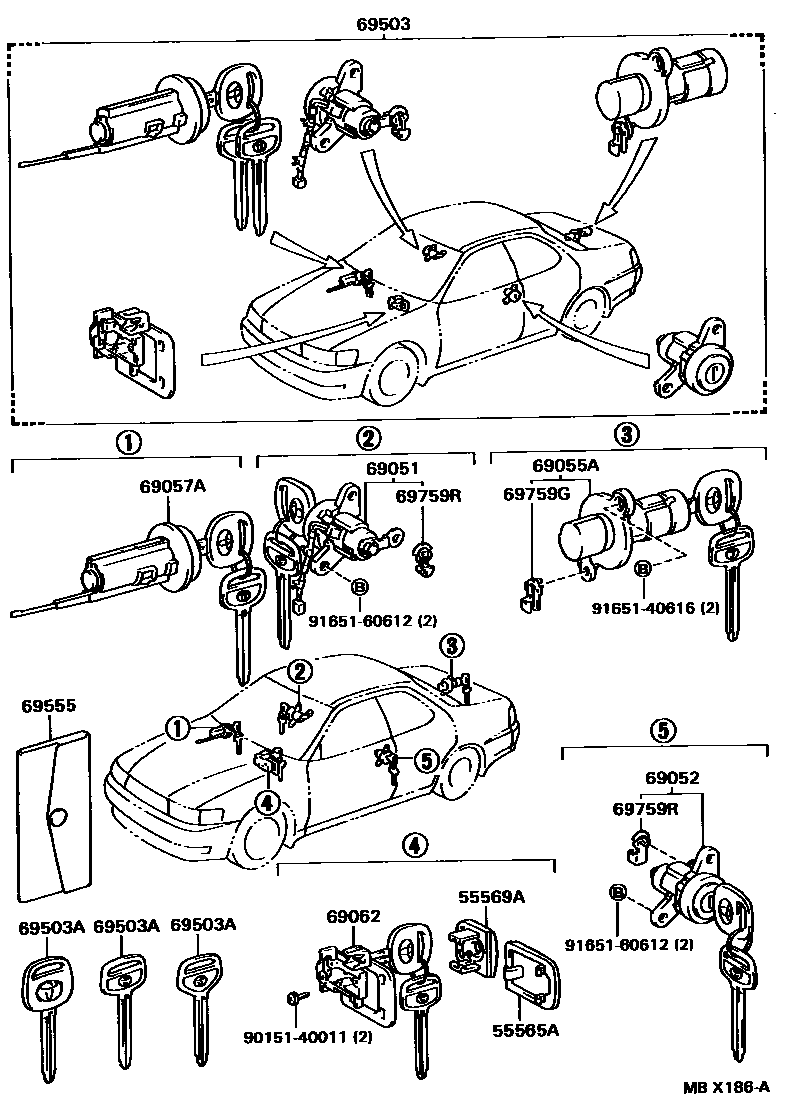

Toyota CRESTA — LOCK CYLINDER SET

55565AHANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22030-E0i199210-199609

SABLE,TRIM4#

main55565-22030-G0i199210-199609

JADE,TRIM6#

main55565-22030-J0i199409-199609

GRAYISH BLUE,TRIM8#

55569ACOVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22040-E0i199210-199609

SABLE,TRIM4#

main55569-22040-G0i199210-199609

JADE,TRIM6#

main55569-22040-J0i199409-199609

GRAYISH BLUE,TRIM8#

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-22290i199409-199609

main69051-22330i199210-199409

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-22290i199210-199609

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-22360i199210-199609

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-22190i199210-199609

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-22150i199210-199609

69503CYLINDER SET, LOCK

main69005-2A080i199210-199409

main69005-2A090i199210-199409

69503AKEY, BLANK

main90999-00192i199409-199609

main90999-00193i199210-199409

main90999-00208i199210-199609

69555COVER, KEY

main69555-17020i199210-199609

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080i199210-199609

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-24100i199210-199609

ORANGE

main69759-24110i199210-199609

PINK

9015140011

main90151-40011

9165140616

main91651-40616

9165160612

main91651-60612

15 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota CRESTA

This section contains 15 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CRESTA. Key components include: HANDLE, GLOVE COMPARTMENT DOOR LOCK, COVER, GLOVE COMPARTMENT DOOR LOCK, CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK.
