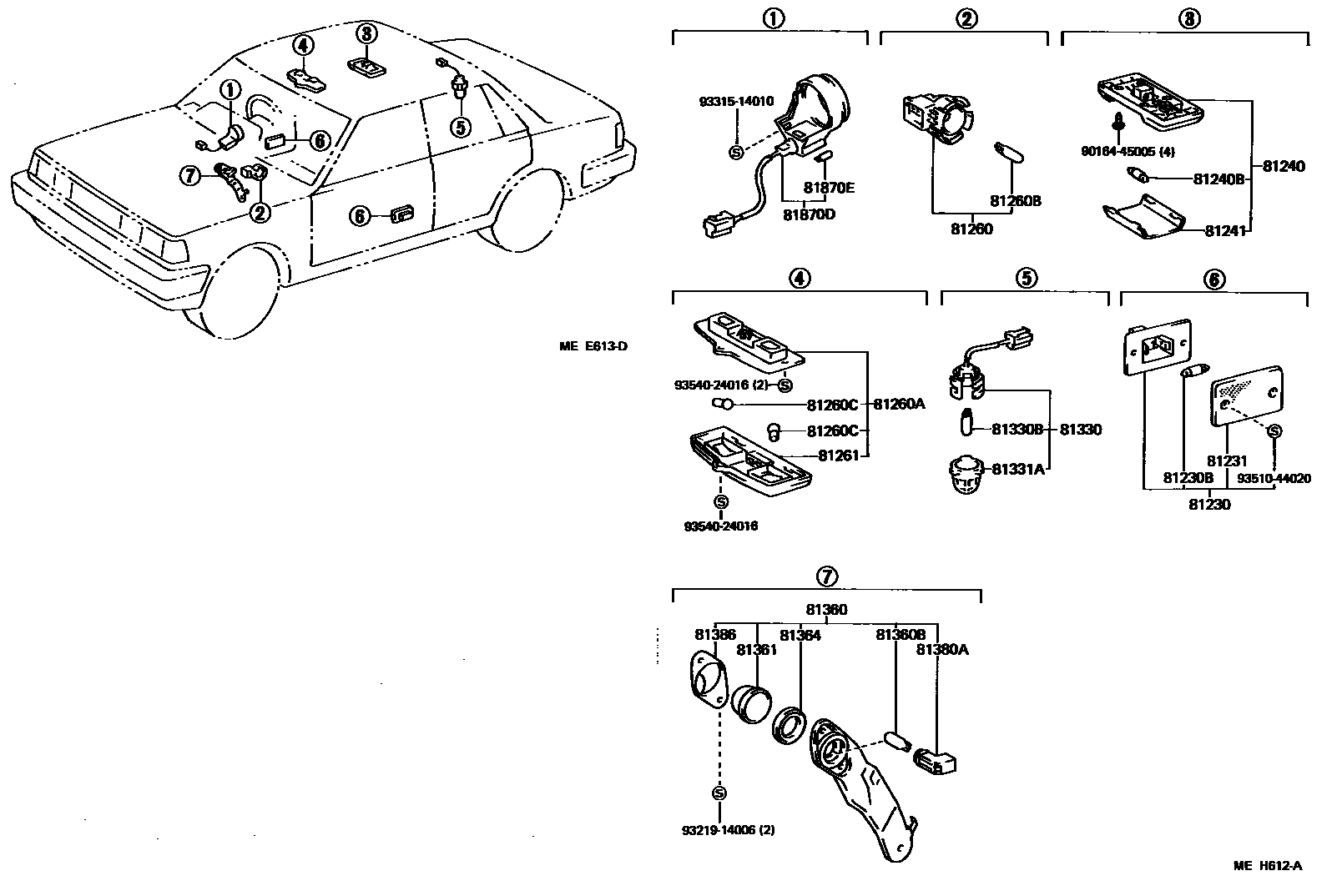

Toyota CRESTA — INTERIOR LAMP
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
BEIGE,DARK BEIGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
BEIGE,DARK BEIGE,TRIM4#
81260BBULB(FOR GLOVE BOX)
81260CBULB(FOR MAP LAMP)
81261LENS AND COVER, MAP LAMP
MAROON,MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM3#,4#
BEIGE,DARK BEIGE,TRIM4#
BLUE,DARK BLUE,TRIM8#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81331ACOVER, LUGGAGE COMPARTMENT LAMP
81360LAMP ASSY, STEP OR SPOT
81360BBULB, STEP OR SPOT LAMP
81361LENS, STEP LAMP
81364GASKET, STEP LAMP
81380ASOCKET, PLUG
81386COVER, STEP LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
9016445005
main90164-45005
9321914006
main93219-14006
9331514010
main93315-14010
9351044020
main93510-44020
9354024016
main93540-24016
27 parts on this diagram · 2 diagrams in section
INTERIOR LAMP for Toyota CRESTA
This section contains 27 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CRESTA. Key components include: LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1.
