Toyota CRESTA — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
BLUE,BLUE,TRIM8#
IVORY,IVORY,TRIM2#,3#,4#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
IVORY,IVORY,TRIM2#,3#,4#
BLUE,BLUE,TRIM8#
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81248COVER, ROOM LAMP, NO.1
BLUE,BLUE,TRIM8#
IVORY,IVORY,TRIM2#,3#,4#
BLUE,BLUE,TRIM8#
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
BLUE,BLUE,TRIM8#
IVORY,IVORY,TRIM2#,4#
BLUE,BLUE,TRIM8#
IVORY,*30,IVORY,TRIM3#,4#; IVORY,IVORY,TRIM3#,4#
BLUE,*30,BLUE,TRIM8#; BLUE,BLUE,TRIM8#
IVORY,IVORY,TRIM3#,4#
BLUE,BLUE,TRIM8#
81260BBULB(FOR GLOVE BOX)
81260CBULB(FOR MAP LAMP)
81261LENS AND COVER, MAP LAMP
IVORY,IVORY,TRIM3#,4#
BLUE,BLUE,TRIM8#
BLUE,BLUE,TRIM8#
IVORY,*30,IVORY,TRIM3#,4#; IVORY,IVORY,TRIM3#,4#
BLUE,*30,BLUE,TRIM8#; BLUE,BLUE,TRIM8#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81331ACOVER, LUGGAGE COMPARTMENT LAMP
9016445005
main90164-45005
9351013008
main93510-13008
9354024016
main93540-24016

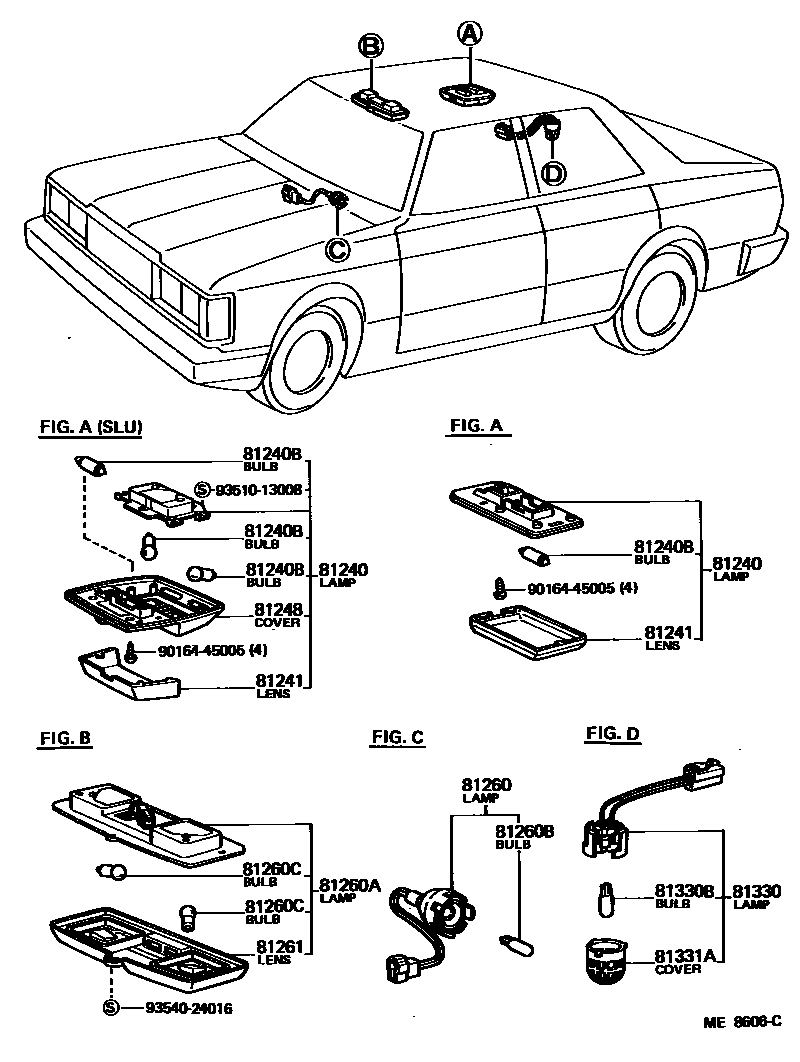

15 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota CRESTA
This section contains 15 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CRESTA. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, COVER, ROOM LAMP, NO.1, LAMP ASSY, GLOVE BOX.
