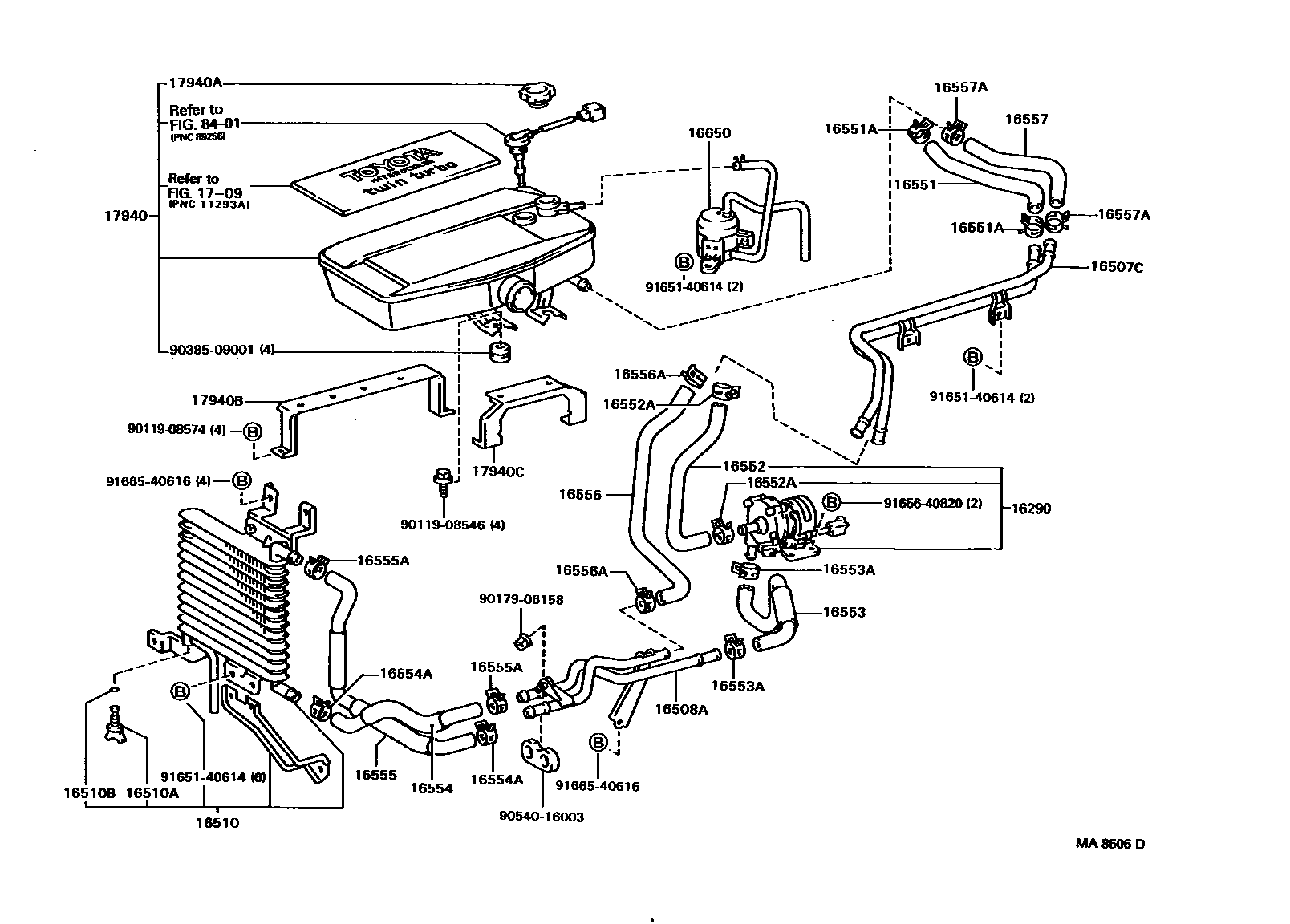

Toyota CRESTA — INTERCOOLER & SUB RADIATOR

16290PUMP ASSY, WATER W/MOTOR & BRACKET

main16290-70010198510-198808

16507CPIPE SUB-ASSY, SUB-RADIATOR, NO.1

main16507-88340198510-198808

16508APIPE SUB-ASSY, SUB-RADIATOR, NO.2

main16508-70010198510-198608

main16508-70011198608-198808

16510SUB-RADIATOR ASSY

main16510-70010198510-198808

16510APLUG, DRAIN COCK(FOR SUB-RADIATOR)

main90910-09054198510-198808

16510BRING, O(FOR SUB-RADIATOR DRAIN COCK PLUG)

main96711-19007198510-198808

16551HOSE, SUB-RADIATOR, NO.1

main16551-88340198510-198808

16551ACLIP, SUB-RADIATOR HOSE, NO.1

main90467-22003198510-198808

16552HOSE, SUB-RADIATOR, NO.2

main16552-70020198510-198808

16552ACLIP, SUB-RADIATOR HOSE, NO.2

main90467-22003198510-198808

16553HOSE, SUB-RADIATOR, NO.3

main16553-70010198510-198808

16553ACLIP, SUB-RADIATOR HOSE, NO.3

main90467-22003198510-198808

16554HOSE, SUB-RADIATOR, NO.4

main16554-70010198510-198808

16554ACLIP, SUB-RADIATOR HOSE, NO.4

main90467-22003198510-198808

16555HOSE, SUB-RADIATOR, NO.5

main16555-70010198510-198608

main16555-70011198608-198808

16555ACLIP, SUB-RADIATOR HOSE, NO.5

main90467-22003198510-198808

16556HOSE, SUB-RADIATOR, NO.6

main16556-70020198510-198808

16556ACLIP, SUB-RADIATOR HOSE, NO.6

main90467-22003198510-198808

16557HOSE, SUB-RADIATOR, NO.7

main16557-88340198510-198808

16557ACLIP, SUB-RADIATOR HOSE, NO.7

main90467-22003198510-198808

16650TANK ASSY, RESERVE(FOR INTERCOOLER)

main16650-88340198510-198808

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

17940INTERCOOLER ASSY

main17940-70010198510-198808

17940ACAP SUB-ASSY, INTERCOOLER

main16401-70010198510-198808

17940BBRACKET, NO.1(FOR INTERCOOLER)

main17872-88340198510-198808

17940CBRACKET, NO.2(FOR INTERCOOLER)

main17873-88340198510-198808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908546

main90119-08546

9011908574

main90119-08574

9017906158

main90179-06158

9038509001

main90385-09001

9054016003

main90540-16003

9165140614

main91651-40614

9165640820

main91656-40820

9166540616

main91665-40616

35 parts on this diagram · 1 diagram in section

INTERCOOLER & SUB RADIATOR for Toyota CRESTA

This section contains 35 genuine Toyota parts for the INTERCOOLER & SUB RADIATOR system of the Toyota CRESTA. Key components include: PUMP ASSY, WATER W/MOTOR & BRACKET, PIPE SUB-ASSY, SUB-RADIATOR, NO.1, PIPE SUB-ASSY, SUB-RADIATOR, NO.2, SUB-RADIATOR ASSY, PLUG, DRAIN COCK(FOR SUB-RADIATOR).
