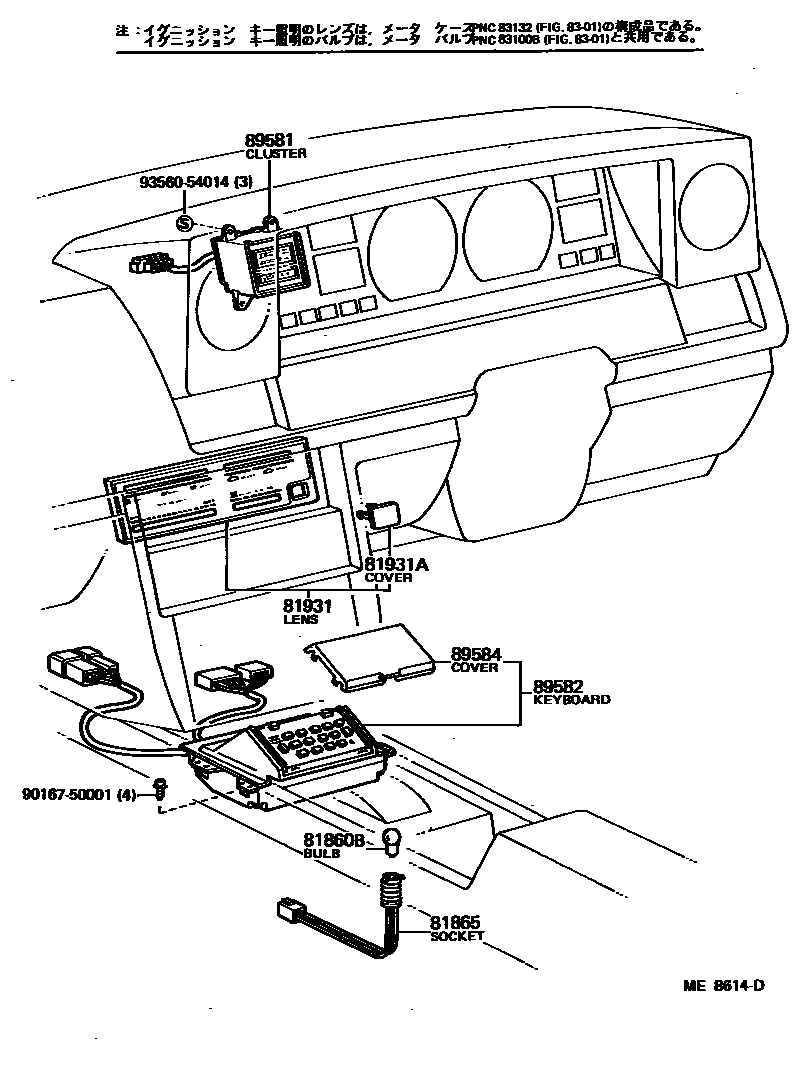

Toyota CRESTA — INDICATOR

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11034iGX5#,MX51,TX50..ATM198003-198208

main99132-12034iGX61,LX60,MX61,SX60..4FC198208-198407

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-14010iGX5#,MX51,TX50..ATM198003-198208

main35906-22040iGX61,LX60,MX61,SX60..4FC198208-198407

81931LENS, HEATER CONTROL INDICATOR

main55519-22090iGX61,MX61..SLU198208-198407

W/AUTOMATIC AIR CONDITIONER

main81940-22010iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

main81940-22011iGX61,LX60,MX61,SX60..CTM,SCM,SDX,STR198208-198407

main81940-22020iGX5#,MX51198003-198208

W/AUTOMATIC AIR CONDITIONER

main81940-22030iGX61,MX61..SDX,STR198208-198407

W/AUTOMATIC AIR CONDITIONER

81931ACOVER, COOLER SWITCH HOLE

main55538-22020iGX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

89581CLUSTER, CRUISE PILOT COMPUTER DISPLAY

main89581-22010iGX51..SLU198003-198009

main89581-22020iMX51..SLU198110-198208

main89581-22021iGX61..TWC198208-198407

W/*DS

main89581-22060iGX51..SLU198009-198208

main89581-22061iGX61..SLU..EFI198208-198407

W/*DS

89582KEYBOARD, CRUISE PILOT COMPUTER

main89582-22010iGX51,MX51..SLU198003-198208

main89582-22011iGX61..SLU198208-198407

89584COVER, CRUISE PILOT COMPUTER KEYBOARD

main89584-22010iGX61..SLU198208-198407

9016750001

main90167-50001

9356054014

main93560-54014

9 parts on this diagram · 1 diagram in section
