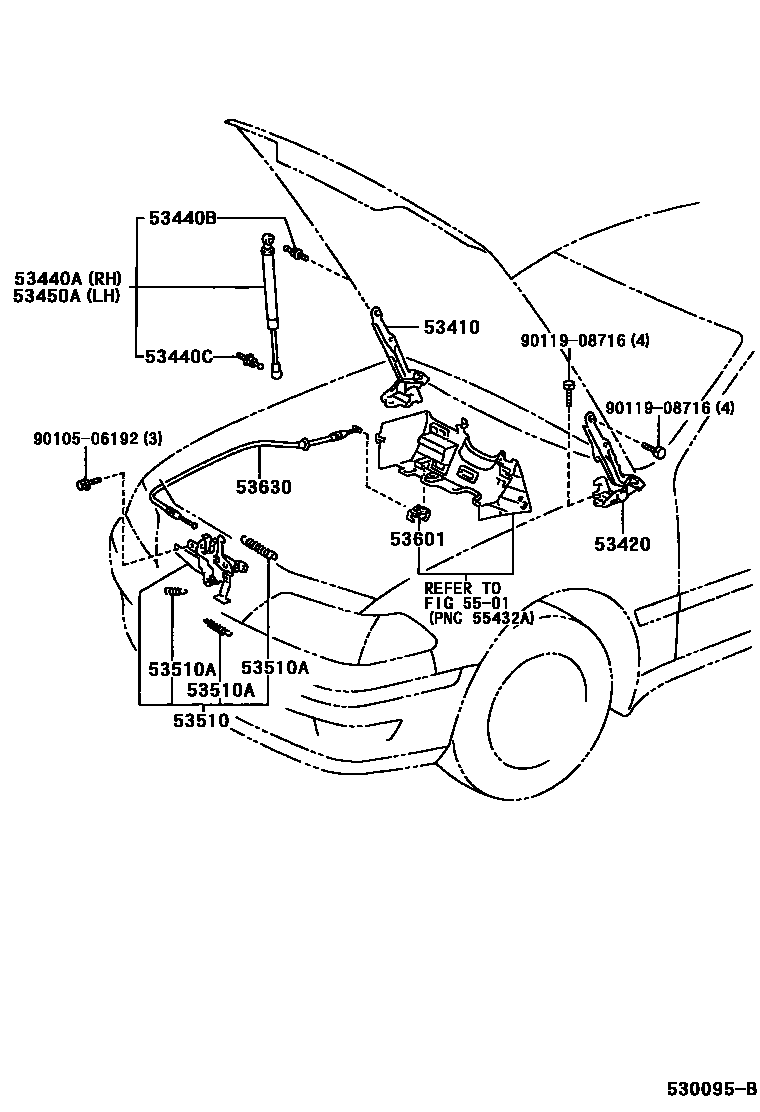

Toyota CRESTA — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-22110i199609-200106

53420HINGE ASSY, HOOD, LH

main53420-22110i199609-200106

53440ASUPPORT ASSY, HOOD, RH

main53440-29095i199609-199808

main53440-29105i199808-200106

53440BBOLT, HOOD SUPPORT, NO.1

main68961-24030×2i199609-200106

53440CBOLT, HOOD SUPPORT, NO.2

main68961-24030×2i199609-200106

53450ASUPPORT ASSY, HOOD, LH

main53440-29095i199609-199808

main53440-29105i199808-200106

53510LOCK ASSY, HOOD

main53510-22350i199609-199802

main53510-22360i199802-200106

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09057i199609-200106

main90506-12067i199609-200106

main90506-20071i199609-200106

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-22010-B0i199609-199808

DK.BLUE GRAY,TRIM1#

main53611-22010-C0i199808-200106

BLACK,TRIM2#

main53611-22010-E0i199609-200106

ORCHID,TRIM4#

main53611-22010-G0i199609-200106

SAGE,TRIM6#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-22230i199609-200106

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

9010506192

main90105-06192

9011908716

main90119-08716

13 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota CRESTA

This section contains 13 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota CRESTA. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, RH, BOLT, HOOD SUPPORT, NO.1, BOLT, HOOD SUPPORT, NO.2.
