Toyota CRESTA — HEATING & AIR CONDITIONING - SET

Parts diagram

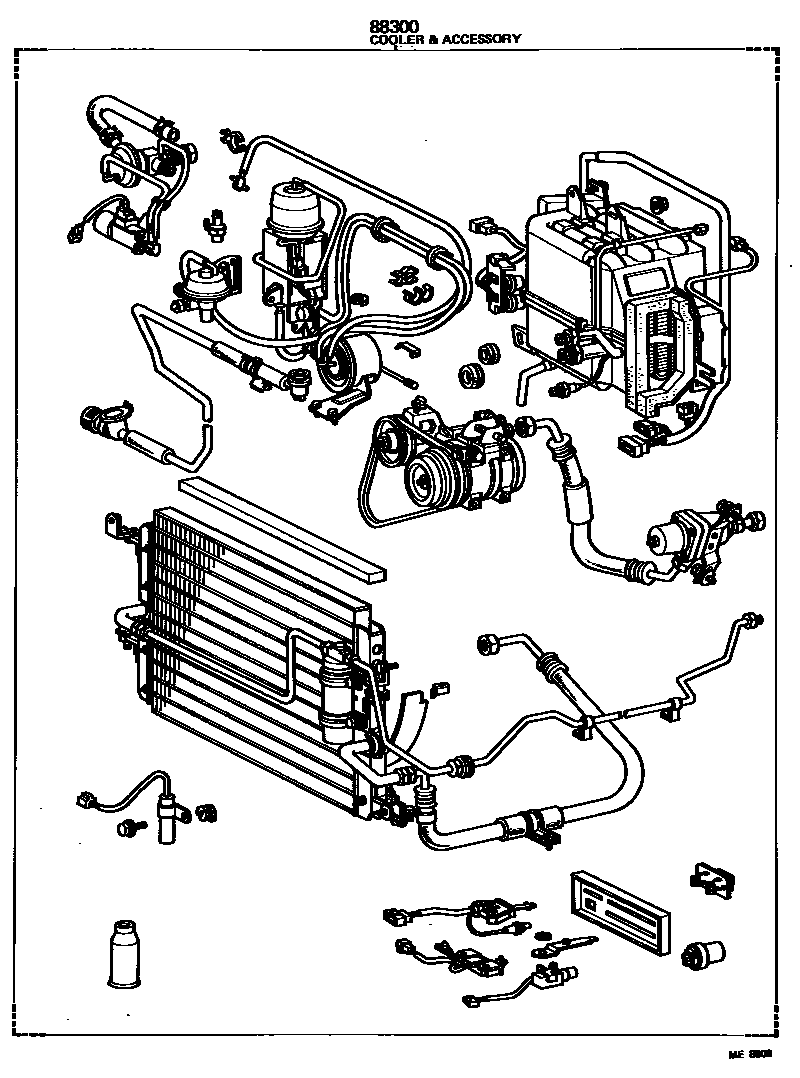

88300COOLER & ACCESSORY ASSY

main88300-22330i198003-198109

AUTOMATIC AIR CONDITIONER

main88300-22331i198109-198208

AUTOMATIC AIR CONDITIONER

main88300-22340i198003-198109

main88300-22341i198109-198208

main88300-22350i198003-198207

main88300-22351i198207-198208

main88300-22390i198003-198104

main88300-22391i198207-198208

W/POWER STEERING

main88300-22550i198110-198208

main88300-22570i198110-198208

AUTOMATIC AIR CONDITIONER

main88300-22580i198208-198308

main88300-22581i198308-198407

main88300-22640i198208-198308

main88300-22641i198308-198407

main88300-22680i198208-198407

main88300-22850i198308-198407

1 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - SET for Toyota CRESTA

This section contains 2 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota CRESTA. Key components include: COOLER & ACCESSORY ASSY, ACCESSORY ASSY, AUTOMATIC AIR CONDITIONER.
