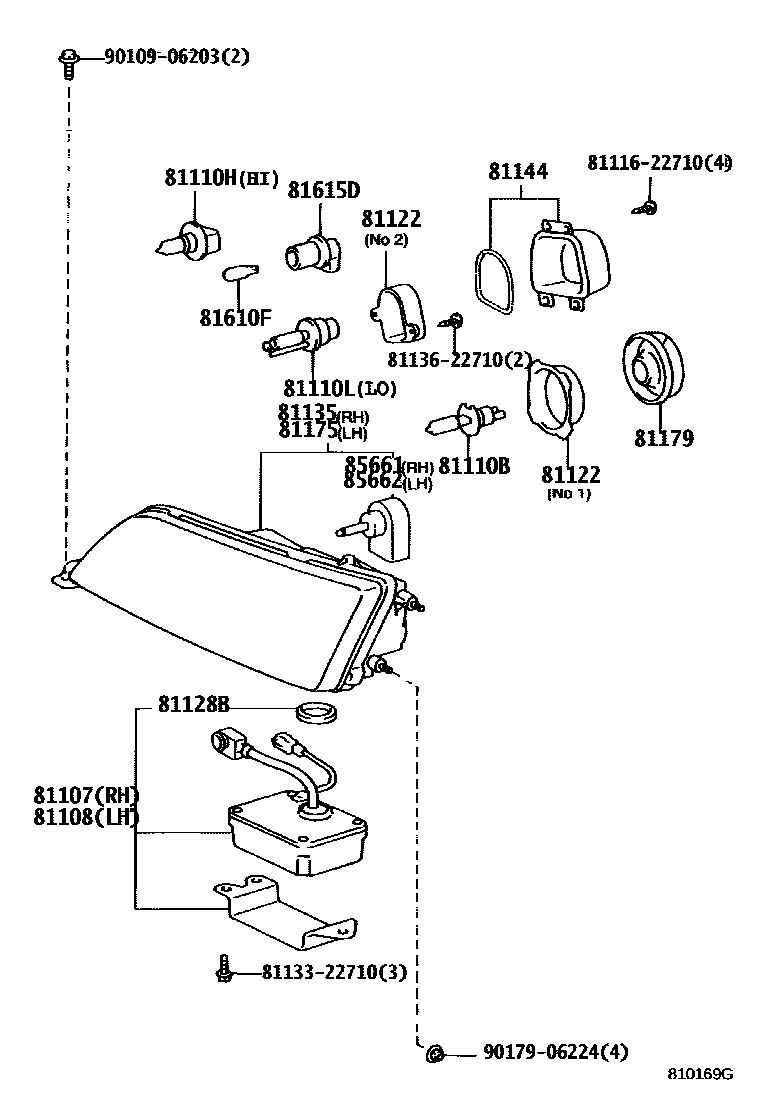

Toyota CRESTA — HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110BBULB(FOR HEADLAMP, NO.1)
81110HBULB, HEADLAMP, NO.3
81110LBULB, DISCHARGE HEADLAMP
81122HOLDER, HEADLAMP
81128BPACKING, HEADLAMP (FOR BALLAST)
81135UNIT ASSY, HEADLAMP, RH
81144COVER, HEADLAMP, NO.1
81175UNIT ASSY, HEADLAMP, LH
81179COVER, HEADLAMP SOCKET
81610FBULB(FOR CLEARANCE LAMP)
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
8111622710COVER, SEALED BEAM UNIT
main81116-22710
8113322710UNIT ASSY, FOG, RH
main81133-22710
8113622710PROTECTOR, HEADLAMP, NO.1 RH
main81136-22710
9010906203
main90109-06203
9017906224
main90179-06224
20 parts on this diagram · 2 diagrams in section
HEADLAMP for Toyota CRESTA
This section contains 22 genuine Toyota parts for the HEADLAMP system of the Toyota CRESTA. Key components include: COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, BULB(FOR HEADLAMP, NO.1), BULB, HEADLAMP, NO.3, BULB, DISCHARGE HEADLAMP.
