Toyota CRESTA — HEADLAMP

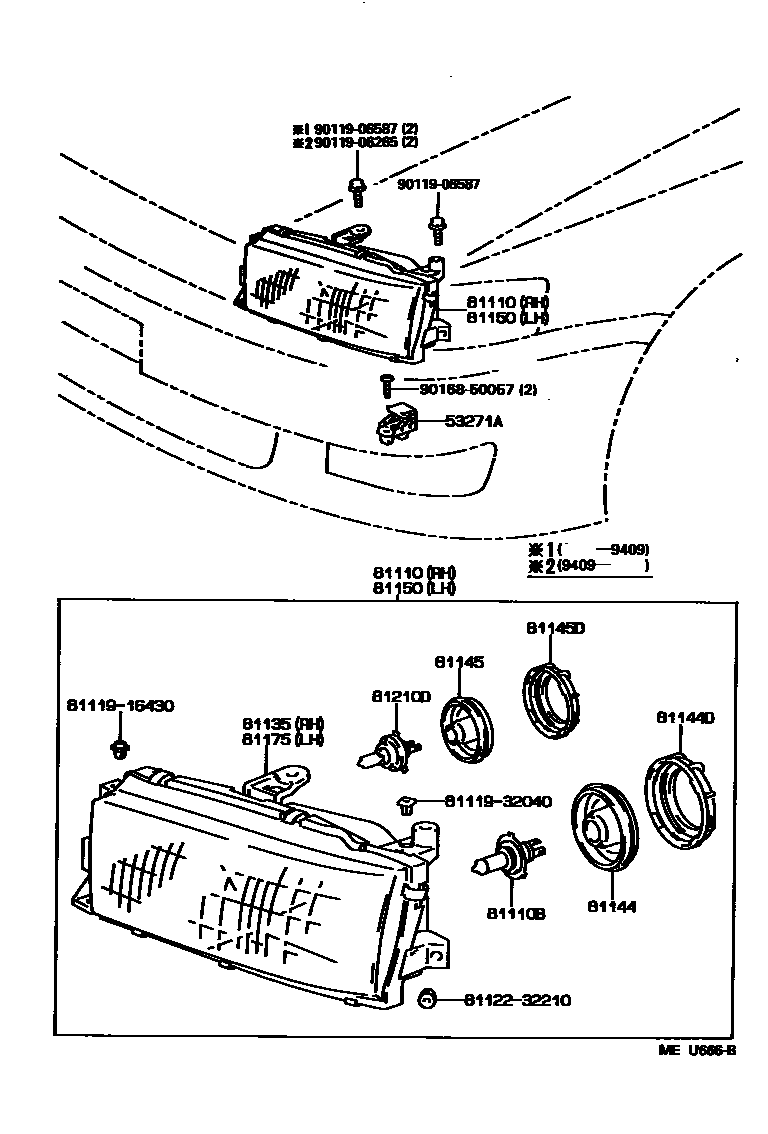

Parts diagram

53271ABRACKET, HEADLAMP MOUNTING

main53271-12040×2i199210-199409

main53271-12060×2i199409-199609

81110HEADLAMP ASSY, RH

main81110-22670i199210-199301

main81110-22671i199301-199311

main81110-22672i199311-199409

main81110-22673i199409-199609

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i199210-199404

main90981-22002×2i199404-199609

81135UNIT ASSY, HEADLAMP, RH

main81130-22670i199210-199301

main81130-22671i199301-199311

main81130-22672i199311-199409

main81130-22673i199409-199609

81144COVER, HEADLAMP, NO.1

main81179-32310×2i199210-199609

81144DCAP, HEADLAMP LOCKING

main81122-32310×2i199210-199609

81145COVER, HEADLAMP, NO.2

main81139-32040×2i199210-199609

81145DCAP, HEADLAMP LOCKING NO.2

main81122-32040×2i199210-199609

81150HEADLAMP ASSY, LH

main81150-22670i199210-199301

main81150-22671i199301-199311

main81150-22672i199311-199409

main81150-22673i199409-199609

81175UNIT ASSY, HEADLAMP, LH

main81170-22670i199210-199301

main81170-22671i199301-199311

main81170-22672i199311-199409

main81170-22673i199409-199609

81210DBULB, FOG LAMP

main90981-13039×2i199210-199609

8111916430SCREW, HEADLAMP

main81119-16430

8111932040SCREW, HEADLAMP

main81119-32040

8112232210HOLDER, HEADLAMP

main81122-32210

9011906265

main90119-06265

9011906587

main90119-06587

9016850057

main90168-50057

17 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota CRESTA

This section contains 17 genuine Toyota parts for the HEADLAMP system of the Toyota CRESTA. Key components include: BRACKET, HEADLAMP MOUNTING, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP, NO.1.
